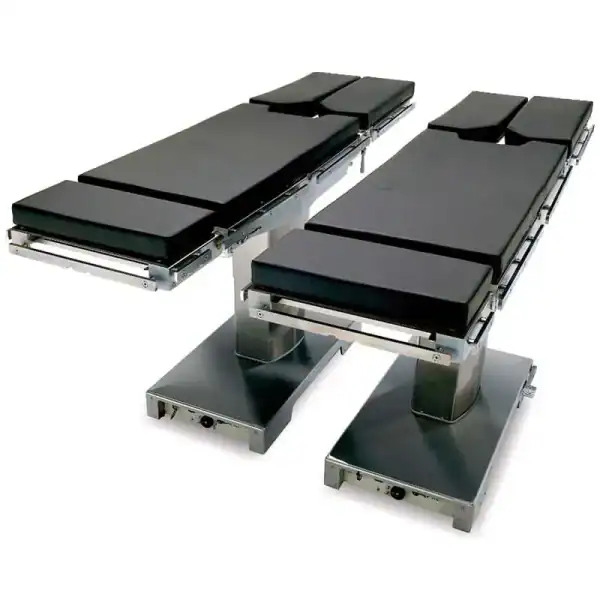

NUVO V800 Surgical Table

Ships in typically 3-4 weeks

Brand New
SKU VM-E21M56101 Category

The NUVO V800 is a high-capacity surgical table designed for versatility across all specialties, including orthopedics and cardiology. It features an 800 lb weight capacity, 12.2 inch longitudinal slide for C-arm access, and a low-profile base. Includes self-diagnostics, a kidney bridge, and a removable split leg section.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

NUVO V800 Surgical Table. For nearly 20 years, our sole focus at Nuvo has been to provide the medical field with the highest quality, most cost-effective surgical lights, tables, equipment management systems, video integration, and other products for hospital operating rooms. As a result, this focus helps make a real difference in the care of your patients.

Additionally, the NUVO V800 features an exceptionally sturdy, low-profile base that helps ensure maximum surgeon comfort to reduce fatigue during long procedures. Furthermore, it offers unprecedented C-arm access, self-diagnosis with an Instant Error Code display, and a control system that automatically prevents sectional conflicts.

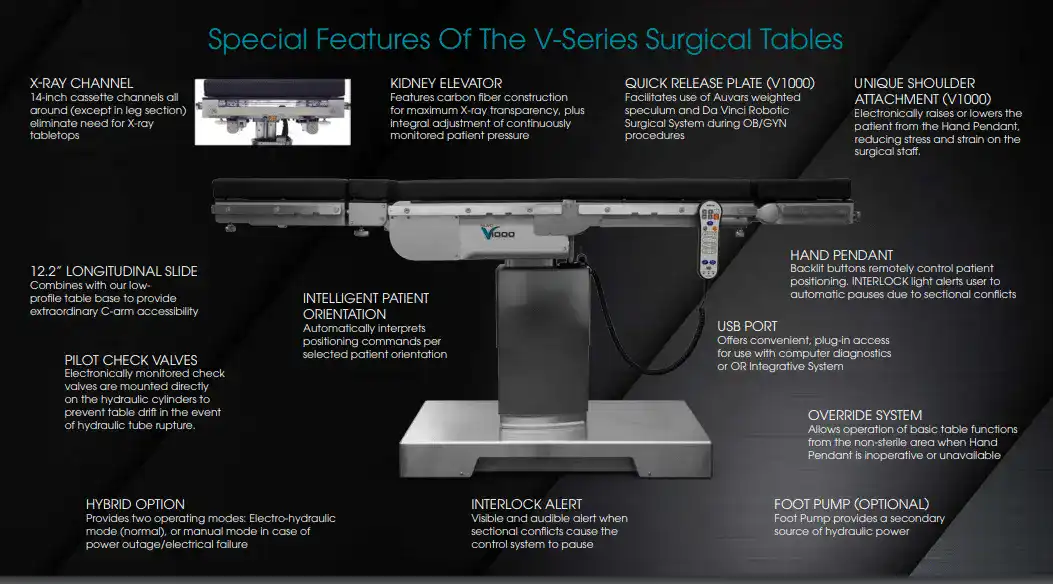

NUVO V800 Surgical Table Key Features

  • 14″ X-Ray Cassette Channels
  • Carbon Fiber Kidney Elevator
  • 12.2″ Longitudinal Slide

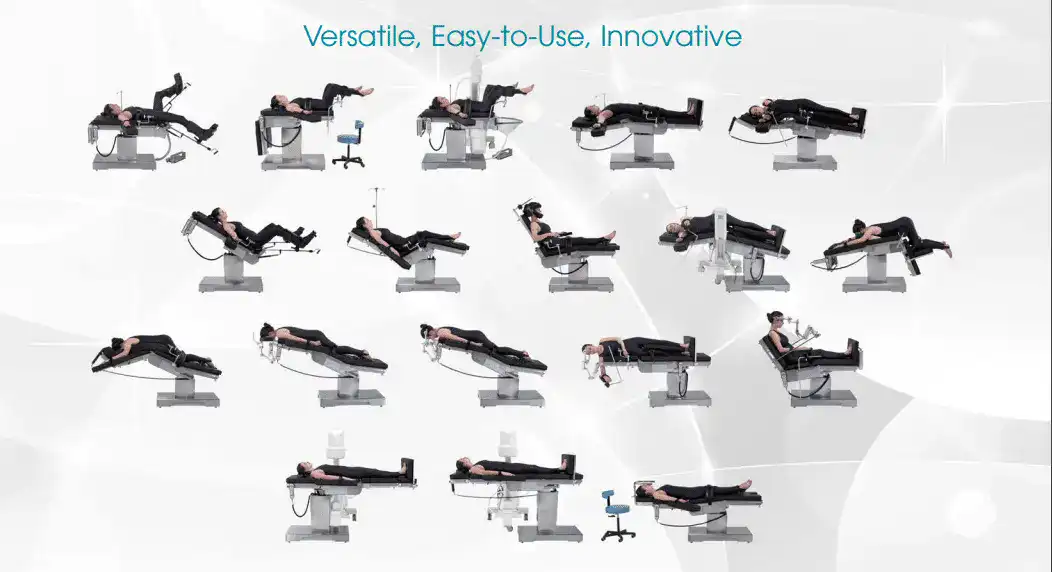

  • Intelligent Patient Orientation
  • Hybrid Electro-Hydraulic/Manual Mode

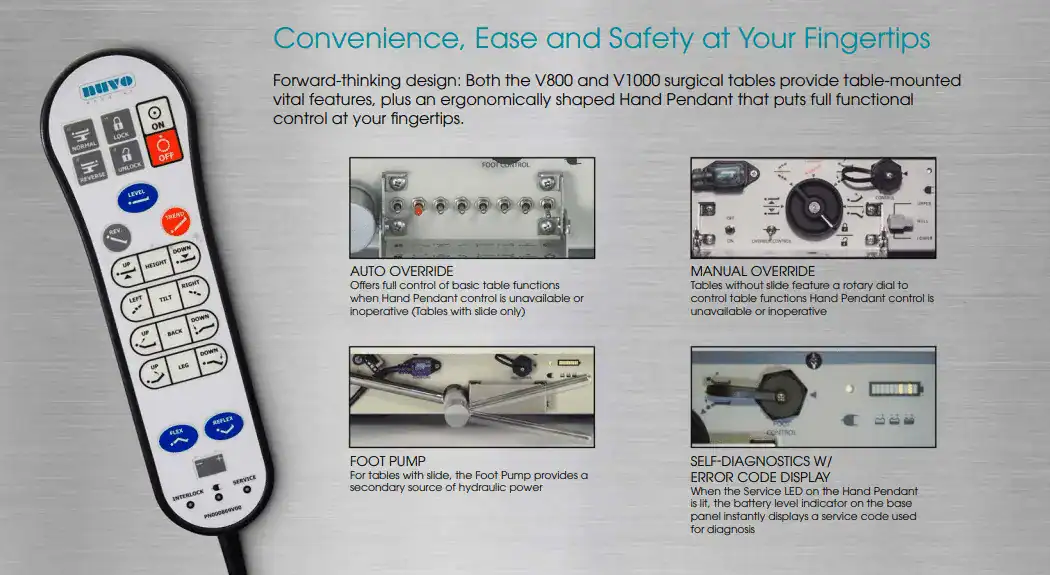

  • Backlit Hand Pendant



Overall, these features work together to give surgical teams precise control and reliable imaging access, with 14 inches of coverage supporting extended visibility throughout the table. Moreover, pilot check valves and an interlock alert system add extra safety during use. Additionally, the override system and USB port offer added flexibility for diagnostics and non-sterile area operation. In addition, see tabs for additional information on the NUVO V800.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Surgical Tables? Click here to view our New and Refurbished Surgical Tables.

Do you need replacement pads for your surgical tables? Click here to view our Surgical Table Replacement Pads.

Additional information

Brand

Nuvo

Condition

New

  • 800 lb. Weight Capacity
  • Removable, Split Leg Section
  • Kidney Bridge
  • Sliding Top
  • Reverse Orientation
  • Slide Option
  • Hybrid Option
  • Override Controls
  • Perineal Cutout
  • Table Leveling
  • Max. Weight Capacity: 800 lbs (363 kg)
  • Height: 26.8 – 44 in (68 – 112 cm)
  • Slide: 12.2 in (31cm)
  • Lateral Tilt: 20°
  • Trendelenburg: 30°
  • Reverse Trendelenburg: 30°
  • Back Section: 80° up or 50° down
  • Leg Section: 30° up or 90° down; 180° open to the le and right
  • Head Section: 90° up or 45° down
  • Kidney Elevator Elevation: 0 ~ 4.7 in (12cm)
  • Flex: Maximum of 25° down
  • Reflex: Maximum of 30° up

Battery Specifications:

  • Main Battery Set: 24V, 14 Ah (Battery Specification: 12V/14Ah*2, per each table)
  • Sub Battery Set: 24V, 2.3 Ah (Battery Specification: 12V/2.3Ah*2, for B2AV1000SKP only)
  • Optional C-LiFePO4 Battery Pack: 17.4 Ah (Battery Specification: 24V/17.4Ah*1, per table)

NUVO_V-Series Table Brochure (click to view)

Unsure which model or features are best suited to your operating theater? Here at Venture Medical, we have a large selection of New and Completely Refurbished Operating Tables.  Choose from Surgical Tables for Specific Operations, Weight Supported Models, Slope, Tilt, Lateral Tilt, Radiolucent Table Tops, and more.

Contact Us Today for Questions and Available Options that are best suited to Fit Your Specific Needs and Budget!
