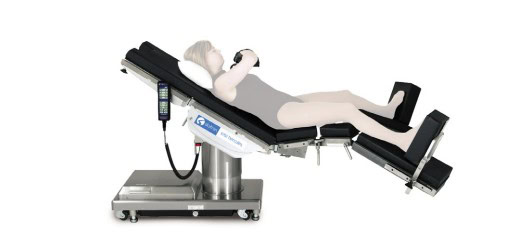

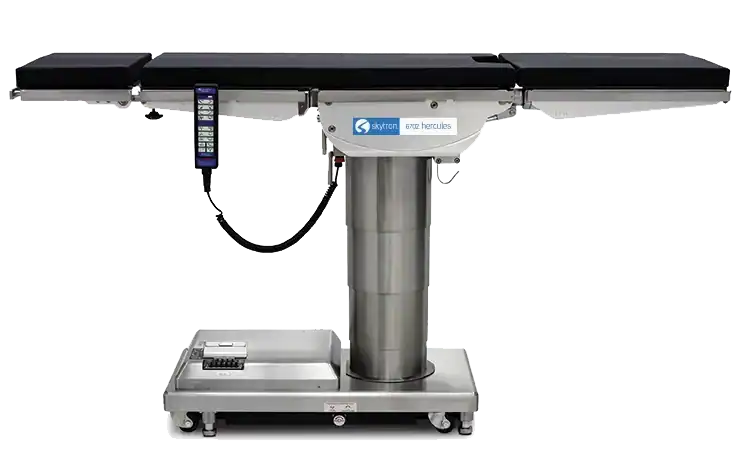

Skytron 6702 Hercules Surgical Table – Refurbished

Ships in typically 3-4 weeks

Refurbished
SKU VM-E21M72113 Category

The refurbished Skytron 6702 Hercules is a premier bariatric surgical table featuring a 1,200 lb lift capacity and 210° top rotation. Professionally restored for safety and efficiency, it offers superior imaging access and 30° lateral tilt, providing a versatile, cost-effective solution for demanding operating rooms.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

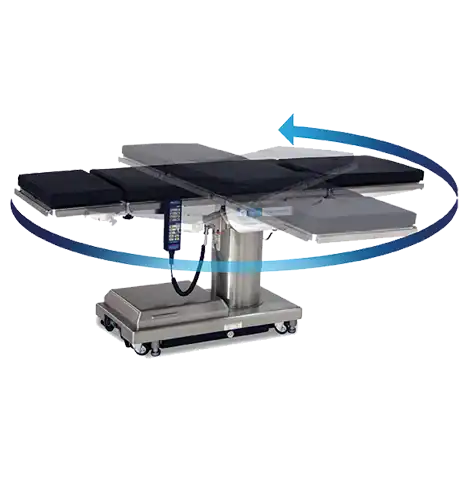

Skytron 6702 Hercules Surgical Table – Refurbished. The Skytron 6702 Hercules Surgical Table is the strongest surgical table on the market with an impressive 1,200 lb lift capacity. Accordingly, this makes it ideal for bariatric surgeries and complex procedures. Additionally, its 210° top rotation enhances surgical access without repositioning the patient. As a result, this feature improves patient safety and gives every member of the surgical team better access.

With its rotating tabletop, the 6702 Hercules simplifies imaging access at both the head and foot ends. Furthermore, the low-profile base stays clear of imaging equipment like the C-arm. Consequently, this design reduces setup time and increases surgical efficiency. As a result, operating rooms can handle more specialties without extra effort.

Skytron 6702 Hercules Surgical Table Specifications

  • 1,200 lb Lift Capacity
  • 1,000 lb Articulation Capacity
  • 210° Top Rotation
  • Electro-Hydraulic Movements
  • Low-Profile, C-Arm Compatible Base



Overall, these features work together to boost performance, workflow, and long-term value in any surgical environment. Please see the tabs for additional information on the Skytron 6702.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Surgical Tables? Click here to view our New and Refurbished Surgical Tables.

Do you need replacement pads for your surgical tables? Click here to view our Surgical Table Replacement Pads.

Additional information

Condition

Refurbished

Brand

Skytron

  • 210° top rotation
  • 1,200 lb lift and 1,000 lb articulation weight capacity
  • Removable back and leg sections simplify accessory setup
  • Power beach chair positioner allows for automatic, one-touch setup of shoulder procedures
  • Table height adjustable from 23-5/8” to 41-1/2”
  • Low table height allows the surgical team to comfortably operate at waist height on bariatric patients
  • Slim-profile based will not conflict with imaging equipment
  • 30° lateral tilt, Trendelenburg, and reverse Trendelenburg
  • Pendant control is durable and features an inexpensive rebuild program that eliminates the need for costly replacement
  • Length w/o headrest 66 3/8”, 1,665mm
  • Length with headrest 79”, 2,006mm
  • Width (back/seat plate) 19 5/8”, 500mm
  • Width with side rails 21 7/8”, 555mm
  • Height 23 5/8 to 41 1/2”, 600-1,053mm
  • Lateral tilt (left/right) 30°
  • Trendelenburg 30°
  • Reverse Trendelenburg 30°
  • Power Kidney Bridge 5 7/8” Lift, 150mm
  • Lift Back up/down 90°/40°
  • Lift Back up/down 20°/100°
  • Return to level (anatomically correct return to a horizontal position from an articulated position)
  • Flex/Reflex 40°/90°
  • Base braking (lock/unlock) 10.1 (kg)
  • Top Rotation 10.1 (kg)
  • Head Section 60° up/90° down
  • Max. permissible load 1,200 lb (545kg) Lift; 1,000 lb (455kg) Articulation

Positioning Includes:

  • 40° Flex
  • 90° Reflex
  • 20° Leg Up
  • 100° Leg Down
  • 90° Back Up
  • 40° Back Down
  • 30° Trendelenburg
  • 30° Reverse Trendelenburg
  • 30° Tilt – Left
  • 30° Tilt – Right

Skytron 6702 Hercules Brochure (click to view)

Unsure which model or features are best suited to your operating theater? Here at Venture Medical, we have a large selection of New and Completely Refurbished Operating Tables.  Choose from Surgical Tables for Specific Operations, Weight Supported Models, Slope, Tilt, Lateral Tilt, Radiolucent Table Tops, and more.

Contact Us Today for Questions and Available Options that are best suited to Fit Your Specific Needs and Budget!
