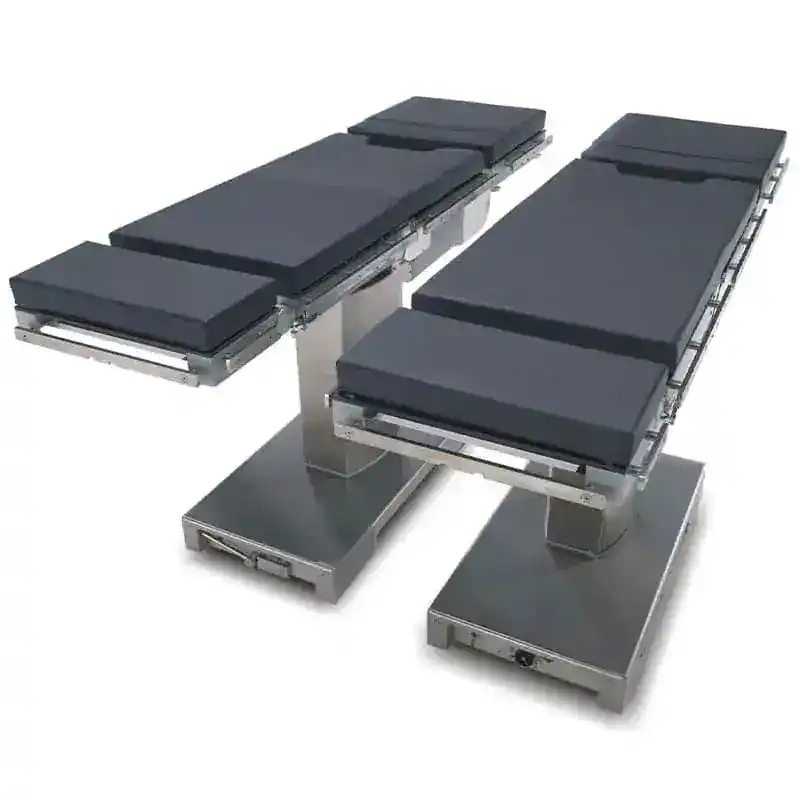

NUVO V1000 Surgical Table

Ships in typically 3-4 weeks

Brand New
SKU VM-E21M56102 Category

The Nuvo V1000 is a premier surgical table built for high-capacity use, featuring a 1,000 lb lift and 800 lb articulation limit. It offers a 12.2 inch longitudinal slide for superior C-arm access, a powered leg section, and a 180-degree rotating top to enhance versatility across all surgical specialties.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

NUVO V1000 Surgical Table. For nearly 20 years, our sole focus at Nuvo has been to provide the medical field with the highest quality, most cost-effective surgical lights, tables, equipment management systems, video integration, and other products for hospital operating rooms. As a result, this focus helps make a real difference in the care of your patients.

Additionally, the NUVO V1000 features an exceptionally sturdy, low-profile base that helps ensure maximum surgeon comfort to reduce fatigue during long procedures. Furthermore, it offers unprecedented C-arm access, self-diagnosis with an Instant Error Code display, and automatic sectional conflict prevention.

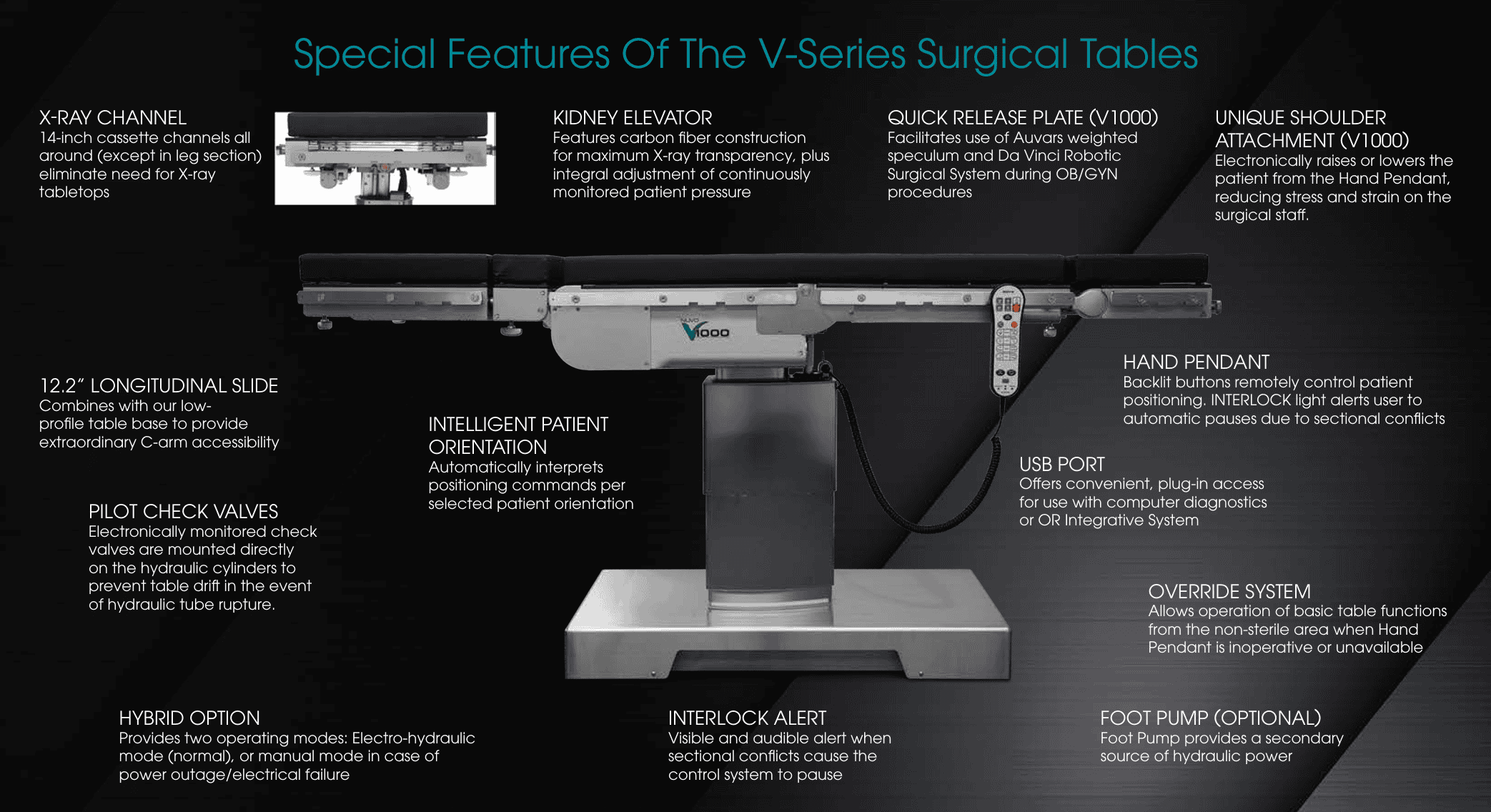

NUVO V1000 Surgical Table Key Features

  • Quick Release Plate for Auvars Speculum and Da Vinci Robotic Surgical System
  • Unique Shoulder Attachment with Electronic Raise/Lower
  • Carbon Fiber Kidney Elevator
  • 12.2″ Longitudinal Slide
  • Intelligent Patient Orientation

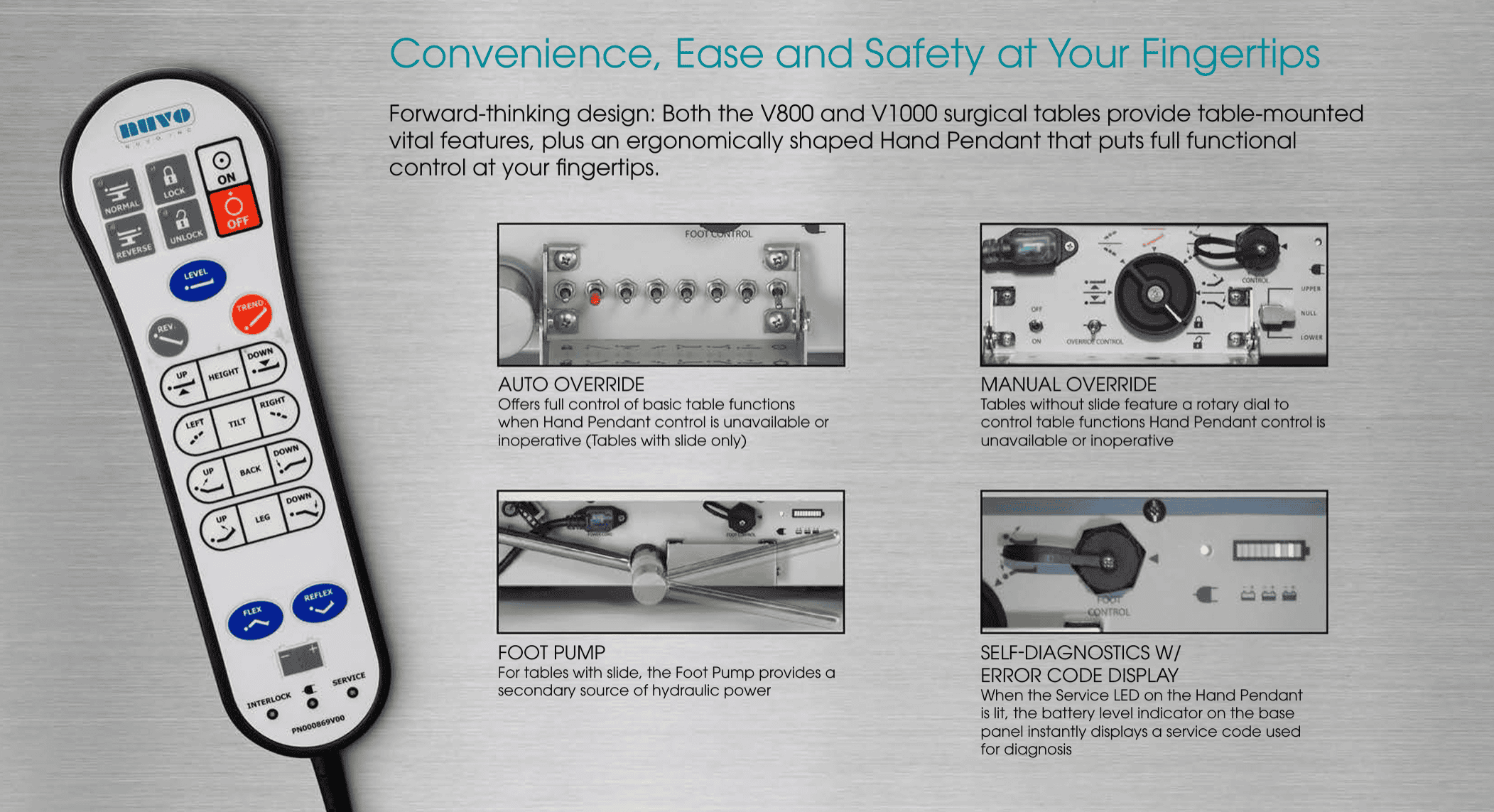

  • Backlit Hand Pendant



Overall, these features work together to give surgical teams precise control and reliable imaging access, with 14 inches of coverage supporting extended visibility. Moreover, pilot check valves and an interlock alert system add extra safety during use. Additionally, the override system and USB port offer added flexibility for diagnostics. Consequently, staff can operate confidently during power issues. In addition, see tabs for additional information on the NUVO V1000.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Surgical Tables? Click here to view our New and Refurbished Surgical Tables.

Do you need replacement pads for your surgical tables? Click here to view our Surgical Table Replacement Pads.

Additional information

Brand

Nuvo

Condition

New

  • 1,000 lb. Weight Capacity
  • Powered Leg Section
  • Unique Shoulder Attachment
  • Quick Release Plate
  • Kidney Bridge
  • Sliding Top
  • Reverse Orientation
  • Slide Option
  • Hybrid Option
  • Override Controls
  • Perineal Cutout
  • Table Leveling
  • Max. Weight Capacity: 1000 lbs (454 kg)
  • Height: 26.8 – 44 in (68 – 112 cm)
  • Slide: 12.2 in (31cm)
  • Lateral Tilt: 20°
  • Trendelenburg: 30°
  • Reverse Trendelenburg: 30°
  • Back Section: 80° up or 50° down
  • Leg Section: 30° up or 90° down; 180° open to the left and right
  • Head Section: 90° up or 45° down
  • Kidney Elevator Elevation: 0 ~ 4.7 in (12cm)
  • Flex: Maximum of 25° down
  • Reflex: Maximum of 30° up

Battery Specifications:

  • Main Battery Set: 24V, 14 Ah (Battery Specification: 12V/14Ah*2, per each table)
  • Sub Battery Set: 24V, 2.3 Ah (Battery Specification: 12V/2.3Ah*2, for B2AV1000SKP only)
  • Optional C-LiFePO4 Battery Pack: 17.4 Ah (Battery Specification: 24V/17.4Ah*1, per table)

NUVO V-Series Table Brochure (click to view)
