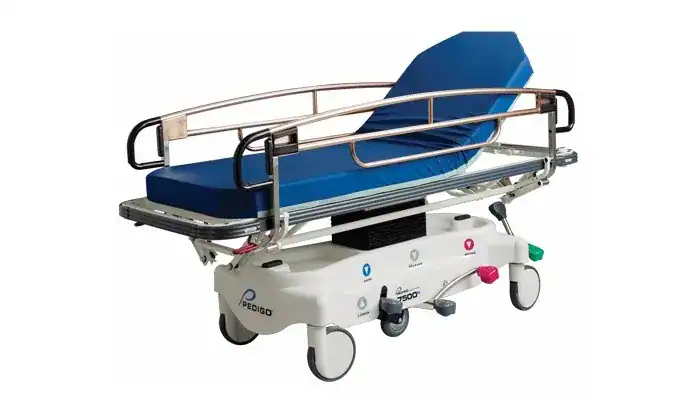

Pedigo Narrow Transport/Trauma Stretcher | 7500-N

Ships in typically 3-4 weeks

New
SKU VM-E24M63102 Category

The Pedigo 7500-N Narrow Transport Stretcher is designed for facilities with limited space. It features a 750 lb weight capacity, Instant Steer 6-wheel steering, and tuck-away side rails for zero-gap transfers. This durable, highly maneuverable stretcher is ideal for trauma, ER, and PACU departments.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Pedigo Narrow Transport/Trauma Stretcher model number 7500-N. Pedigo’s 7500 Series Stretcher transfers patients easily and comfortably, with a load capacity of up to 750 pounds. Superior stability, mobility, and braking make the 7500 versatile for OR, ED, PACU, and more department needs.

Pedigo’s Narrow Transport/Trauma Stretcher Features: The 7500-N is ideal for facilities where space is a consideration, with overall dimensions of 29.5″W x 83″L. Easy to Use and Maintain: The rail system wipes clean and disinfects easily. Full-length tuck-away side rails create a zero transfer gap for easier patient transfer. Pedigo’s ergonomic Quick-Release O2 Tank Holder mounts on the side and sits under the patient’s surface, reducing caregiver bending.

Additional 7500-N Features: Instant Steer Six Wheel Steering: Two IS6™ wheels sit directly under the chassis for improved maneuverability and control. Center Column Support: A sturdy steel column with a single hydraulic lift cylinder uses sixteen precision ball bearings for smooth patient lift and lower.

Please Note: 7500-N is shown with optional CuVerro® antimicrobial copper alloy rails, which are not included.

  • See tabs for more information.

Additional information

Condition

New

Brand

Pedigo

  • 750 lbs. weight capacity
  • Instant Steer 6 Wheel Steering (IS6)
  • Side rails – the full-length, dual release
  • Integrated push/pull handles
  • Center column design with precision ball bearings
  • Quick-Release O2 Tank Holder (US Patent 7,865,984 B2)
  • Positive/negative Trendelenburg dual pneumatic assist cylinder
  • Pneumatic assist Fowler (600N 135# force)
  • Mechanical Level Lock
  • Brake & Steer activated foot pedals
  • Dual side-mounted hydraulic foot pedals
  • Four corner IV pole receptacles
  • Four restraint strap positions
  • Full PVC perimeter bumper
  • 8″ easy mobility casters
  • Latex Free
  • Weight Capacity: 750 lbs
  • Overall length: 83″
  • Overall Width: 29.5″
  • Height Range – Low: 23″
  • Height Range – High: 32.75″
  • Fowler Backrest: 0º-90º
  • Trendelenburg: +12º
  • Reverse Trendelenburg: -7º
  • Patient Surface: 77″ x 27″
  • Side Rails: 14″ x 76″
  • Casters: 8″

Available Options Sold Separately:

  • CuVerro® Antimicrobial Copper Alloy: Now, as an added protection in the ongoing battle with bacteria, Pedigo offers the option of side rails made from CuVerro® antimicrobial copper alloy. Copper is a natural anti-microbial element, and CuVerro® is the only solid touch surface material registered by the EPA to continuously kill bacteria1 that cause infections and pose a risk to human health. Lab tests show 99.9% of bacteria1 associated with disease and conditions, including MRSA1, are killed within two hours when in contact with copper. Bacteria will continue to be killed 24 hours a day, week after week, between regular cleanings.
  • Stretcher Scale: Backlit LCD scale display reads to the nearest pound with a +/- margin of 5 pounds throughout the entire 750-pound range. The instrumentation cable is routed through the frame so as not to interfere with the patient or peripheral components. The scale can be zeroed to adjust for accessories or additional gear on the litter top. Stores patient weight to memory when the patient while being weighed. Weights can be recalled even if the patient is not on the stretcher. One button switches from pounds to kilograms.
