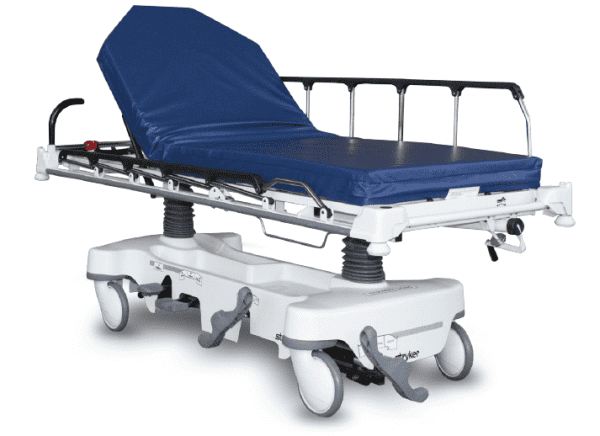

Stryker 747 / 748 Stretcher – Refurbished

Ships in typically 3-4 weeks

Refurbished
SKU VM-E24M76113 Category

The refurbished Stryker 747/748 Stretcher features fifth-wheel steering, collapsible side rails, and an integrated O2 tank holder. Built from Stryker’s trusted ST104 line, it delivers reliable, cost-effective patient transport for busy medical facilities.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Stryker 747 and 748 Stretchers – Refurbished. The Refurbished Stryker 747 / 748 Stretcher is a trusted, multi-purpose solution for patient transport. Additionally, known for their durability and ease of use, these models come from Stryker’s ST104 stretcher line. Furthermore, this line is recognized for performance in fast-paced medical environments. As a result, staff gain a stretcher built for daily demands.

Moreover, each Stryker 747 / 748 stretcher is carefully refurbished to deliver long-lasting performance and reliability. In addition, these stretchers work well in emergency departments, surgical centers, and medical clinics. Consequently, facilities gain a dependable, cost-effective solution without sacrificing quality or safety. Overall, staff can rely on consistent performance across busy shifts.

Stryker 747 / 748 Key Features

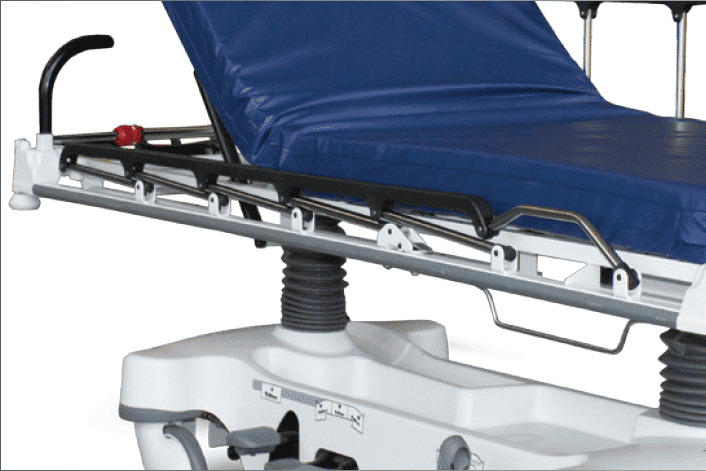

  • Collapsible Side Rails
  • +/- Height, Fowler, Trend/Reverse Trend Movements
  • Integrated O2 Tank Holder
  • 5th Wheel Steering
  • Gas Spring Assist Backrest

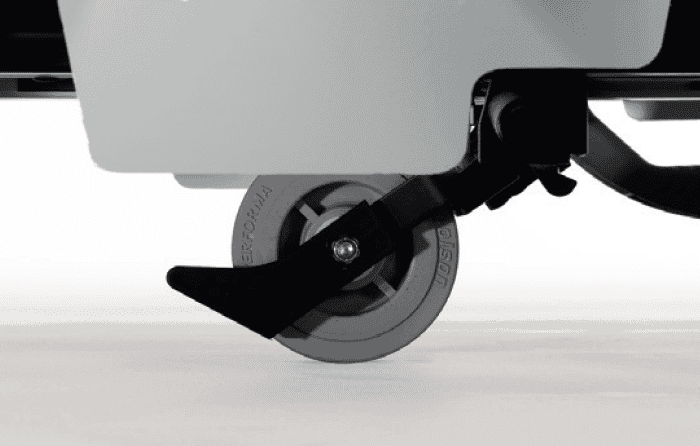

This Stryker 747 / 748 Stretcher includes all standard features plus fifth-wheel steering. Specifically, its retractable fifth wheel provides superior maneuverability and cornering. Also, this design reduces physical strain on staff during transport.



Additional information

Brand

Stryker

Condition

Refurbished

  • Fifth-wheel steering
  • Thermoformed ABS base with extra capacity storage tray
  • 500 lb weight capacity
  • 26″ wide patient surface with 4″ Mattress (747)
  • 30″ wide patient surface with 4″ Mattress (748)
  • Less than 21.5″ low height
  • Integrated oxygen bottle holder
  • Four-wheel, steel-ring brake system with dual-end activators
  • Dual side-mounted foot control hydraulics with uni-lower pedal
  • Collapsible side rails
  • Four integrated IV receptacles
  • Trend/Reverse Trend
  • 8″ Casters
  • Pneumatic backrest/stationary foot
  • Constant descent hydraulics
  • Dual-end brake & steer controls
  • 26″ Litter (Patient Width)
  • Overall length: 83″
  • Overall width: 30″
  • Weight capacity: 500 lbs
  • High Height range: 36″
  • Low Height range: 21.5″
  • Backrest: 0º – 90º
  • Trend/Reverse Trend: ±18º
  • Patient Surface: 26″ x 75.5″
  • Side Rails: 13″ x 55″
  • Caster Diameter: 8″
  • 30″ Litter (Patient Width)
  • Overall length: 83″
  • Overall width: 34″
  • Weight capacity: 500 lbs
  • High Height range: 36″
  • Low Height range: 21.5″
  • Backrest: 0º – 90º
  • Trend/Reverse Trend: ±18º
  • Patient Surface: 30″ x 75.5″
  • Side Rails: 13″ x 55″
  • Caster Diameter: 8″

Available Options (Sold Separately)

  • Basic IV Pole
  • Upgraded Pad
  • Four-sided brake & steer controls
  • Pop-up push handles
  • 4-sided hydraulic controls
  • Defibrillator tray
  • defibrillator tray/foot extender/chart surface
  • Side rail pads
  • Restraint straps

Stryker 747 – Replacement Stretcher Pad – 26″ x 75″ x 4″ (click to view)

Stryker 748 – Replacement Stretcher Pad – 30″ x 75″ x 4″ (click to view)

Do you need other replacement pads for your Stretchers? Click here to view our Stretcher Replacement Pads.
