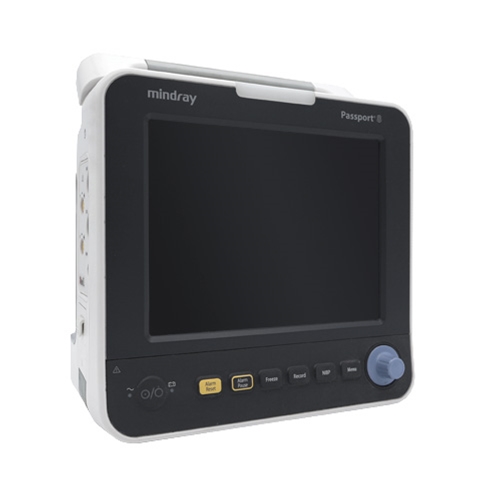

Mindray Passport 8 Patient Monitor – Refurbished

Ships in typically 3-4 weeks

Refurbished
SKU VM-E12M53103 Category

The Mindray Passport 8 Patient Monitor features an 8-inch touchscreen, modular design for CO2 and cardiac output monitoring, and BeneVision Central Station connectivity. Includes new ECG cable, SpO2 sensor, NIBP cuff, and battery for refurbished, ready-to-use condition.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Mindray Passport 8 Patient Monitor – Refurbished. The Mindray Passport 8 is a flexible, modular patient monitor built for many types of clinical settings. Additionally, its plug-and-play design supports advanced monitoring options, including capnography (CO2), dual invasive pressure channels, and cardiac output. Furthermore, this design gives staff more monitoring choices without needing a new device.

Moreover, the Passport 8 includes HL7 and DIAP communication protocols, along with wired and wireless networking. As a result, it connects easily to the BeneVision Central Station for centralized patient data. Specifically, this makes it simple to keep patient data organized in one place.

Mindray Passport 8 Key Features

  • 8″ High-Resolution Touchscreen (Up to 7 Waveforms)
  • 3- or 5-Lead ECG, Masimo SET SpO2, NIBP, Respiration, Temp
  • Integrated HL7 and DIAP Communication Protocols
  • Ergonomic Carrying Handle with Multiple Mounting Options
  • New ECG Cable, SpO2 Sensor, NIBP Cuff, and Battery



In addition, this monitor supports defibrillator synchronization and extensive data storage for trend data, alarms, and events. Also, an ergonomic carrying handle and multiple mounting options add mobility. Consequently, staff can move this monitor easily between rooms without added strain.

Additional information

Brand

Mindray

Condition

Refurbished

  • 8″ high resolution touchscreen display
  • Up to 7 waveforms
  • Standard features include 3 or 5-lead ECG, Masimo SET® SpO2, NIBP, respiration, temperature, integrated recorder
  • Optional Nellcor® OxiMax® SpOavailable
  • Available ST and Arrhythmia analysis with atrial fibrillation detection
  • Extensive data storage capability for trend data, alarms, events, NIBP measurements up to 48 hours of full disclosure
  • Available wireless 2.4 GHz (802.11b/g/n)
  • Connects to BeneVision Central Station
  • Integrated HL7 and DIAP protocol interfaces
  • Integrates with eGateway for HL7 communication to EMR
  • Defibrillator synchronization
  • Ergonomic carrying handle and multiple mounting options offer unprecedented mobility

Physical Dimensions

Monitor Size: 22.4 cm (H) x 13.5 cm (D) x 24.2 cm (W) 8.8″ (H) x 5.3″(D) x 9.5″ (W)

Weight: 3.5 kg (7.8 lbs) (Standard parameters configuration, including a lithium battery and a recorder)

Input/Output Communications ECG Analog Output Specification

Bandwidth (-3dB; reference frequency: 10Hz)

Diagnostic Mode: 0.05 to 150 Hz

Monitor Mode: 0.5 to 40 Hz

Surgical Mode: 1 to 20 Hz

Monitor QRS Delay: ≤ 25 ms (in diagnostic mode, and non-paced)

Sensitivity: 1V/mV ±5%

Pacer Enhancement

Amplitude: Voh≥2.5V

Width: 10 ms±5%

Signal Rising and Falling Time: ≤100μs

Communication Protocol

DIAP Communication Protocol

HL7 Communication Protocol

Electrical Ratings

Power Supply: AC power, battery

AC Mains Power Source

AC Power: 100 to 240 VAC (±10%)

Current: 1.3 to 0.5 A

AC Power Input Frequency: 50/60 Hz (±3Hz)

Environmental Conditions

Temperature Range

Operating: 10°C to 40°C

Non-operating (storage): -20°C to 60°C

Humidity Range

Operating: 15% to 95%, non-condensing

Non-operating (storage): 10% to 95%, non-condensing

Altitude Range

Operating: (-1,000 to 9,841 feet ASL) 1,074 hPa to 700 hPa (806 mmHg to 394 mmHg)

Non-operating (storage): (-1,000 to 15,000 feet ASL) 1,074 hPa to 700 hPa

Passport 8 Brochure (click to view)
