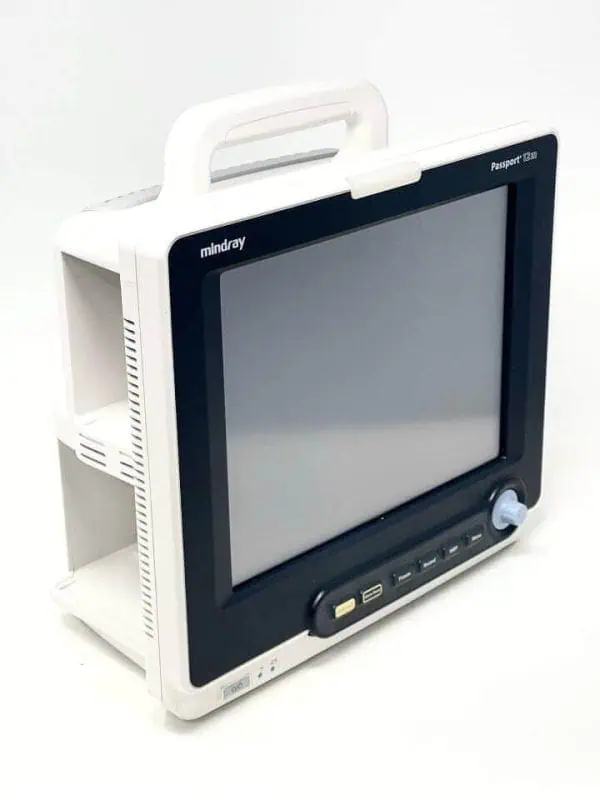

Refurbished Mindray Passport 12m Patient Monitor

Description

Mindray Passport 12m Patient Monitor – Refurbished. The Mindray Passport 12m, from the Passport monitor family, offers strong clinical value. Additionally, this monitor works well in intermediate care settings for mid- to high-acuity needs. Furthermore, this refurbished monitor offers helpful features to support patient care and daily clinical work.

Moreover, the Passport 12m has a 12.1-inch touchscreen for clear viewing and easy use. As a result, quick-access menus and touch keys make it simple to use. Specifically, trend features and easy controls help staff work faster with less effort.

Mindray Passport 12m Key Features

12.1″ Touchscreen with Quick-Access Menus
Multi-Lead Arrhythmia Checks and 12-Lead ECG Readings
Up to 8 Invasive Blood Pressures
Optional Multi-Gas and BIS Modules
EMR Connectivity for Easy Data Export

In addition, this monitor supports multi-lead arrhythmia checks, 12-lead ECG readings, and up to 8 invasive blood pressures. Also, extra modules like multi-gas and BIS add more options. Consequently, the monitor links easily with EMR systems for accurate data export. In turn, this makes work easier in both patient rooms and the OR.

Additional information

Brand	Mindray
Condition	Refurbished

12.1″ high-resolution touchscreen display.
Familiar intuitive interface across the Passport family.
Customizable screen views and quick keys for diverse patient and clinical settings.
Robust measurement set for intermediate to critical care environments.
Supports T1 Transport Monitor/Module as a multi-parameter module.
Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.

Dimensions

Height: 11.7 in (29.7 cm)
Width: 13.2 in (33.6 cm)
Depth: 7.4 in (18.7 cm)
Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)

Display

Type: Color TFT Display
Size (Diagonal): 12 in (30.5 cm)
Resolution: 800 x 600

Battery

Type: Rechargeable Lithium-ion
Voltage: 11.1 VDC
Capacity: 4500 mAh
Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
Charge Time: Less than 6 hours to 100%

ECG

Lead Set: 3, 5, and 12-lead
Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
Mindray Resolution: 1 bpm
Mindray Accuracy: ±1 bpm or ±1%, whichever is greater

Resp

Technique: Trans-thoracic impedance
Lead: Options are lead I and II
Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
Resolution: 1 rpm
Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater

Masimo SpO2

Measurement Range: 1 to 100%
Resolution: 1%
Response Time: = 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
Refreshing Rate: = 2 s
SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
Accuracy: 70 to 100%: ±2-3%

Nellcor SpO2

Measurement Range: 1 to 100%
Resolution: 1%
Response Time: = 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
Refreshing Rate: = 2 s
Accuracy: 70 to 100%: ±2-3%

NIBP

Technique: Oscillometry
Mode of Operation: Manual, Auto, and STAT
Heart Rate Range: 40 to 240 bpm
Resolution: 1 mmHg
Accuracy: Max mean error ±5 mmHg

Temp

Technique: Thermal resistance
Operating Mode: Direct mode
Measurement Range: 32 to 122°F (0 to 50 °C)
Resolution: 0.1 °C
Accuracy: ±0.1 °C or ±0.2 °F (without probe)

IBP

Measurement Range: -50 to 300 mmHg
Resolution: 1 mmHg
Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)

Mindray Passport 12m Quick Reference Guide (click to view)
