Description

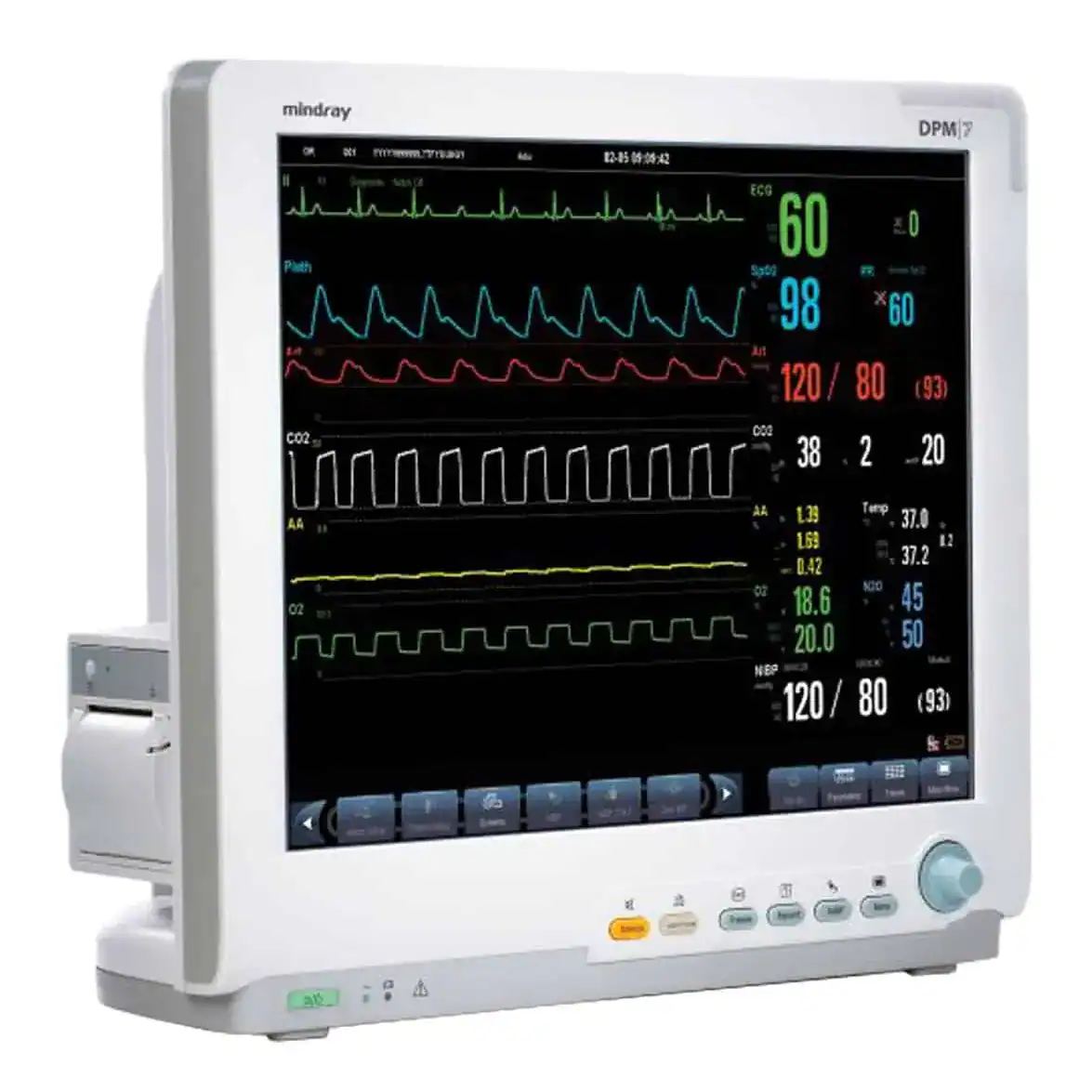

Mindray DPM7 Patient Monitor – Refurbished. The Mindray DPM7 Patient Monitor is a strong, multi-parameter monitor built for ICU or OR use. Additionally, it includes a unique split-screen feature. Furthermore, this lets staff view real-time data alongside a 5-lead ECG for easy monitoring.
Moreover, the DPM7 features a 17-inch high-resolution touchscreen for easy navigation and full patient checks. As a result, staff can quickly review key data during busy shifts. Specifically, it monitors arrhythmias, 3-, 5-, and 12-lead ECGs, RESP, NIBP, ST analysis, CO, and CCO/SVO2. In addition, auto-ID and data storage help staff work faster and keep better records.
Mindray DPM7 Key Features
- 17″ High-Resolution Touchscreen
- Split-Screen View (Real-Time Data + 5-Lead ECG)
- 3-, 5-, and 12-Lead ECG, RESP, NIBP, ST Analysis
- CO and CCO/SVO2 Monitoring
- New ECG Cable, SpO2 Sensor, NIBP Cuff, and Battery
Also, the DPM7 optionally supports up to 8 invasive pressures, CO2, and five-agent gas analysis. Consequently, these modules are not included in this listing. In turn, contact us for compatibility details or to buy extra modules separately.
Manufacturer: Mindray/Datascope
Part Number: (OEM): DPM7
Category: Patient Monitor
Condition: Refurbished
Weight: 32lbs.
Warranty: 12-Months
CONFIGURATION:
(There are many configurations, so price will vary, please contact us for additional information)
Dimensions:
- Physical Dimensions: 14.6” (370mm) H x 15.7” (400mm) W x 7.6” (193cm) D

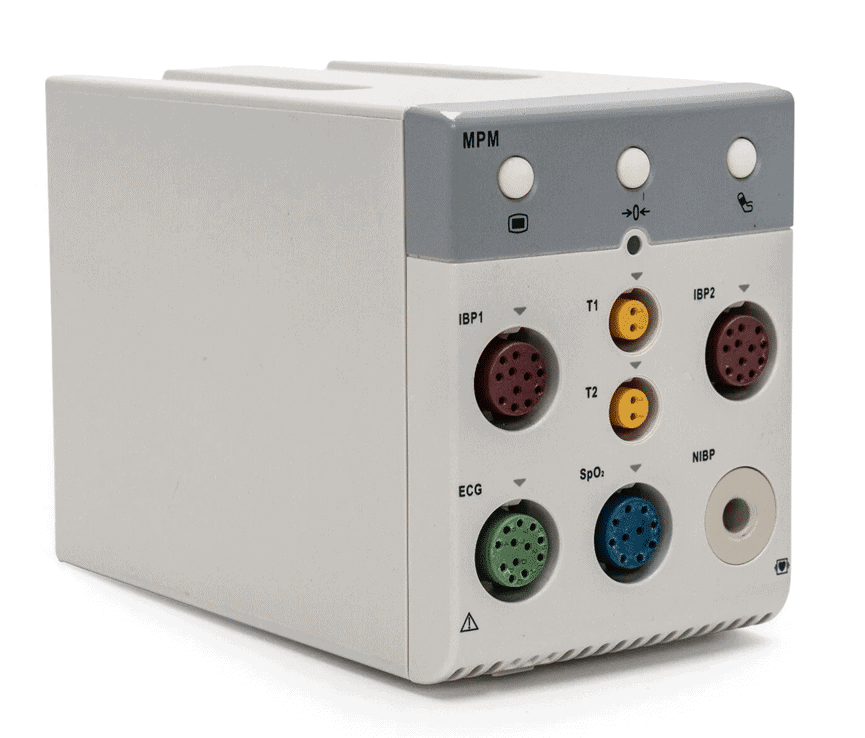

- Weight: > 31.9lbs (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components
- Display: 17” (432 mm)
- Power Supply: 1 AC power connector
- Network: 2 RJ45 network connectors, 100 BASE-TX
- Video: 1 standard DVI-D video interface connector
- Auxiliary output: 1 BNC connector
- Equipotentiality: 1 equipotential grounding connector IEEE 802.11g WiFi compatible
Environmental:
- Operating Atmospheric Pressure: 425 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)
- Operating Temperature: 41° – 104°F (5° to 40°C), 32° – 104°F (0°C to 40°C) Microstream CO2 module, 41° – 95°F (5°C to 35°C) Sidestream CO2 module, 50° – 104°F (10°C to 40°C) AG Module
- Operating Humidity: 15% to 95%, non-condensing
- Storage Atmospheric Pressure: 120 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)
Inspiration Time (Ti):
- 0.11 to 10 s (adults)
- 0.1 to 10 s (pediatric patients, neonates)
Power:
- Input Voltage: 100 to 240VAC
- Current: 2.8 to 1.6A
