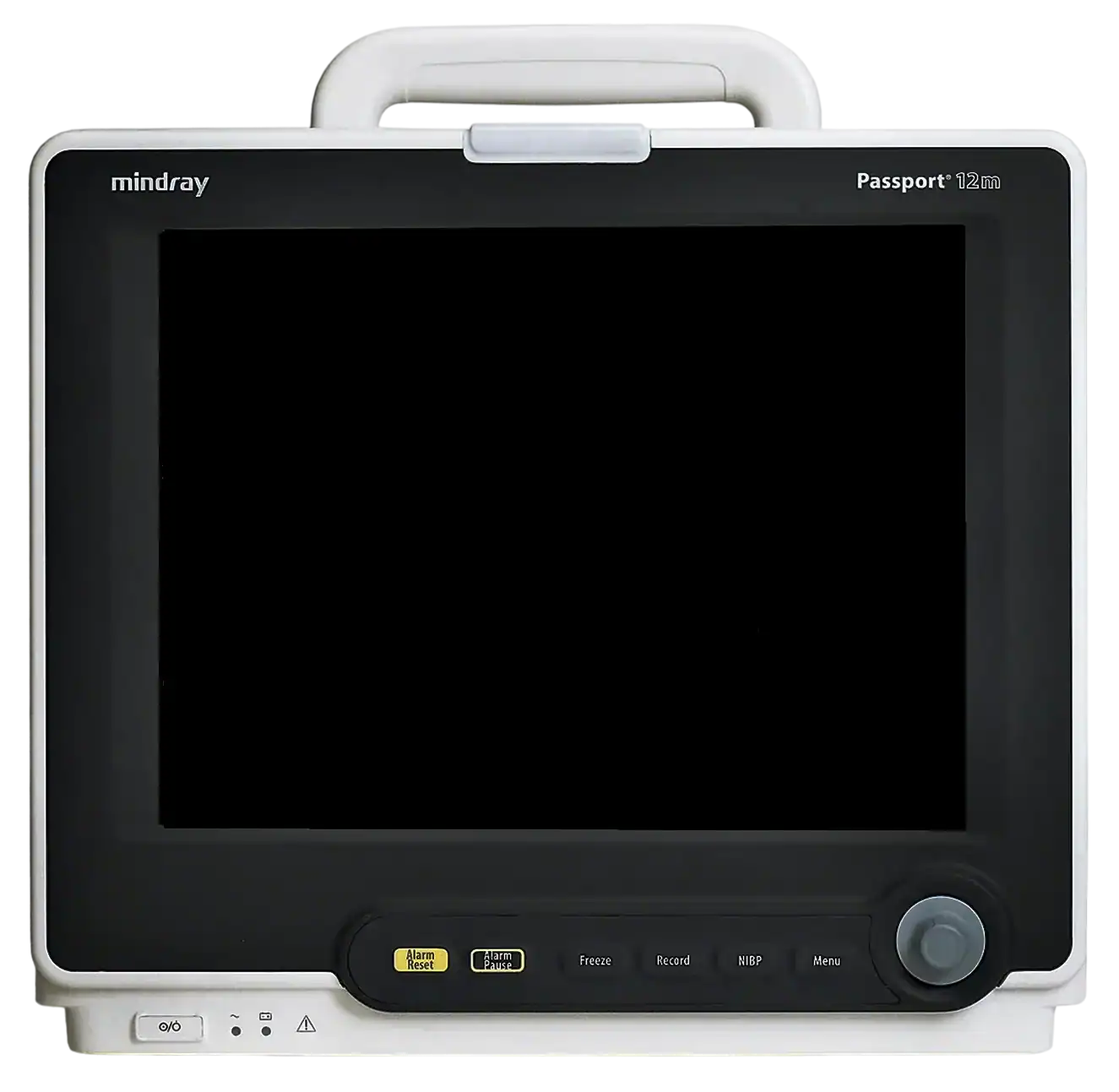

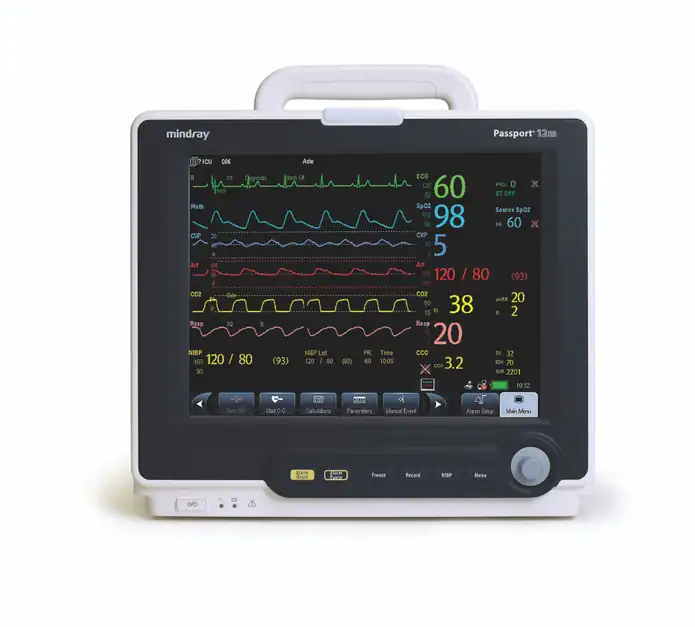

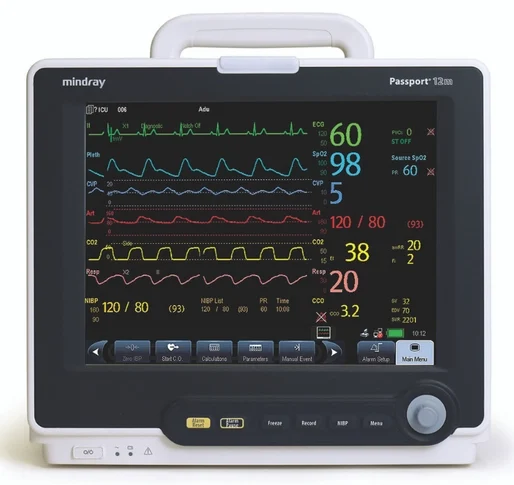

Mindray Passport 12m Patient Monitor w/ AG Module – Refurbished

Ships in typically 3-4 weeks

Refurbished
SKU VM-E12M53114 Category

Refurbished Mindray Passport 12m Patient Monitor w/ AG Module (Anesthesia Gas), 12.1-inch touchscreen, and 12-lead ECG with arrhythmia detection. Tracks up to 8 invasive blood pressure lines and expands with BIS and gas monitoring modules for step-down units, ICUs, and operating rooms.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Mindray Passport 12m Patient Monitor w/ AG Module – Refurbished. This monitor pairs clinical accuracy with flexibility for mid- to high-acuity care. Its built-in AG (Anesthesia Gas) module gives continuous tracking of anesthesia gases for better respiratory and anesthetic care. The 12.1-inch touchscreen offers clear, easy-to-read visuals and simple control.

Quick-access menus and touch keys keep the workflow simple during busy shifts. In addition, this monitor covers arrhythmia detection and 12-lead ECG checks. It also tracks up to eight blood pressure lines and links easily to EMR systems. Care teams can add extra modules like BIS and gas monitoring as needs grow.

Key Mindray Passport 12m Patient Monitor w/ AG Module Features

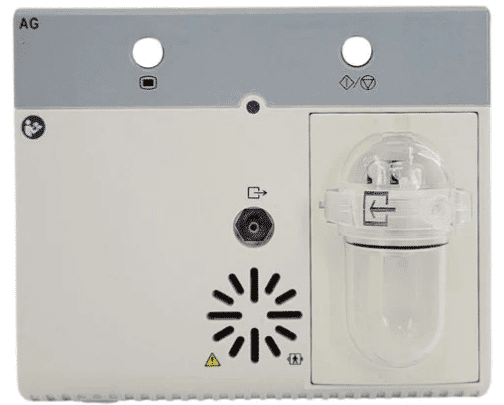

  • Integrated AG (Anesthesia Gas) module for continuous monitoring
  • 12.1-inch touchscreen display with quick-access menus
  • Arrhythmia detection and 12-lead ECG monitoring
  • Tracks up to 8 invasive blood pressure lines
  • Fits step-down units, ICUs, and operating rooms



This monitor helps busy teams work well while cutting down on mental load. Meanwhile, it gives clear, live data to support fast, informed choices. Data export makes it easy to keep records and share them across the hospital. Overall, the Passport 12m with AG Module gives you top monitoring at a budget-friendly price.

Additional information

Brand

Mindray

Condition

Refurbished

  • 12.1″ high-resolution touchscreen display.
  • Familiar intuitive interface across the Passport family.
  • Customizable screen views and quick keys for diverse patient and clinical settings.
  • Robust measurement set for intermediate to critical care environments.
  • Supports T1 Transport Monitor/Module as a multi-parameter module.
  • Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.

Dimensions

  • Height: 11.7 in (29.7 cm)
  • Width: 13.2 in (33.6 cm)
  • Depth: 7.4 in (18.7 cm)
  • Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)

Display

  • Type: Color TFT Display
  • Size (Diagonal): 12 in (30.5 cm)
  • Resolution: 800 x 600

Battery

  • Type: Rechargeable Lithium-ion
  • Voltage: 11.1 VDC
  • Capacity: 4500 mAh
  • Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
  • Charge Time: Less than 6 hours to 100%

ECG

  • Lead Set: 3, 5, and 12-lead
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • Mindray Resolution: 1 bpm
  • Mindray Accuracy: ±1 bpm or ±1%, whichever is greater

Resp

  • Technique: Trans-thoracic impedance
  • Lead: Options are lead I and II
  • Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
  • Resolution: 1 rpm
  • Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater

Masimo SpO2

  • Measurement Range: 1 to 100%
  • Resolution: 1%
  • Response Time: = 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
  • Refreshing Rate: = 2 s
  • SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
  • Accuracy: 70 to 100%: ±2-3%

Nellcor SpO2

  • Measurement Range: 1 to 100%
  • Resolution: 1%
  • Response Time: = 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
  • Refreshing Rate: = 2 s
  • Accuracy: 70 to 100%: ±2-3%

NIBP

  • Technique: Oscillometry
  • Mode of Operation: Manual, Auto, and STAT
  • Heart Rate Range: 40 to 240 bpm
  • Resolution: 1 mmHg
  • Accuracy: Max mean error ±5 mmHg

Temp

  • Technique: Thermal resistance
  • Operating Mode: Direct mode
  • Measurement Range: 32 to 122°F (0 to 50 °C)
  • Resolution: 0.1 °C
  • Accuracy: ±0.1 °C or ±0.2 °F (without probe)

IBP

  • Measurement Range: -50 to 300 mmHg
  • Resolution: 1 mmHg
  • Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)
