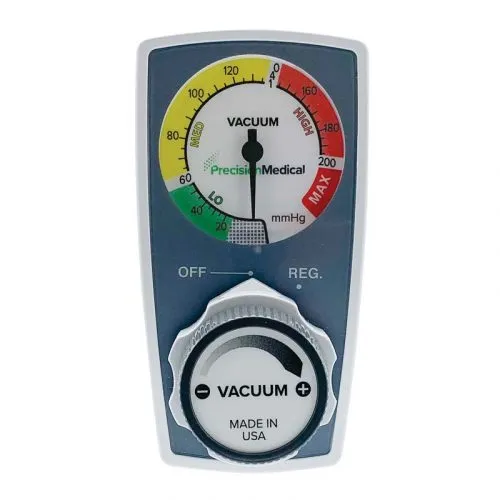

Precision Medical 3000 PM Series 2-Mode Vacuum Regulator

Ships in Typically 2-3 Weeks

Brand New
SKU VM-E36M86101 Category

The Precision Medical 3000 PM Series 2-Mode Vacuum Regulator offers low, medium, and high vacuum settings with gauge increments up to 300 mmHg. Available in digital or analog gauges with a durable, break-resistant case.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Precision Medical 3000 PM Series 2-Mode Vacuum Regulator. The Precision Medical 3000 regulates vacuum at low, medium, and high levels. Additionally, models are available with gauge increments up to 300 mmHg. Furthermore, a durable, break-resistant case comes in multiple colorways to suit any facility.

Moreover, modular components attach to a cast metal back plate, simplifying service and maintenance. As a result, staff can quickly access and replace parts when needed. Specifically, this regulator is available in digital or analog gauges to match your facility’s preference.

Precision Medical 3000 PM Series Key Features

  • Durable, Break-Resistant Case (Multiple Colorways)
  • Modular Components on Cast Metal Back Plate
  • Digital or Analog Gauge Options
  • Low to High Vacuum Rates
  • Large, Easy-to-Grip Knob



Also, the Precision Medical 3000’s compact design fits easily into wall-mounted or portable suction setups. Consequently, facilities gain a reliable option for a wide range of clinical vacuum needs. See tabs for additional information on the Precision Medical 3000.

  • Durable, break resistant case available in multiple colorways
  • Modular components are attached to a cast metal back plate, simplifying service
  • Available in digital or analog gauges
  • Low to high vacuum rates
  • Large, easy-to-grip knob
  • Dimensions: 3.7″ L x 2.8″ W x 5.2″ H
  • Weight: 1.1 lbs
  • Gauge Range (PM3000): 0-200 mmHg, Full Vacuum
  • Gauge Range (PM3000E): 0-200 mmHg (0-26 kPa)
  • Gauge Range (PM3000HV): 0-300 mmHg, Full Vacuum
  • Gauge Accuracy: Analog ±5% of Max, Digital ±1% of Full Scale
  • Vacuum Ports: 1/8″ NPT Female
  • Modes: Off, Regulated (Adjustable Continuous Vacuum)
  • Flow: 51 L/min (Regulated), 55 L/min (Line)
  • Maximum Vacuum: Min. 100 mmHg Above Calibrated Range (Regulated Mode)
  • Operating Temperature: 0°F to 122°F
  • Recommended Operating Temperature: 55°F to 85°F
  • Storage Temperature: -4°F to 140°F, Max 95% Humidity (Non-Condensing)
  • Battery (Digital Models Only): 3V Lithium, 1/2 AA

Precision Medical 3000 series Vacuum Regulator Brochure (click to view)
