Oakworks Vascular Table with Fowler

Ships in typically 3-4 weeks

Brand New
SKU VM-E08M57126 Category

The Oakworks Vascular Table with Fowler is a specialized imaging solution featuring dual towers and an electric Fowler for up to 70° reverse Trendelenburg. With a 550lb capacity, split drop-away footboard, and locking casters, it ensures ergonomic access and safe, full weight-bearing scans for advanced vascular and cardiac procedures.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Oakworks Vascular Table with Fowler – Feature Package. Dual towers and an electric Fowler make 70° reverse Trendelenburg a reality, effectively standing and full weight-bearing. Additionally, a split drop footboard makes non-weight-bearing scans safe and easy. As a result, staff gain reliable positioning options for a wide range of vascular studies. Furthermore, this table has a bariatric patient weight capacity of 550 lbs.

Overall, this package ensures the table is fully equipped for immediate clinical use. Additionally, it comes with 3 years of parts and a 1-year labor warranty. Furthermore, the table is FDA listed, cETL approved, and CE marked. Additionally, headrests and pads for carotid studies provide comfort and access for patients and sonographers, with your choice of TerraTouch upholstery colors.

Oakworks Vascular Table Key Features

  • 19″–33″ Electric Height Range
  • ±18° Trendelenburg / 0°–25° Reverse Trendelenburg (70° with Electric Fowler)
  • Integrated Footboard (Split, Drop Away)
  • Hand Control for All Movements

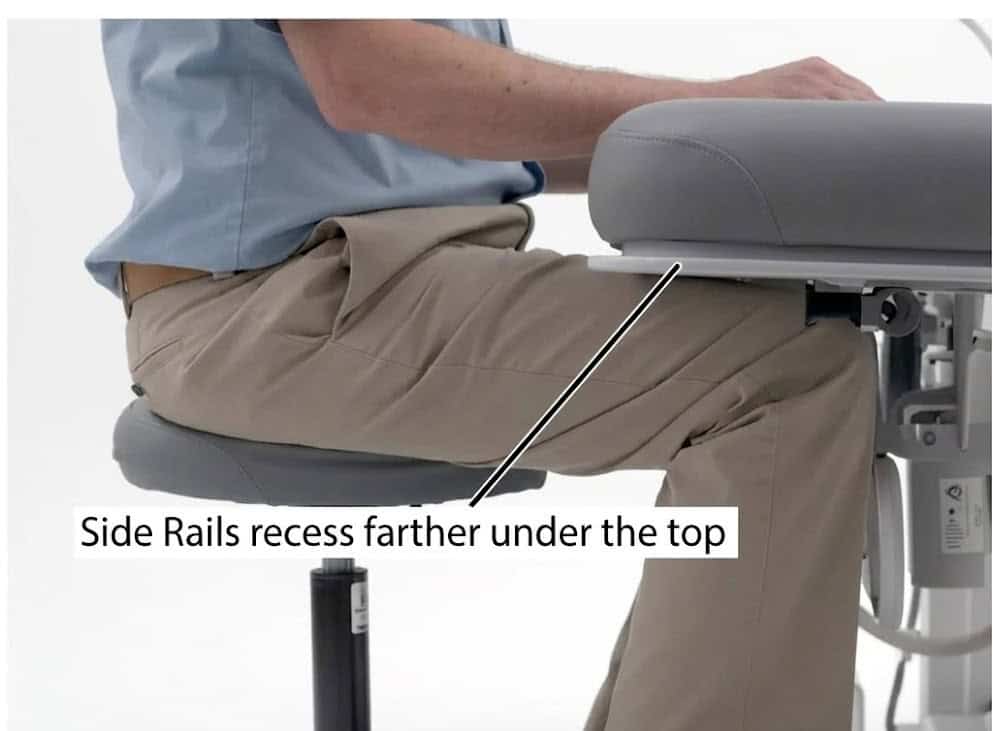

  • 2 Side Rails, 2 Patient Restraint Straps, Locking Casters



Overall, these features work together to give sonographers reliable, ergonomic positioning during procedures. Furthermore, elevating the upright table helps reduce the need for technologists to bend when reaching lower extremity veins. Moreover, the Feature Package also adds a paper roll holder for added convenience. In addition, see tabs for more information.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Imaging Tables? Click here to view our New and Refurbished Imaging Tables.

Do you need replacement pads for your imaging tables? Click here to view our Imaging Table Replacement Pads.

  • Electric Height Range: 19” – 33”
  • Trendelenburg Tilt: ±18º
  • Reverse Trendelenburg Tilt: 40º + Electric Fowler = 70º
  • Electric Fowler
  • Locking Casters: 4″ diameter double wheel
  • Patient Weight Capacity: 550 lbs.
  • Integrated footboard (split, drop away)
  • Locking Casters
  • Patient Restraint Strap
  • Side Rails (2)
  • Hand Control (All movements)
  • Paper Roll Holder
  • Warranty: 3 Years Parts, 1 Year Labor
  • FDA Listed, ETL Approved, CE Marked
  • Terra Touch ™ Upholstery
  • Patient Weight Capacity: 550 lbs
  • Height Range: 19″- 33″
  • Width: 26″ or 30″
  • Length: 72″
  • Top: Fowler 34″, Seat 38″
  • Trendelenburg: ±18º
  • Reverse Trendelenburg: up to 70º
  • Padding: 3″ multi-layer
  • Upholstery: TerraTouchTM
  • Table Weight: 359 lbs
  • Warranty: 3 years parts, 1 year labor
  • Certifications: FDA listed, cETL approved, and CE marked
  • 27″w P/N: 66783
  • 30″w P/N: 64219

To View Oakwork’s Available Upholstery Colors with Names view the image in the Gallery above.

Please Note:  We strive to ensure that the colors displayed on our product imagery (online and in print) are as accurate as possible. However, due to the limitations of printers, scanners, computer monitors, and other equipment, the colors may not be accurate.

Oakworks Vascular Table with Fowler Brochure (click to view)

Oakworks Vascular Table Video (click to view)

Unsure which model or features are best suited to your operating theater? Here at Venture Medical, we have a large selection of new and completely refurbished imaging tables. Choose from models built for specific procedures, weight capacity, tilt and lateral tilt range, radiolucent tabletops, and more.

Contact Us Today for Questions and Available Options that are best suited to Fit Your Specific Needs and Budget!
