Oakworks CFPMB301 Imaging Table with Bariatric Rectangular Top

Ships in typically 3-4 weeks

Brand New
SKU VM-E08M57110 Category

The Oakworks CFPMB301 Bariatric Imaging Table features a 750 lb capacity and an 18″ height range (26″-44″). This 3-motion C-arm table offers motorized height, lateral tilt, and Trendelenburg with a wide rectangular top and 56″ metal-free imaging area.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Oakworks CFPMB301 Bariatric Rated Imaging Table with Rectangular Top. The Oakworks brand incorporates a reputation for high quality and reliability. Additionally, the CFPMB301 features 3 powered motions: height, Trendelenburg tilt, and longitudinal travel.

Furthermore, the patient’s weight capacity is 750 lbs. As a result, this table supports a wide range of bariatric imaging needs. Moreover, the CFPMB301 has the industry’s lowest adjustable height range.

Oakworks CFPMB301 Imaging Table Key Features

  • 26″–44″ Powered Height Range
  • +15°/-11° Trendelenburg Tilt
  • 10″ Longitudinal Travel
  • 56″ Metal-Free Imaging Area
  • 24″ x 80″ Rectangular Top



Overall, these features work together to give surgical teams reliable, precise positioning during procedures. Furthermore, the powered height range supports wheelchair transfers and full lateral C-Arm imaging mobility. In addition, see tabs for more information on the CFPMB301.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Imaging Tables? Click here to view our New and Refurbished Imaging Tables.

Do you need replacement pads for your imaging tables? Click here to view our Imaging Table Replacement Pads.

  • Rectangular Top
  • Patient Weight Capacity: 750 lbs
  • 3 Powered motions – Bariatric Rated
  • Motion 1: Height Range 26 inches – 44 inches (66-109 cm) without pad
  • Motion 2: Trendelenburg Tilt +15/-11°
  • Motion 3: Longitudinal Travel 10″ (25 cm)
  • Industry’s Lowest Adjustable height Range of 26.5″ to 44.5″
  • 1″ Radiolucent  Table Top Pad
  • 56″ of Metal-Free Imaging Area
  • Patient Safety Strap
  • Heavy Duty 5″ Casters

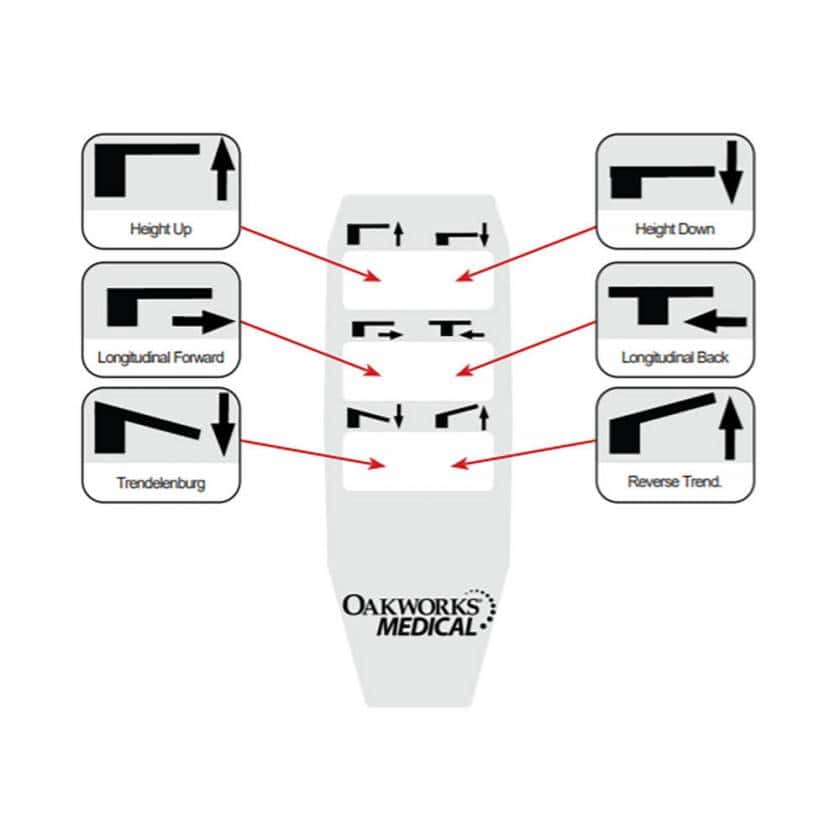

  • 1 Hand Control: All Motions
  • Warranty
  • Certifications: FDA listed, cELT approved, CE marked
  • Patient Weight Capacity: 750 lbs
  • Rectangular Bariatric Top 24″ W x 80″ L with 52.5″ metal-free imaging space
  • Motion 1: Height Range 26″ – 44″ (without pad)
  • Motion 2: Trendelenburg Tilt: +15º/11º
  • Motion 3: Lateral Tilt: ±15°
  • Controls, 1 each: Foot (all movements) and Hand (all movements)
  • Patient Safety Strap: 84″ L with 24″ of Velcro® at each end
  • Table Top Pad: 1″ Radiolucent Table Top Pad
  • Table Weight: 475 lbs.
  • Warranty: 3 years parts, 2 years labor
  • P/N: 65748-T01

Available Options Sold Separately:

  • 6″ Adjustable T-Rail Clamp
  • 2″ Radiolucent Table Top Pad
  • Carbon Fiber Armboard (shown below left)
  • Fluoro Extender (shown below right, scroll over image for lower extremity application)
  • Foot Control
