Oakworks CFPM401 Imaging Table with Integrated Headrest

Ships in typically 3-4 weeks

Brand New
SKU VM-E08M57108 Category

The Oakworks CFPM401 Imaging Table features an integrated headrest designed for cervical and spinal procedures. This high-performance C-arm table offers 4-motion motorized adjustments, including height, lateral tilt, Trendelenburg, and longitudinal travel, providing clinicians with exceptional imaging access and a 500 lb weight capacity.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Oakworks CFPM401 Imaging Table with Integrated Headrest. The Oakworks CFPM401 Imaging Table is a 4-Motion Carbon Fiber Top Table with four powered motions: Height, Trendelenburg Tilt, Longitudinal Travel, and Lateral Travel.

Moreover, this table supports 500 lbs and offers a 26″– 43″ height range with 56″ of metal-free imaging area. As a result, staff gain full flexibility for a wide range of pain management procedures. Additionally, the integrated headrest adds extra comfort and stability during longer imaging sessions.

Oakworks CFPM401 Imaging Table Included Items

  • 2 Patient Safety Straps
  • 4″ Locking Casters

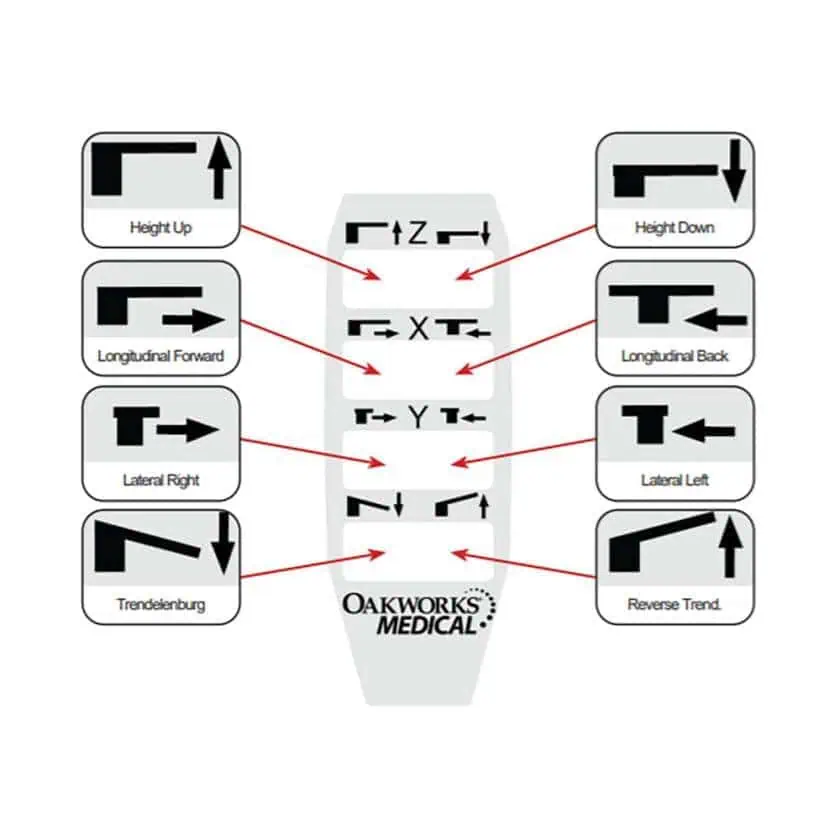

  • Multi-Function Hand Control (All Motions)

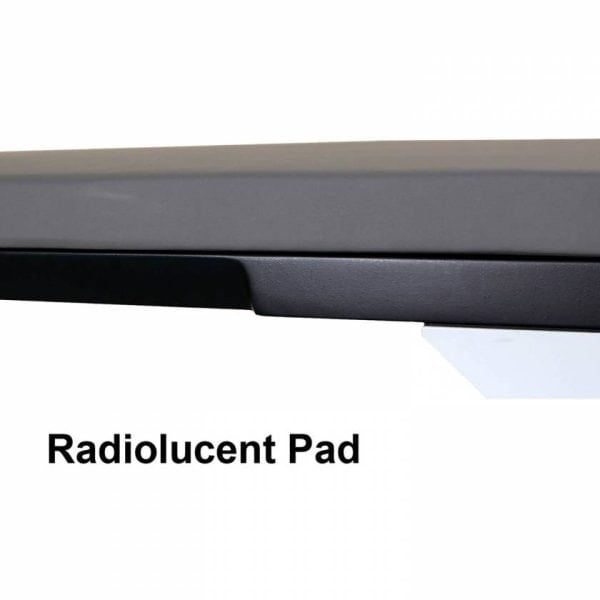

  • 1″ Thick Radiolucent Table Top Pad
  • Crescent Face Rest Pad



Overall, these included items ensure the table is ready for immediate use upon arrival. Furthermore, the CFPM401 carries FDA, CE, cETLus, and CB safety listings, giving facilities added confidence in its compliance and build quality. In addition, see tabs for more information.

Looking for a rectangular tabletop instead? Click here to see our CFPM401 equipped with a rectangular top, offering the same reliable imaging performance in a traditional table shape.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Imaging Tables? Click here to view our New and Refurbished Imaging Tables.

Do you need replacement pads for your imaging tables? Click here to view our Imaging Table Replacement Pads.

  • Cost-Effective
  • Electric 4 Movement Table: Height, Trendelenburg Tilt, Longitudinal Travel, and Lateral Travel
  • Integrated Headrest
  • Patient Weight Capacity: 500 lbs
  • Electric Height Range: 26″ to 43″ (66-109 cm) without pad
  • Carbon Fiber Top: 22″ (56 cm) wide x 84″ (214 cm) long
  • 56″ Metal-Free imaging space
  • Patient Safety Strap
  • 4″ Casters
  • Hand Control (all motions)
  • 1″ Thick Radiolucent Table Top Pad
  • 4in. locking casters
  • Crescent face rest pad
  • 2 Patient safety straps
  • Warranty
  • Safety Listings – FDA Listed, CE marked, cETLus approved, CB Certificate
  • Integrated Headrest
  • Electric Height Range: 26″ to 44″
  • Electric Trendelenburg: +15°/-11°
  • Electric Longitudinal Travel: 10″ (25 cm)
  • Electric Lateral Travel: 8 inches (20 cm), ±4″ (10 cm)
  • Weight Capacity: 500 lbs (227 kg)
  • Table Weight: 475 lbs (216 kg)
  • Warranty: 3 years parts, 2 years labor
  • Certifications: FDA listed, cETL Approved, CE Marked
  • P/N: 65747-T01

Oakworks CFPM401 Brochure (click to view)

Oakworks CFPM Movements Comparison Chart (click to view)

Oakworks CFPM C-Arm Tables Video (click to view)

Unsure which model or features are best suited to your operating theater? Here at Venture Medical, we have a large selection of new and completely refurbished imaging tables. Choose from models built for specific procedures, weight capacity, tilt and lateral tilt range, radiolucent tabletops, and more.

Contact Us Today for Questions and Available Options that are best suited to Fit Your Specific Needs and Budget!

Available Options Sold Separately:

  • 5″ Casters
  • 2″ Thick Table Top Pad
