Oakworks CFPM401 Imaging Table with Rectangular Top

• Cost-Effective 4 Movement Table
• Patient Weight Capacity: 500 lbs (227 kg)
• Electric Height Range: 26″ to 44″ (66-112 cm) without pad
• Rectangular Carbon Fiber Top
• Patient Safety Strap
• 4″ Casters

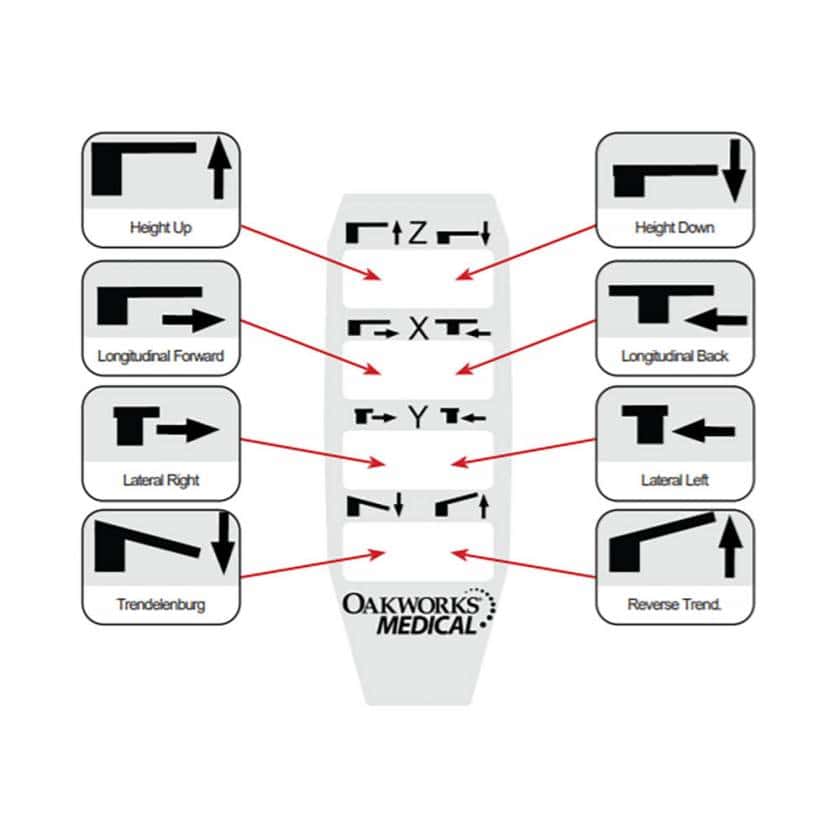

• Hand Control (all motions)
• 1″ Thick Radiolucent Table Top Pad
• 56″ of Metal-Free Imaging Space

• Carbon Fiber Top: 24″ (61 cm) wide x 80″ (203 cm) long
• Height Range: 26″ to 44″ (66-112 cm) without pad
• Trendelenburg: +15º/-11º
• Longitudinal Travel: 10″ (25 cm)
• Lateral Travel: 8 inches (20 cm), ±4″ (10 cm)
• Weight Capacity: 500 lbs (227 kg)
• Table Weight: 475 lbs (216 kg)
• Warranty: 3 years parts, 2 years labor
• Certifications: FDA listed, cETL Approved, CE Marked
• P/N: 66226-T01

Oakworks CFPM401 Brochure (click to view)

Oakworks CFPM Movements Comparison Chart (click to view)

Oakworks CFPM C-Arm Tables Video (click to view)

Unsure which model or features are best suited to your operating theater? Here at Venture Medical, we have a large selection of new and completely refurbished imaging tables. Choose from models built for specific procedures, weight capacity, tilt and lateral tilt range, radiolucent tabletops, and more.

Contact Us Today for Questions and Available Options that are best suited to Fit Your Specific Needs and Budget!

Available Options Sold Separately:

• CFPM401 with Integrated Headrest
• 5″ Casters
• 2″ Thick Table Top Pad
• Foot Control
