Oakworks CFPM400 Imaging Table: Integrated Headrest Top

Ships in typically 3-4 weeks

Brand New
SKU VM-E08M57107 Category

The Oakworks CFPM400 Imaging Table features a specialized integrated headrest top, ideal for cervical procedures and pain management. This high-performance C-arm table offers 4-way powered height, lateral tilt, Trendelenburg, and longitudinal travel, providing clinicians with exceptional imaging access and precise patient positioning.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

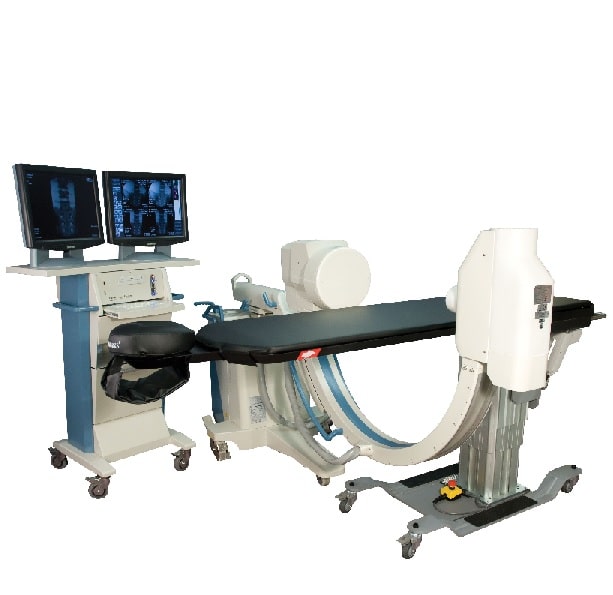

The OAKWORKS® CFPM400 Imaging Table.  The Integrated Headrest Top incorporates Oakworks’ brand reputation for high quality and reliability in this new, cost-effective table. The CFPM400 is designed to accommodate mobile and ceiling-suspended C-Arm systems. The CFPM400 is a 4-movement table that has all the features required for successful pain management image-guided procedures.

CFPM400 Features:The Carbon Fiber Top has a height range of 26″ to 43″, supporting both wheelchair transfers and full lateral C-Arm mobility. Additionally, it offers 10″ of Powered Longitudinal Travel, along with 15° Trendelenburg, 12° Reverse Trendelenburg, and 15° Lateral Tilt. Furthermore, the table supports up to 500 lbs and is mounted on a low-profile base. It is also easily movable with 4 locking casters. Finally, each table includes radiolucent pads, a crescent face rest, cranial pads, and a safety strap.

The table promotes 56″ of Metal-Free Imaging Area for maximum C-Arm efficiency. The CFPM400 is controlled by a single-hand control. Additionally, it is ideal for pain management practices, surgical centers, hospitals, and other multi-disciplinary medical facilities. Furthermore, it is compatible with all major C-arm products. As a result, it provides a cost-effective solution for all C-Arm imaging applications. Ultimately, you will NOT find a better value on the market today!

  • See tabs for more information.

To view additional imaging tables, click the following link to browse Venture Medical’s Complete Imaging Table Catalog

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’.

CFPM400 Features:

  • Designed to accommodate mobile and ceiling-suspended C-Arm systems
  • The CFPM400 is a 4 Powered Movement Table
  • Superior image quality for fluoroscopy-guided procedures
  • All the features required for successful pain management image-guided procedures
  • height range (without pad) of 26″ to 43″ (66-109 cm)
  • Accommodates low-height patient wheelchair transfers
  • Carbon fiber top
  • 10″ (25 cm) of Powered Longitudinal Travel
  • +15°/-11° Trendelenburg Tilt
  • 12° Reverse Trendelenburg
  • 15° of Lateral Tilt
  • Weight Capacity: 500 lbs (227 kg)
  • New low-profile base
  • Easily moved from room to room
  • Secured with 4 locking casters
  • Promotes 56″ of the metal-free imaging area
  • Controlled by 1 hand control
  • Kill Switch (see close-up below right)
  • Warranty

Included with Table:

  • Radiolucent Table Top Pad

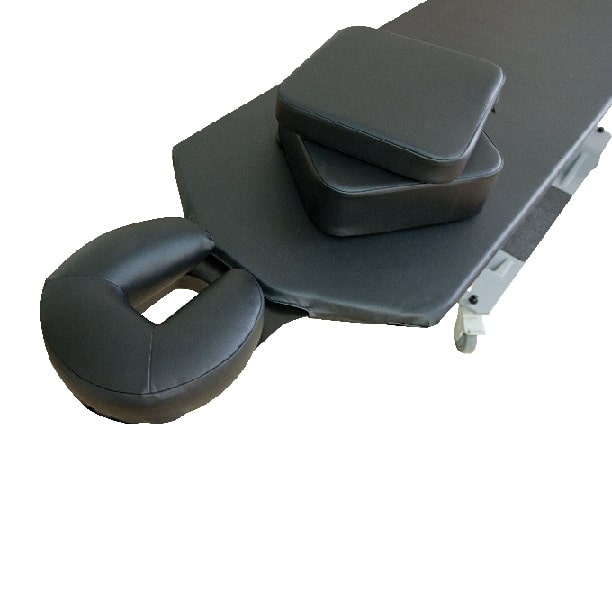

  • 1 Crescent Face Rest Pad and 2 Supine Cranial Pads: (see below left)
  • 1 Padded Safety Strap
  • 22” x 84” Carbon Fiber Top with integrated headrest
  • 56″ of metal-free imaging space
  • Patient weight: 500 lbs (226 kg)
  • Height Range: 26″ – 44″
  • Electronics: 110-volt motor + 2x24v Tilting Motors (1-foot control and 1-hand Control)
  • 1 Power Kill Switch
  • *Locking Casters
  • Hand Rail Table Weight: 415 lbs (188 kg)
  • Frame: Single tower steel base
  • Warranty: 3 years parts, 2 years labor
  • P/N: 65447-T01
