Oakworks CFPM301 Imaging Table with Rectangular Top

Ships in typically 3-4 weeks

Brand New
SKU VM-E08M57105 Category

The Oakworks CFPM301 Imaging Table with a rectangular top features a 500 lb capacity and an 18″ height range (26″-44″). This 3-motion C-arm table offers motorized height, lateral tilt, and Trendelenburg, providing 56″ of metal-free imaging area.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

Oakworks CFPM301 Imaging Table with Rectangular Top. The Oakworks brand incorporates a reputation for high quality and reliability. Additionally, the Oakworks CFPM301 Imaging Table with Rectangular Top features 3 powered motions: height, Trendelenburg tilt, and longitudinal travel.

Furthermore, the patient’s weight capacity is 500 lbs. As a result, staff gain full flexibility for a wide range of imaging procedures. Moreover, safety listings of the CFPM301 include FDA Listed, CE Marked, cETLus Approved, and CB Certificate, and the table comes with a warranty.

Oakworks CFPM301 Imaging Table Key Features

  • 26″– 44″ Powered Height Range
  • +15°/-11° Trendelenburg Tilt
  • 10″ Longitudinal Travel
  • 56″ Metal-Free Imaging Area
  • 24″ x 80″ Rectangular Top



Overall, these features work together to give surgical teams reliable, precise positioning during procedures. Furthermore, the powered height range accommodates low-height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging. In addition, see tabs for more information on the CFPM301.

Looking for a rounded headrest instead? Click here to see our CFPM301 equipped with a rounded integrated headrest, offering the same reliable imaging performance with an integrated headrest.



Curious how our refurbishing process works? Check out “Doing It Right: Our Refurbishment Process” in Venture Medical’s Equipment Knowledge Center.

Looking for other New and Refurbished Imaging Tables? Click here to view our New and Refurbished Imaging Tables.

Do you need replacement pads for your imaging tables? Click here to view our Imaging Table Replacement Pads.

  • Carbon Fiber Top – 56 in. Metal-free imaging space
  • Top Dimensions – 24″ Wide x 80″ Long
  • Motion 1 Electric Height Range 26″ – 44″ (without pad)
  • Motion 2 Electric Trendelenburg tilt +15°/-11°
  • Motion 3 Electric Longitudinal travel 10 in.

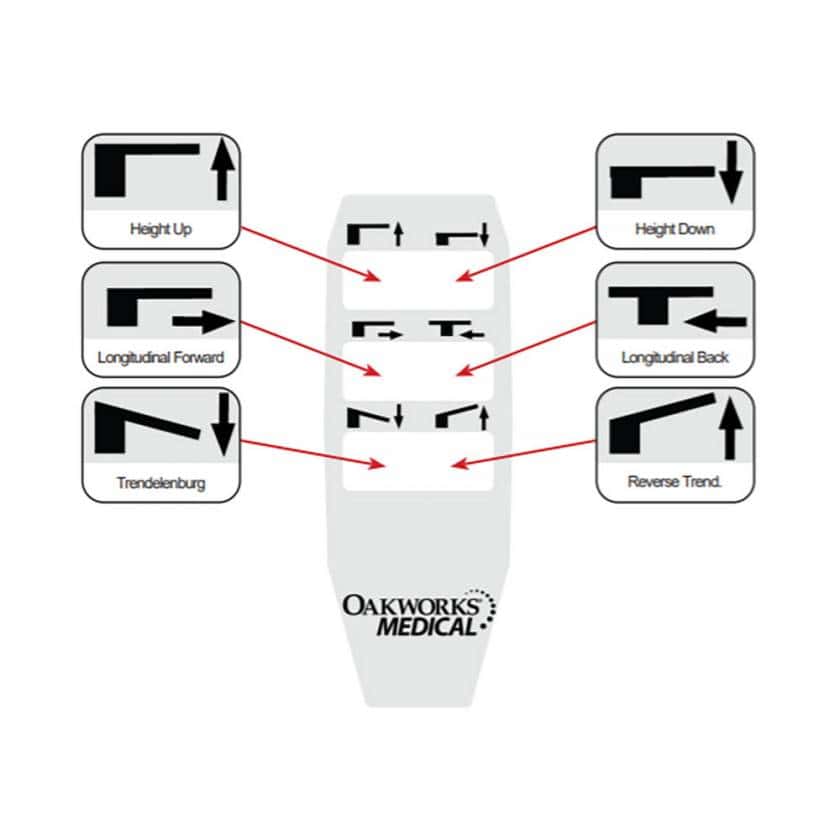

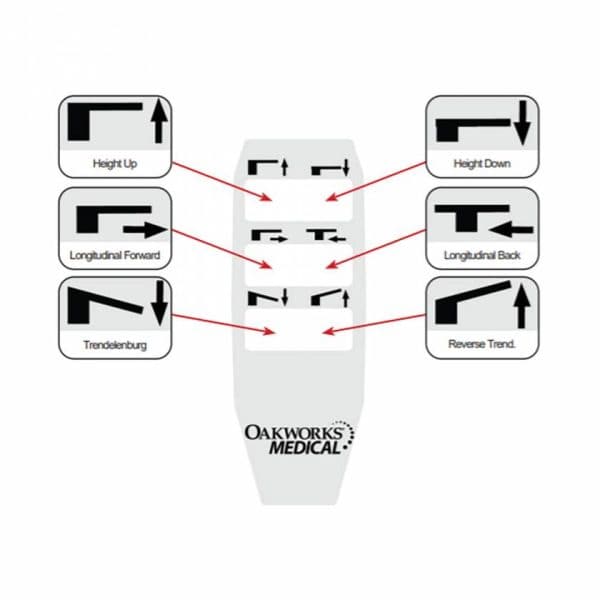

  • Multi-function hand control
  • Weight Capacity – 500 lb
  • Included Features – 1 in. Radiolucent Comfort Foam™ tabletop pad
  • Comes standard with Hand Control
  • 4 in. locking casters,
  • Includes Patient safety straps (2)
  • Warranty
  • Safety Listings – FDA Listed, CE marked, cETLus approved, CB Certificate
  • Patient Weight Capacity: 500 lbs.
  • Carbon Fiber Top: 24″ W x 80″ L
  • Motion 1: height range  26″ – 44″ (without pad)
  • Motion 2: Trendelenburg tilt +15/-11°
  • Motion 3: 10″ longitudinal travel
  • Control: 1 hand (3 motion)
  • Table Weight: 475 lbs.
  • Warranty: 3 years parts, 2 years labor
  • Certifications: FDA listed, cETL approved, CE marked

Oakworks CFPM300 Brochure (click to view)

Oakworks CFPM Movements Comparison Chart (click to view)

Oakworks CFPM300 Video (click to view)

Unsure which model or features are best suited to your operating theater? Here at Venture Medical, we have a large selection of new and completely refurbished imaging tables. Choose from models built for specific procedures, weight capacity, tilt and lateral tilt range, radiolucent tabletops, and more.

Contact Us Today for Questions and Available Options that are best suited to Fit Your Specific Needs and Budget!

Available Options Sold Separately:

  • 2 in. Table Top Pad Upgrade: 73190-T01
  • 5 in. Casters: 65427
  • Foot Control
