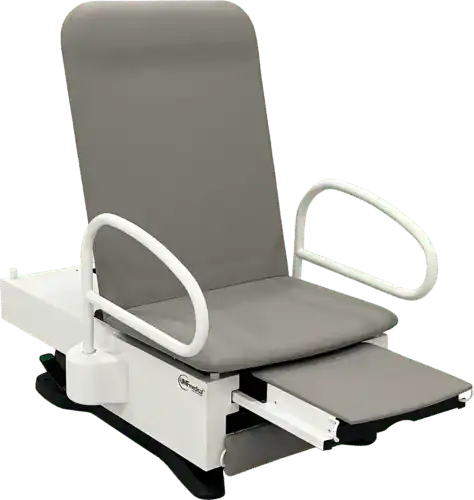

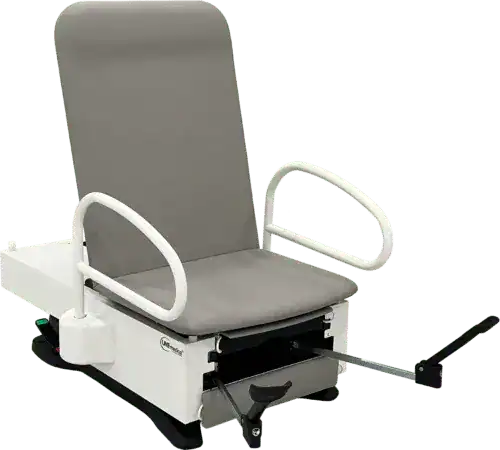

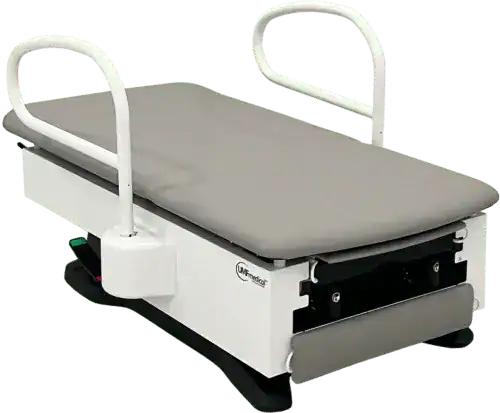

UMF FusionFREEDOM™ Exam Chair

Ships in typically 3-4 weeks

Brand New

The ADA-compliant UMF FusionFREEDOM™ Exam Chair features a 17-inch low access height for safe patient transfers. Supporting up to 450 lbs, it includes TruComfort™ rails, power hi-lo, and a seamless PreFixx® upholstered top, ensuring inclusive care, durability, and superior accessibility in any clinical setting.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

The UMF FusionFREEDOM™ Exam Chair meets the latest ADA standards recommended by the U.S. Access Board for inclusive care. A low seat height of 17 inches enables safer, easier, and more independent transfers for patients with mobility challenges. It accommodates 95% of wheelchair users who are capable of self-transfer, promoting accessibility in clinical environments. Over 20 million adults face mobility limitations, yet many exam rooms still use non-adjustable, fixed-height tables.

FusionFREEDOM helps close that gap by offering a practical, ADA-compliant alternative for modern healthcare settings. TruComfort™ Support Rails provide added stability, reducing fall risk and supporting patient and caregiver safety during exams. Moreover, UMF Medical’s FusionFREEDOM is a cost-effective solution that promotes equitable, dignified care for every patient.

  • Power hi-lo
  • 450lb (204kg) patient weight capacity
  • Classic removable, seamless upholstered top with PreFixx® Protective Finish – available in 16 colors
  • Large, reversible side drawer and large front drawer (model dependent)
  • One-function or two-function foot control (model dependent)
  • Single column electromagnetic actuator
  • 18”-21” paper roll holder (53.3cm)
  • 17” (43.2cm) low-access ADA seat height

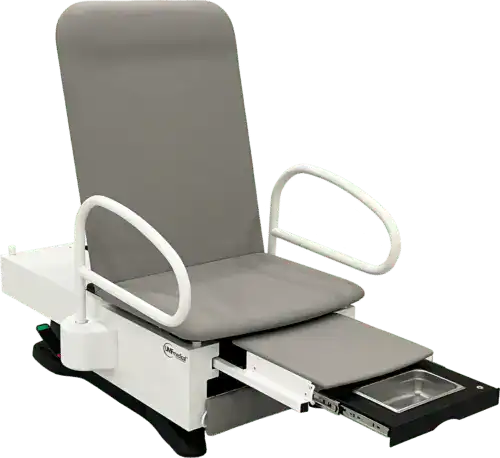

  • Stainless steel debris tray — 1.5” deep (3.81cm)
  • SmoothGlide Leg™ Extension with Privacy Pull™ Loops
  • Height: min 17” (43.18cm)
  • Width: 28” (71.1 cm)
  • Length: 58”–76” (147.3 cm-193 cm) with leg rest extended
  • Leg rest: 18” W x 18” D (45.7 cm W x 45.7 cm D)
  • Storage Drawer (Front): 18” W x 12” D x 3” H (45.7 cm x 30.5 cm x 7.6 cm)
  • Storage Drawer (Side): 17.5” W x 21” D x 5” H (44.5 cm x 53.3 cm x 12.7 cm)
  • Single-column, electro-magnetic actuator
  • Electrical: 120 VAC 10.5 AMP / 220 VAC 5.8 AMP, 50-60Hz
  • Weight capacity: 500 lbs. (226.8kg)
  • Net weight: 350 lbs. (159kg)
  • Shipping weight: 390 lbs. (177kg)
  • Shipping dimensions: 30” W x 64” L x 31” H (76.2 cm x 162.6 cm x 78.7 cm)

To View Available Upholstery Colors, see Gallery Image with 16 Color Options.

Please Note: Colors may vary with individual monitor settings and capabilities.

  • Power or manual backrest (model dependent)
  • OneTouch WheelBase® System
  • Foldaway stirrups with four lateral positions, adjustable length
  • Pelvic Tilt (7°)
  • Drawer Warmer
  • Hospital-grade electrical receptacle (patient left)
  • 587 — ADA-compliant TruComfort™ Support Rails
  • 251 — Bierhoff Knee Crutches (pair)
  • 581 — Hand Control (Manual back)
  • 582 — Hand Control (Power back)

UMF FusionFREEDOM Brochure (click to view)
