Edan F9 Express “Loaded” Fetal/Maternal Monitor

Ships in typically 3-4 weeks

Brand New
SKU VM-E03M27102 Category

If you need the Edan F9 Express “Loaded” Fetal/Maternal Monitor you don’t need to look any further. Give us a call or request a quote and let us help you.

Warranty Included
On all products
25+ Years in Business
Trusted since 1998
Lifetime Support
We're always here to help

Description

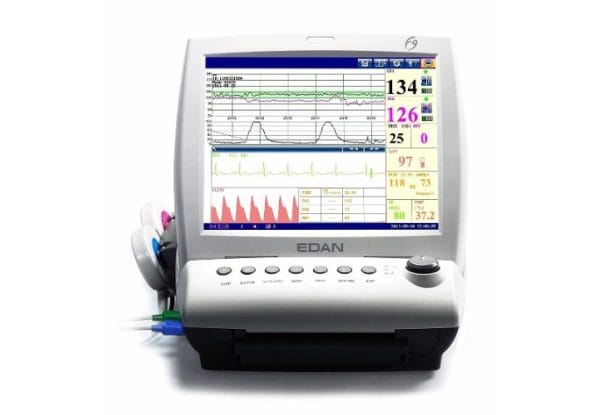

Edan F9 Express “Loaded” Fetal/Maternal Monitor.   F9 is a high-end fetal & maternal monitor; it offers the most advanced integrated monitoring for the delivery room in a big hospital, private obstetrician’s office, and antepartum clinic. F9, designed for moving situations, covers the entire continuum of antepartum, intrapartum, and postpartum applications.

The Edan F9 Express Fetal/Maternal Monitor offers a range of features for enhanced monitoring. It includes basic parameters such as FHR, TOCO, Event Mark, AFM, and internal parameters like IUP and optional DECG. Additionally, it supports 24-hour waveform playback. You can also choose the optional built-in wireless module and software for data transmission to PC.

The Edan F9 monitor prints on 150/152 mm wide paper and supports US/International standard paper with real-time printing speeds of 1, 2, or 3 cm/min. Moreover, it quickly prints stored waveforms and operates with a lithium battery for up to 4 hours of continuous use. The 12.1-inch high-resolution color folding LCD touch-screen ensures easy viewing.

The Edan F9 monitor also includes a probe rack and a wall mounting rack. Call for our best price today!

Additional information

Condition

New

Brand

Edan

  • Basic parameters: IUP, DECG (optional)
  • 4-hour waveforms playback
  • Optional Built-in wireless module
  • Software for data transmission to PC
  • 150/152 mm wide paper
  • Support US/International standard paper
  • 1,2,3cm/min real-time printing speeds
  • Quick printing for stored waveform
  • Lithium battery for 4 hours of continuous working
  • 12.1-inch high-resolution color folding-up LCD touch-screen
  • Probe rack and wall mounting rack
  • Handle for easy carry
  • Optional Fetal Stimulator
  • 12 – crystal pulse wave Doppler water-proof transducer for FHR detection
  • Signal Overlap Verification
  • Maternal parameters: MECG, NIBP, and MSpO2 are available
  • Dimensions: 347 mm x 330 mm x 126 mm
  • Weight: Approximately 6 kg
  • Pulse Repetition Rate: 2KHz
  • TOCO Range: 0% – 100%
  • Zero Mode; Automatic/Manual
  • HR Measurement Range: 30 bpm -240 bpm
  • HR Measuring Accuracy: ± 2 bpm
  • Power Supply: 100 – 240 V
  • Battery: 14.8 V rechargeable Li-ion battery
  • Display: 12.1″ color TFT-LCD
  • Display Resolution: RGB 800 W x 600 H
  • DECG Technique: Peak-peak detection technique
  • ECG Manual control ECG Waveform display
  • ECG Falls off: Detect Automatically
  • SpO2 Measurement Range: 50% – 100%
  • Resolution: 1%
  • NIBP (for an adult) Systolic Pressure: 40 mm Hg – 270 mm Hg
  • NIBP (for an adult) Diastolic Pressure: 10 mm Hg – 215 mm Hg
  • Recorder Paper: Z-fold, 150/152 mm thermosensitive paper
  • Recording Speed: 1/2/3 cm/min., 25 mm/sec for history data

Available Options Sold Separately:

  • Optional Built-in wireless module
  • Optional Fetal Stimulator
  • MT-803 Luxury Trolley for F Series Fetal Monitors: $850
  • MT-207 & Plate F6F9 Center Pole Trolley (roll stand) with Basket and locking Casters (shown below): $375
