Zimmer ATS 4000 Tourniquet System – Refurbished

• Personalized Pressure Technology

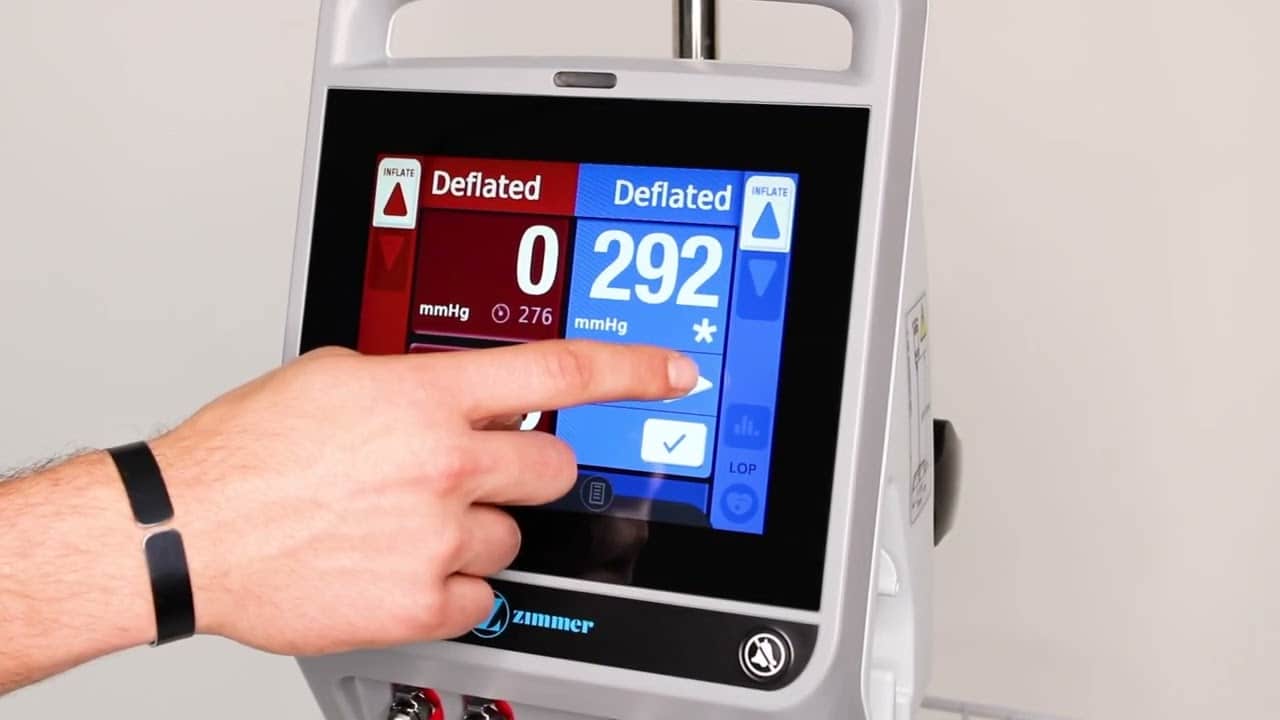

• Touchscreen User Interface
• 8.4″ Color Display
• Self-check Calibration: automatically checks the accuracy of the machine calibration each time the unit is powered on. This saves setup time.
• Cuff Alert: alerts user of cuff status when attempt is made to set the machine to stand-by.
• Cuff Lockout: feature prompts the user to confirm the deflation command during bilateral or IVRA procedures in order to reduce complications due to sudden cuff deflation.
• Six-hour Lithium Ion Battery Backup: maintains pressure if AC power is temporarily lost.
• Color-Coded Cuffs: from 8 inches to 42 inches accommodate virtually all patients and limbs.

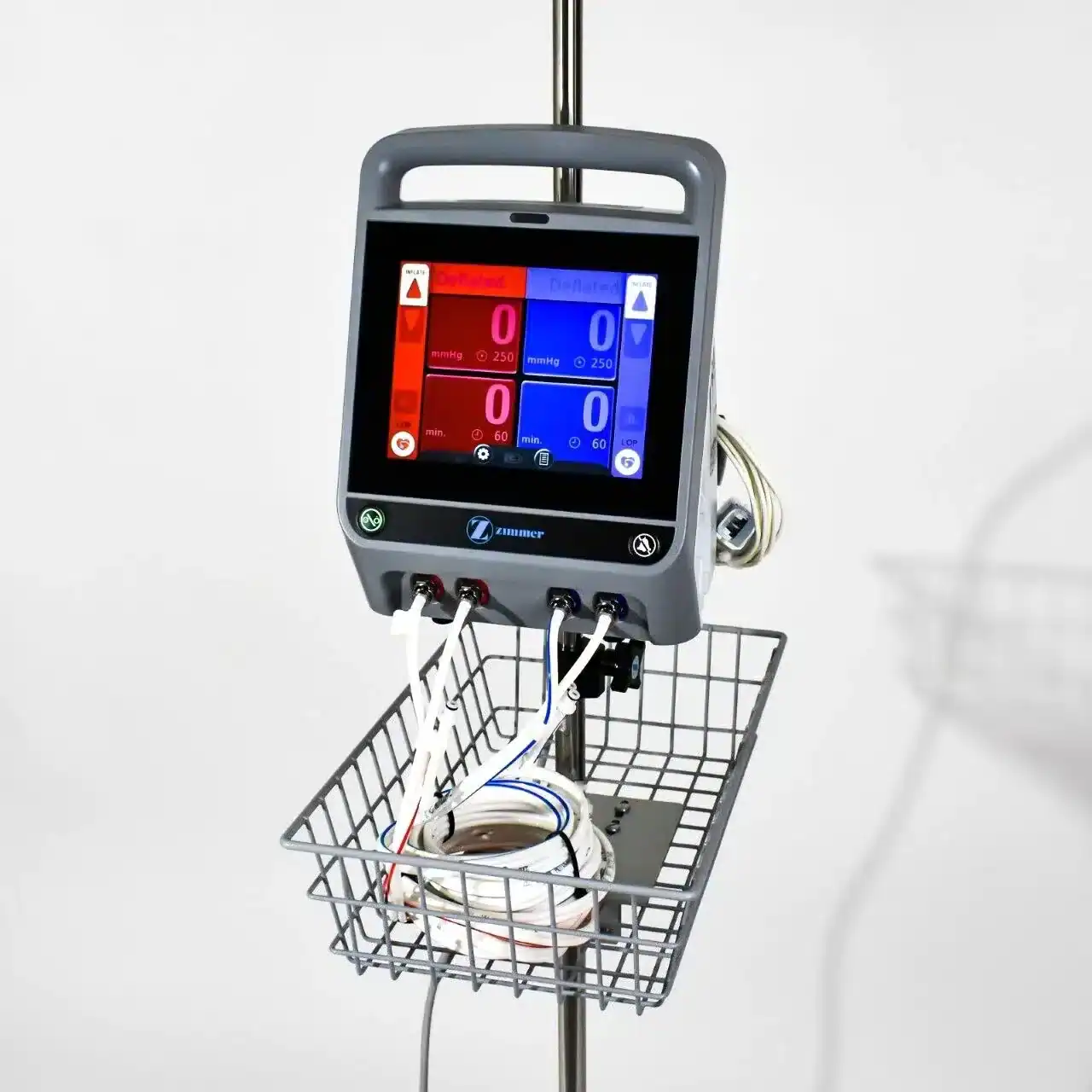

• Carrying Handle: makes the system easy to transport, and includes pull-out hangers for storage of cuffs and hoses. The lightweight, portable unit can be mounted on an IV pole or placed on a table.
• Innovative Limb Occlusion Pressure (LOP) feature
• Uses ambient air
• Uses electronic and microprocessor regulated pressure
• Dual Port, Dual Cuff system: for simultaneous use of two dual port cuffs each with offering independent pressure and time regulation
• Facilitates dual port, dual bladder cuff usage for IVRA/Bier Block procedures
• Uses dedicated ports for supplying and measuring pressure which allows for fast and precise pressure regulations
• Visual and audible alarms activated when an unsafe condition is detected
• 6 Months Warranty
• Completely Refurbished

Measurements:

• Height:13.1 in (33.3 cm)
• Width: 9.3 in (23.6 cm)
• Depth: 10.5 in (26.7 cm)
• weight: 13.2 lbs (6kg)

Timer:

• Time Alarm Set Range: 1 – 240 minute; 1 minute increments
• Timer Accuracy: 0.25% of elapsed time

Power:

• Line Voltage Range: 100 – 240 VAC, 50/60 Hz, Auto Switching
• Line Current: 1000 mA RMS @ 120 VAC
• Input Power: 53 Watts Typical
• Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
• Power Plug: Hospital grade, 3 prong straight blade, 15 Amp

Pressure:

• Cuff Pressure Range: 50 – 400 mmHg, 1 mmHg increments
• Extended Cuff Pressure Range: 401 – 600 mmHg, 1 mmHg increments. A yellow tile will appear requesting confirmation to exceed 400 mmHg pressure
• Pressure Accuracy: ±3 mmHg (50 – 600 mmHg)
• Pressure Regulation: ±4 mmHg of set point (10 second average under non-transient conditions without external leaks)
• Maximum Pressures: 400 mmHg per cuff | 600 mmHg per cuff in extended range

Battery:

• Battery Type: Rechargeable, 14.4 VDC, Li-Ion, 4.3 Amp hours
• Battery Discharge Time: Unit will operate on battery power for 360 minutes minimum with fully charge batteries
• Battery Recharge Time: 10 hours (Maximum). Unit should be plugged in 10 hours before initial use.
