SchureMed Adjustable Foot Board/Table Extension: 800-0285
SchureMed Adjustable Foot Board/Table Extension: 800-0285 - Image 2

SchureMed Adjustable Foot Board/Table Extension: 800-0285

Add to wishlist
Add to quote
Category:

Product Description:

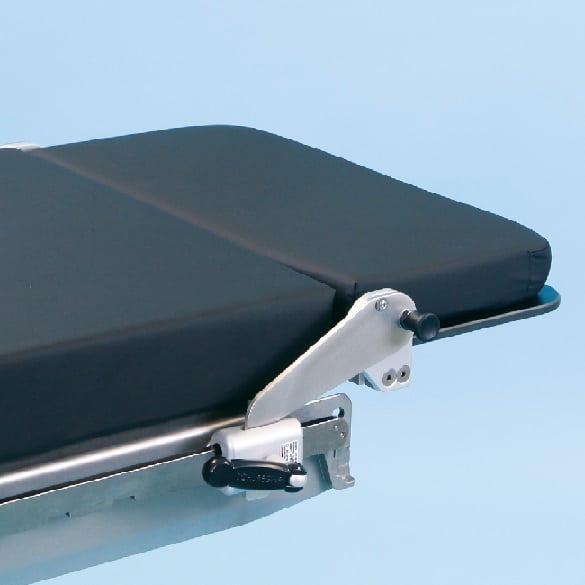

SchureMed Adjustable Foot Board/Table Extension: 800-0285.  The Adjustable Foot Board/Table Extension mounts horizontally as a table extension and vertically as foot support when using reverse Trendelenburg. Pull on both locking knobs to lower the table extension pad to the level of the O.R. table pad or pull knobs to raise to a 90° position.

Note: Required Accessory: Purchase two SpringLoc Clamps sold separately. Please take a look at the tabs for more information.

Note: Click to view any of Venture Medical’s complete catalogs of Surgical Table Extenders & Extensions,  or Surgical Table Accessories.

  • Adjustable Foot Board/Table Extension
  • Simple to set up and easy-to-use
  • 5/8″ Stainless Steel Mounting Post
  • Deluxe foam pads are included
  • Mounts horizontally as a table extension
  • Mounts vertically as a foot support
  • Locking knobs to lower table extension pad to the level of the O.R table pad
  • Can be raised to a 90° position
  • Product is not made with (NRL) Natural Rubber Latex
  • The device supports a 500 lb. proportional patient load (6’4″ tall patient per 99% human body model)
  • The product warranty covers the product from manufacturing defects for two years
  • No maintenance is required beyond proper cleaning
  • The life of the device is five years under normal use

Device Dimensions (maximum)

    • Length: 24” +/- 0.5”
    • Width: 18” +/- 0.5”(Extended)
    • Depth: 10” +/- 0.5” (W/Pad)
    • Device Weight: 13 +/- 0.5 lbs
    • Attaches to the surgical table at the foot section
    • Single-person installation

Available Option Sold Separately:
