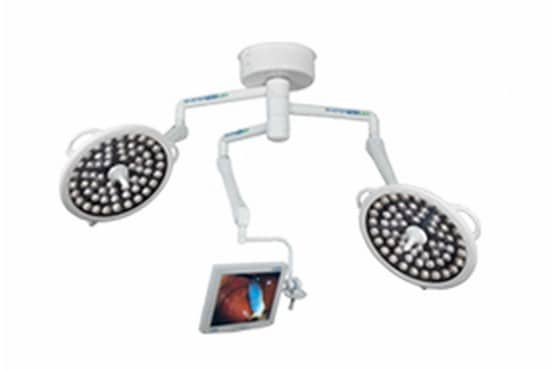

Medical Illumination System Two LED Trio w/Monitor Arm: XLDS-S23MA

Medical Illumination System Two LED Trio w/Monitor Arm: XLDS-S23MA

product ID 782902fc0af5
Add to wishlist
Add to quote
SKU: 782902fc0af5 Category:

Product Description:

Medical Illumination System Two LED Trio w/Monitor Arm: XLDS-S23MA. GREEN TECHNOLOGY: The energy-efficient System Two LED consumes half the electricity of its halogen counterpart. INCREASED EFFICIENCY: Long-life 50,000-hour rated LEDs alleviate the need to purchase and store replacement bulbs and eliminate procedure room downtime due to unexpected bulb burn-outs.

Additional Features:  Output rated at 120,000 Lux with a Kelvin color temperature of 4300°, superior shadow reduction, and designed with the unmatched MI arm system for optimal surgical site visibility and positioning. PROCEDURAL COMFORT: Using System Two LED cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights. COST SAVING: The System Two LED saves the medical facility thousands when compared to standard OR lights currently available.  Please Note: The monitor is not included.  See tabs for more information.

Like to know more about Surgical Lights? Visit Surgical Lights in our Knowledge Center to learn all about them.

  • Green Technology
  • Consumes half the electricity of its halogen counterpart
  • Long-life 50,000-hour rated LEDs
  • Output rated at 120,000 Lux with a Kelvin color temperature of 4300°
  • Superior shadow reduction and designed
  • Unmatched MI arm system for optimal surgical site visibility and positioning (monitor not included)
  • Cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights
  • Saves the medical facility thousands when compared to standard OR lights currently available



  • Light Head Dimensions: 25.2″ Diameter x 4.75″ Deep
  • Arm (Articulated): 4.0″ Diameter (tapered) x 26.0″ Long
  • Ceiling Casting: 17.0″ Diameter x 4.7″ Deep
  • Ceiling Rod: 2.5″ Diameter x 9.0″-43.0″ Long (depending on ceiling height)
  • Trio Ceiling Mount: Approx. 155.5 lbs
  • Ceiling Mount / Extension Arm Interface Rotation: Continuous
  • Articulating / Extension Arm Interface Rotation: Continuous
  • Articulating Arm Vertical Movement: +15º – 65º
  • Articulating Arm /Yoke Interface Rotation: Continuous
  • Yoke / Lamp Head Interface Rotation: +/- 150º (300º Range)
  • Electrical Input Voltage: 100-120 VAC 50/60 Hz – Single Phase
  • LED Life: 50,000 Hours (Average)
  • Duo Light Power: 240 Watts

Medical Illumination System 2 Brochure (click to view)

Available Options Sold Separately:

  • System Two LED Solo: XLDS-S2
  • System Two LED Duo: XLDS-S22
  • System Two LED Trio: XLDS-S23
  • System Two LED Duo with Monitor: XLDS-S2MA
  • System Two LED Duo with HD Video Camera: XLDS-S2VC
