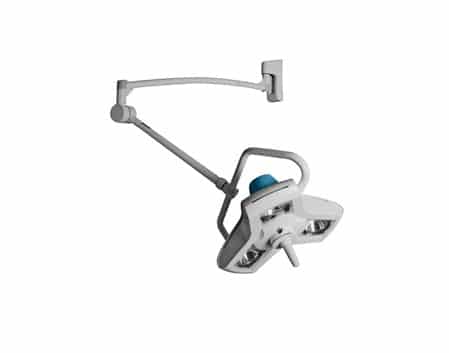

Burton AIM LED Wall Model | ALEDW
Burton AIM LED Wall Model | ALEDW - Image 2

Burton AIM LED Wall Model | ALEDW

product ID VM-E19M15103
Add to wishlist
Add to quote
SKU: VM-E19M15103 Category:

Product Description:

Burton AIM LED Wall Model: ALEDW.   Introducing Burton’s NEW AIM LED Model ALEDDC, the most exciting revolution in diagnostic examination lighting. The AIM LED uses the latest advances in state-of-the-art lighting technology to achieve incredible performance, unsurpassed value, and energy efficiency.

Additional Burton Double Ceiling ALEDW Features: The AIM LED provides 10% more illumination (45,000 Lux at 1 meter) than even the high-performing AIM-50®. A 92 CRI rating produces very accurate color visibility, which is essential for a precise diagnosis. With ten times greater (20,000 hours) lamp life than traditional light source products, you will save more than $1,000 in bulb replacements. Additionally, the AIM LED uses 55% less energy. See tabs for more information.

Like to know more about Surgical Lights?  Visit Surgical Lights in our Knowledge Center to learn all about them.  Click to view Venture Medical’s Complete Catalog of Surgical Lights.

Have Questions?  Contact us today for questions or available options to fit your specific needs!

  • Efficient LED Light Source
  • On-Hand Quick Release for Removable Handle
  • Removable Sterilizable Handle to Adjust Light Pattern
  • Stand-By On/Off Switch
  • Larger and Adjustable Light Pattern
  • Multiple Reflectors can be tilted simply by Rotating the Sterilizable Light Handle
  • Unique Y-shaped design facilitates placement of lighthead around the Physician’s head
  • 360º Limitless arm-system-rotation on single Ceiling Models
  • The Arm System provides a maximum reach of 63″ and a diameter of 10 feet
  • 5-year limited warranty
  • Manufactured in the USA
  • Illuminance: 45,000 Lux at 1 Meter
  • Color Temperature: 4,300ºK
  • CRI (Color Rendering Index): 92
  • The diameter of the Lighthead: is 20 “
  • Light Field Diameter: 13′ – 15″
  • Depth Of Illumination: 54″
  • Focusing: Adjustable by Rotating Center Handle
  • Number of LED Modules: 3
  • Light Sources (LED): Light Emitting Diodes
  • Rated Life Of LED Lamp: 20,000 Hours
  • Swivel Radius of Lamp Housing-Ceiling Mounted: 63″
  • Height Movement of Lamp: 41″ Vertical Movement
  • Minimum Ceiling Height/Maximum Ceiling Height: 8ft/12ft
  • Power: 84 Watts
  • Certifications / Approvals: UL60601-1 /IEC60601-1-2 / IEC60601-2-41 MDD 93/42 EEC (CE Approved) CAN/CSA C22.2601-1 M90
  • Total Weight: Floor Version: 15.9 lbs, Single Ceiling Version: 15.4 lbs
  • Origin: Manufactured in the USA
  • Product Warranty: 5-Year Limited Warranty

Available Option Sold Separately:

  • Seismic Calculations Available: Call for details
