ISOLUX Optilux Fiber Optic Medical LED Light Source Illuminator

If you need the ISOLUX Optilux Fiber Optic Medical LED Light Source Illuminator you don’t need to look any further. Give us a call or request a quote and let us help you.

The sale of this product has been discontinued by Venture Medical. We have other options available. Contact us, we are ready to help!
Add to wishlist
Add to quote
Category:

If you need the ISOLUX Optilux Fiber Optic Medical LED Light Source Illuminator you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

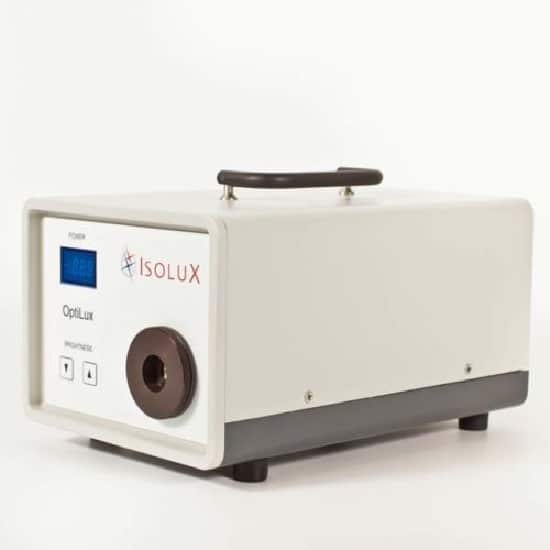

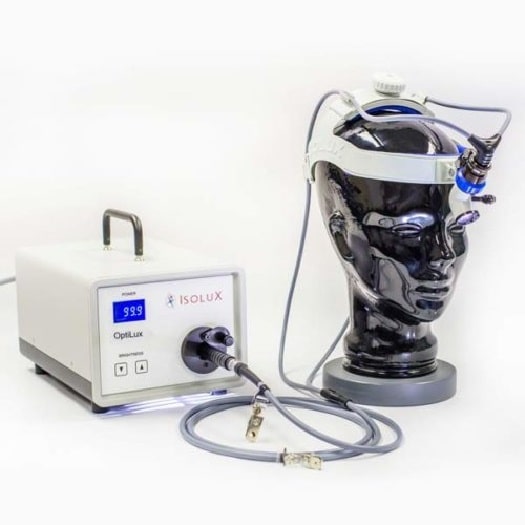

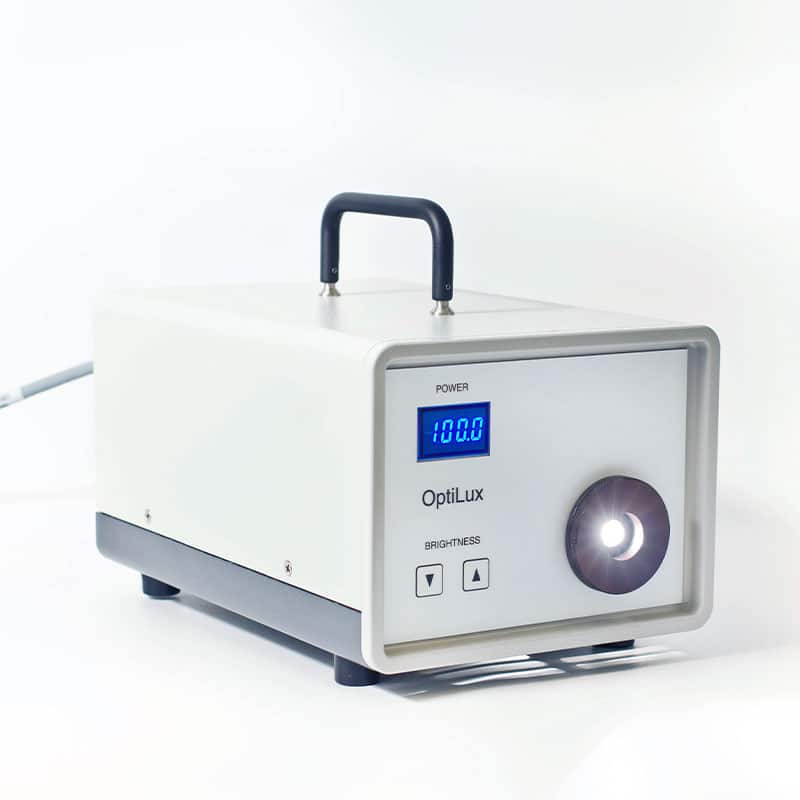

ISOLUX Optilux Fiber Optic Medical LED Light Source Illuminator. OptiLux is an FDA-approved, next-gen fiber optic LED light source by IsoLux. It’s a 125w Xenon-equivalent light source. Designed for use with fiber optic headlamp systems, it emits white light.The Optilux LED Illuminator avoids UV and IR radiation, making it suitable for environments where these radiations are prohibited.

The Optilux Fiber Optic Medical LED Light Source, built in the USA, features a large-area LED chip, custom optics, and 3- to 6mm fiber optic bundles. It includes a heat sink, fan, and linear intensity control. Designed to replace halogen and metal halide bulbs, it ensures stable color temperature, providing a reliable, efficient medical lighting solution.

The New Optilux Fiber Optic Medical LED Light Source eliminates the life and disposal issues of outdated mercury lamps. The Optilux features a large-area LED chip, custom optics for 3- to 6mm fiber optic bundles, a heat sink, and a fan. Its linear intensity control replaces halogen and metal halide lamps, addressing color temperature changes due to intensity and age. This makes it a modern, efficient solution for medical lighting.



The major benefits of the OptiLux fiber optic illuminator are up to 50% power savings, with a long 45,000-hour chip life, reducing ownership costs. It delivers precise wavelengths and color temperatures tailored to your needs. Additionally, the front panel features intensity control (10%-100%) with soft tactile buttons. Its 8ft, 5mm fiber light guide cable produces 130K lux when powered by the white (6000k) chip for optimal performance.

Applications for the Fiber Optic LED Light Source: The OptiLux LED Light Source is designed to be a perfect partner in medical video camera illumination, endoscopy, microscope illumination, and UV illumination applications for photo-sensitive chemical reactions such as UV curing and dental whitening.

  • See tabs for more information.

Lastly, ISOLUX proudly designs and manufactures its wide array of products in the USA at our Naples, Florida, facility.

Looking for additional Surgical Head Lights or Accessories? View our complete Surgical Head Lights, Light Sources, Lamps, and Cables Catalog.

Optilux Fiber Optic Medical LED Light Source Illuminator Specifications:</strong>

  • 80 Watt power saving LED system
  • Intensity variation of 10-100%
  • CRI of more than 96 to give the best tissue rendition
  • 130,000 Lux at the end of an 8ft x 5mm fiber light guide cable
  • Available with a wall mount
  • Environmentally friendly
  • 6,000°K Pure White Light
  • 45,000 hours of LED chip life

    • <li>Light intensity control ranging from 10 – 100%

<div class=”thrv_wrapper thrv_text_element” data-css=”tve-u-173da09c1f5″></p>

Optilux Fiber Optic Medical LED Light Source Illuminator Specifications:

<

/div>

    • Light Intensity: 3,000 Lumens
    • LED Life: 50,000 hours
    • Color Temperature: 6,000 °K</li>&lt;li>Co

lor Rendition Index

: (CRI) 92 Typical

    • Input AC Range: 100 to 240 VAC @ 50 to 60 Hz.
    • Input Power: 80 watts Typical (125w Equivalent)



  • Dimming Range: Electronic 10 to 1
  • Operat



ing Temperatu

<p>

re: -10 to 40 °C

  • Storage Temperature: -10 to 70° C</li>
  • Operating Humidity: 20 to 93 % non-condensing
  • UL Compliant: IEC 60601-1 Safety Tests
  • FDA Certification: FDA Complaint</li>
  • Weight: 9.0 lbs</li>&lt;li>Dimensions: 5.75” H x 7” W x 11” D

IsoLux Warranty Information:

  • Two (2) Years on LED Light Source

Please Choose A Light Source Mount Option When Ordering:

  • Mobile Cart – Standard
  • Mobile Cart with Storage Container
  • Without Cart
