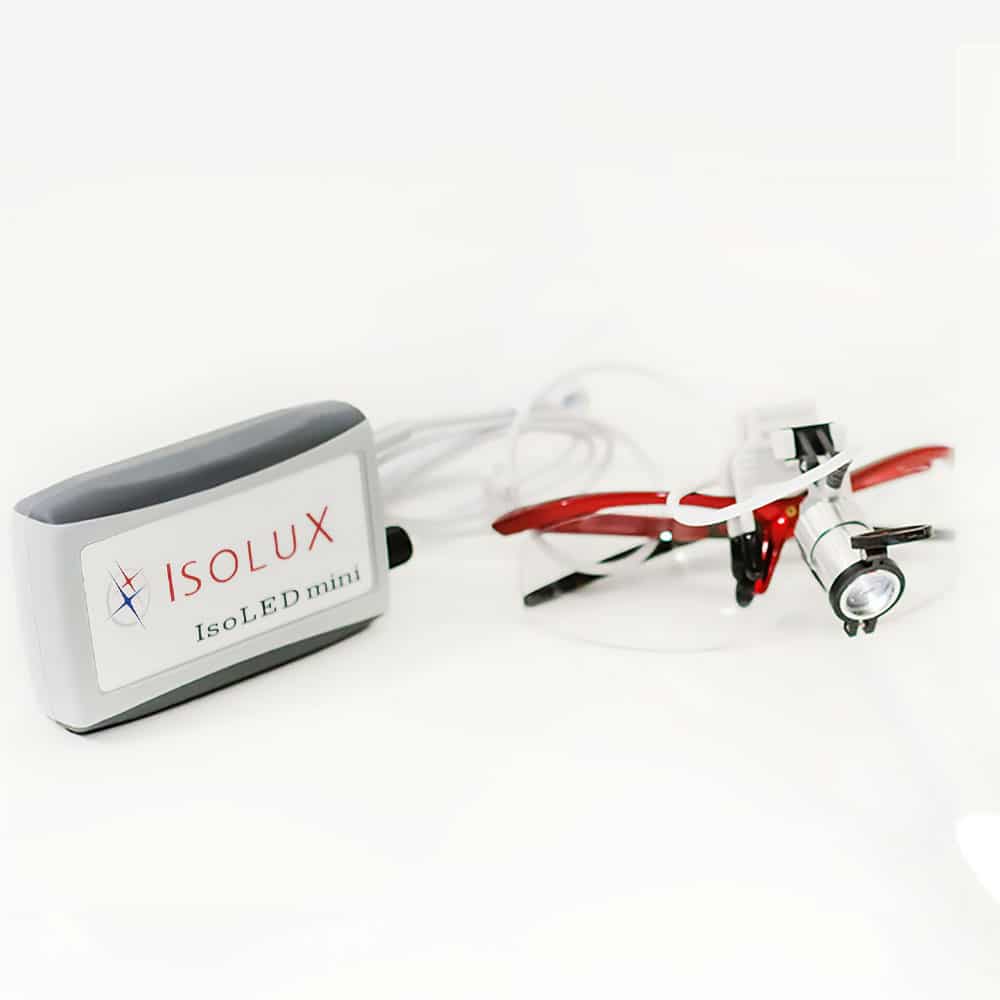

ISOLUX IsoLED Mini Examination Headlight System: IL-2396

The sale of this product has been discontinued by Venture Medical. We have other options available. Contact us, we are ready to help!

Product Description:

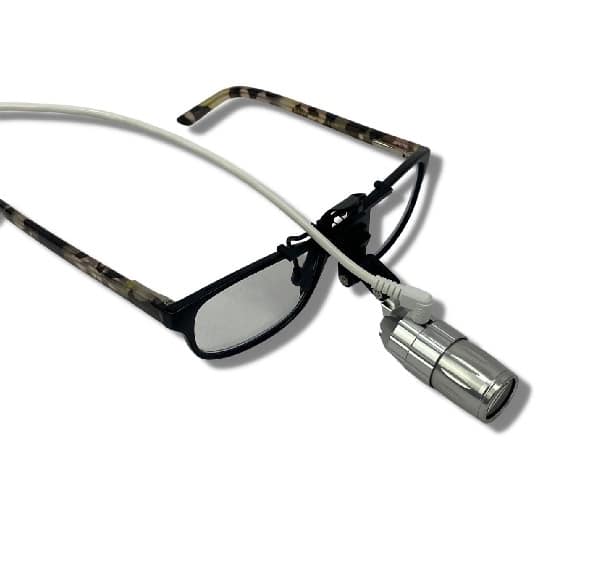

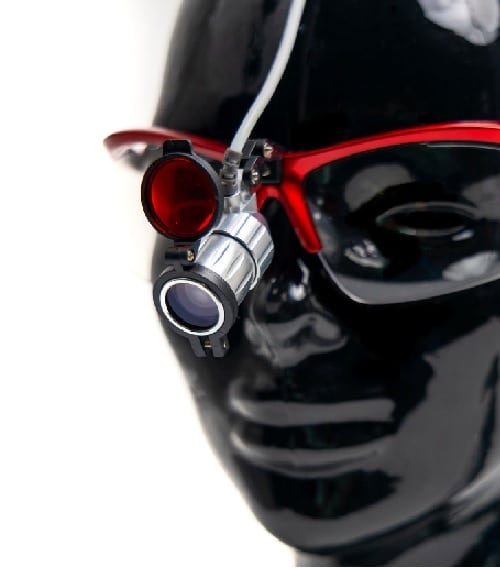

ISOLUX IsoLED Mini Examination Headlight System: IL-2396. Lightweight and versatile, the IsoLED mini LED Examination Headlight allows for unencumbered mobility for the practitioner. The IsoLED mini Examination Headlight lithium battery lasts more than 10 hours at maximum intensity. The mini can be affixed to personal eyeglasses, safety glasses, and soft or hard headsets for additional stability during procedures. In addition, the mini comes with a removable filter that reduces blue and UV light, preventing premature composite curing in dental procedures. Suitable for medical, veterinary, and dental examinations and procedures.

The high-efficiency design of the mini LED Examination Headlight allows for reduced energy consumption and reduced cost of ownership (around 1/3 of halogen lamps). At the same time, its 40,000 hours of LED life provides a free maintenance medical headlamp with an end life of around 20 years. Furthermore, the light beam is extremely homogeneous and free of imperfections to ensure exam headlamp spot clarity.

Our lightweight Lithium battery pack has a retention clip for the practitioner’s belt or pocket. The Mini LED Examination Headlight includes a Battery Charger with an integrated charge monitor that alerts the operator when the Lithium Battery is fully charged.  If you require surgical loupes, this medical headlight adapts to any binocular loupes.

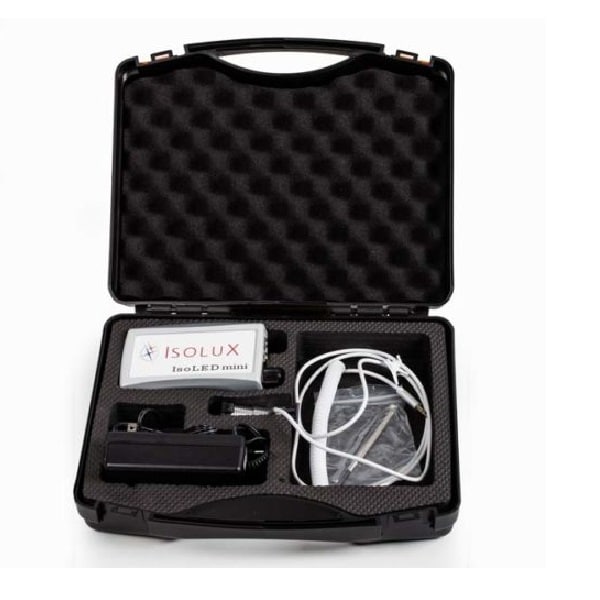

To complete the package, each IsoLED Mini examination headlight comes in a carrying case containing the medical exam headlamp, safety glasses or headset, Lithium Battery pack, two retaining multi-clips, removable yellow filter, battery charger, and exam headlamp User’s Guide.  See tabs (at right) for more information.

Lastly, ISOLUX proudly designs and manufactures its wide array of products in the USA at our Naples, Florida, facility.

Looking for additional Surgical Head Lights or Accessories? View our complete Surgical Head Lights, Light Sources, Lamps, and Cables Catalog.

  • 60mm at 12″
  • 1 oz Headlight Assembly
  • CRI of 92 to give the best tissue rendition
  • Intensity variable from 3-100% to reduce eye strain
  • 22,000 LUX of Pure LED Light

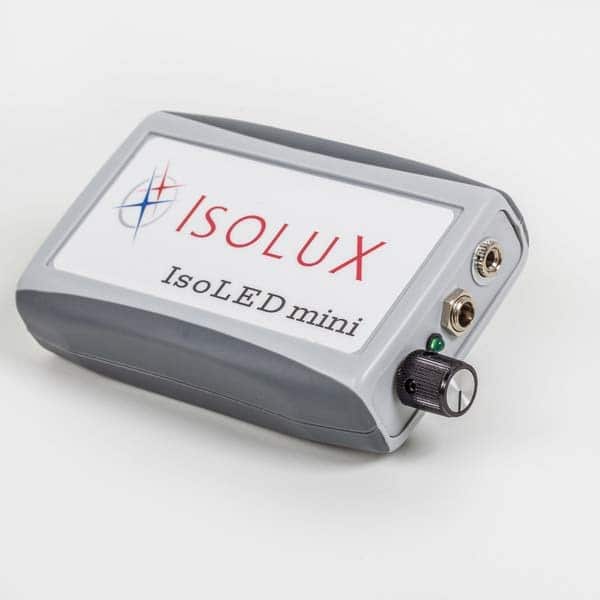

  • IsoLED Lithium Power Pack
  • 11 hours runtime per battery at full intensity
  • Each feather-weight battery only weighs 190 grams
  • Flashing low battery alarm indicator

Each IsoLED mini LED Examination Headlight System Includes


  • IsoLED mini Exam Headlight Assembly with Mount
  • Lithium Battery Pack (Qty: 1)
  • Lithium Battery Charger
  • Safety Glasses (Other Options Available)
  • Storage Case

IsoLux Warranty Information

  • Five (5) Years on LED Headlight
  • One (1) Year on Battery Pack
  • CRI (Color Rendition Index): 92
  • Light Output @ 12″: 22K Lux
  • Power Pack Charge Time: 3.6 hrs
  • Color Temperature: 4500 º K
  • Power Packs Per System: (Qty 1)
  • Variable Intensity: 3-99%
  • Power Pack Operating Time: Up to 10hrs 50mins
  • Typical Use: Dental / Examination / Veterinary
  • Weight: 48oz
  • Dimensions: 12 x 12 x 15 in

IsoLED mini variations:

  • IsoLED mini Headlight (only), IsoLED mini

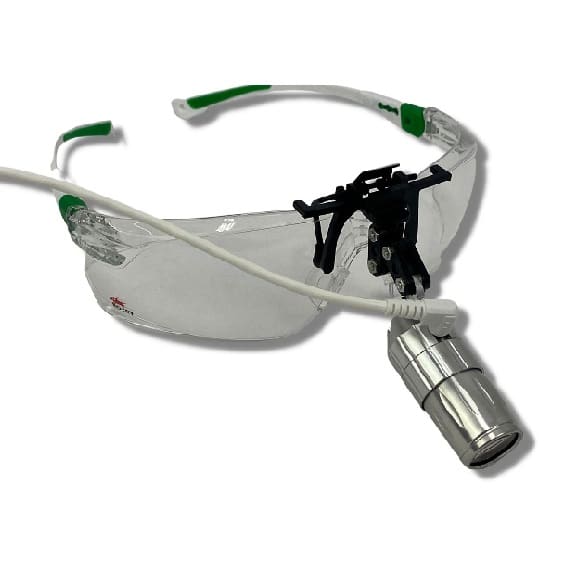

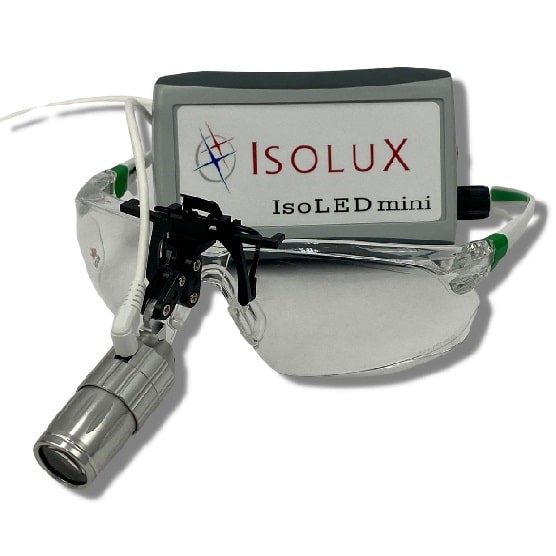

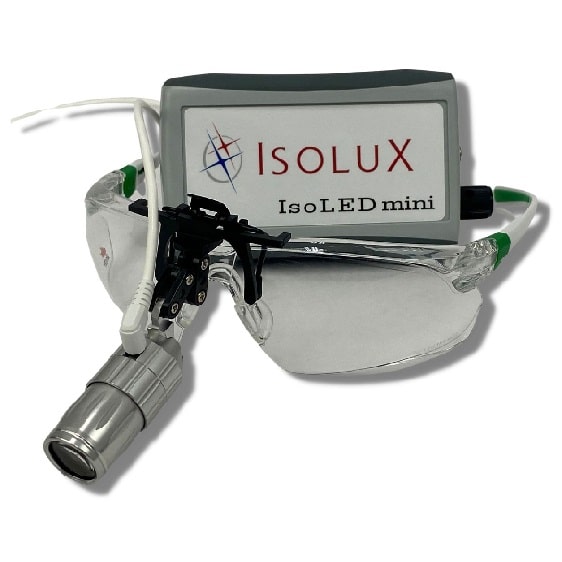

  • Headlight attached to safety glasses, IsoLED mini

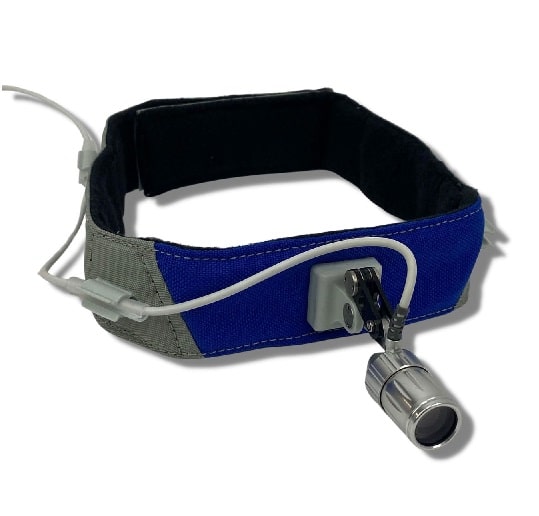

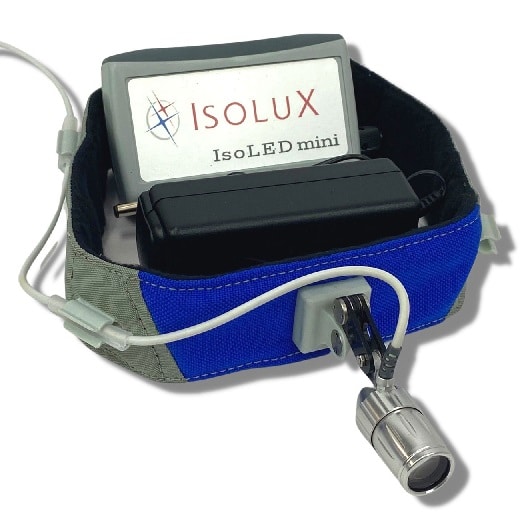

  • Headlight attached to the headset
