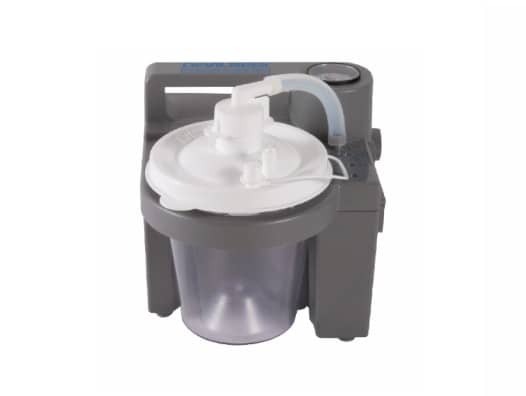

Drive Vacu-Aide® Suction Unit: 7305D-D-EXF

Drive Vacu-Aide® Suction Unit: 7305D-D-EXF

Add to wishlist
Add to quote
Category:

Product Description:

Vacu-Aide® Suction Unit 7305D-D-EXF.  DeVilbiss has delivered the best portable suction options for over twenty years. The DeVilbiss 7305 Series Homecare Suction Unit meets suction and capacity requirements in a small, lightweight design. The DeVilbiss 7305 Series Homecare Suction Unit is a compact medical suctioning device for reliable, portable operation.

Additional Features: Because of the small size, lightweight, and DC operation, the DeVilbiss 7305 Suction Unit is ideal for providing suction in the home or on the go with the DC cord. The 7305P series with an internal rechargeable battery is also available. Two options are the 800 ml disposable container and the optional long-term reusable 1,200 ml container.  See tabs for more information.

Are you looking for a specific model of Concentrator?  Click the following link to view Oxygen Concentrators.

In addition, we offer Pediatric Respiratory Equipment. Click the link to view.

  • High Performance – Vacuum adjustments allow for 80-550 mm Hg and a free flow of 27 LPM
  • Adjustable Flow Regulator – Easy-to-turn knob conveniently placed directly below gauge for easy use and control. The knob has a safety lock feature which will not allow the knob to be twisted off
  • Increased Battery Capabilities – For use up to one hour. Provides the patient with added security when needed most
  • The high flow capabilities (27 LPM) of the HomeCare Suction Unit can return a patient to a state of comfort quickly
  • Dimensions 9”.x 7.0 “x 8.0” (22.9cm x 17.8cm x 20.3cm)
  • Weight: 3.8 lbs (1.7 kg)
  • Electrical Requirements: 100-240 V AC 50/60 Hz .75 A max; 12 V DC, 33 W max
  • Battery: Series Internal Rechargeable Battery Not Factory Equipped (provider-installed option)
  • Vacuum Range: 80 to 550 mm Hg
  • Hg Air Flow @ pump inlet: 27 LPM (free flow) typical (it may be less when running from the internal battery)
  • Disposable Container Capacity: 800 ml (cc)
  • Reusable Container Bottle Capacity: Optional 1,200 ml (cc)
  • Warranty: Two-years limited, excluding container
  • Internal Battery Warranty: 90-day
  • Approvals IEC 601-1; CAN/CSA-C22.2 No. 601.1-M90; UL 60601-1, EN 60601-1-2

Drive Vacu-Aide® Suction Unit 7305D-D-EXF Brochure (click to view)

Available Options Sold Separately:

Disposable Container Kits and Parts:

  • 7305D-603 External Filter Disposable Container Complete Kit (800 ml disposable container, bacteria filter, elbow, 3-3/8” and 6’ tubing)
  • 7305D-602 External Filter Disposable Container (48 pack) (container and lid)
  • 7305D-633 Collection Container Kit (800 ml disposable container, filter cartridge, 4-3/8” and 6’ tubing package)
  • 7305D-632 800 ml disposable container with filter cartridge and 4-3/8” tubing (48 each)
  • 7305D-635 Filter cartridge (12 pack) (For Disposable Container)
  • 7305D-608 External filter (12 pack) 6305D-611 6’ Patient Tubing (container and lid)

Reusable Container Kits and Parts:

  • 7314D-603 Collection Container Kit (1200 ml reusable container, bacteria filter, elbow, 3-3/8” tubing)
  • 7314D-604 1200 ml reusable container (bacteria filter, elbow, 3-3/8” tubing) (6 pack)
  • 7305D-608 External filter (12 pack)
