Stryker Prime X™ X-ray Stretcher – Refurbished

product ID VM-E24M76101-1

If you need the Stryker Prime X™ X-ray Stretcher you don’t need to look any further. Give us a call or request a quote and let us help you.

SKU: VM-E24M76101-1 Category:

If you need the Stryker Prime X™ X-ray Stretcher you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

Stryker Prime X™ X-ray Stretcher: Refurbished. The Prime X Series Stretcher is a versatile platform that improves patient care, imaging accessibility, and mobility in hospitals. With three models available—1105X, 1115X, and 1125X—the Stryker Prime X meets various clinical needs. Furthermore, equipped with Stryker’s ClearView Technology, the dual-deck design allows seamless X-ray imaging and enhanced mobility in critical care. The Prime X is reliable, safe, and comfortable for both caregivers and patients, whether for transport, imaging, or surgery.

The Prime X Stretcher Features: ClearView Technology with a dual-deck design that allows 360° cassette positioning for high-quality X-ray imaging, similar to traditional X-ray tables. Three models offer advanced mobility: the 1105X with fifth-wheel steering for better maneuverability, the 1115X with Big Wheel Advanced Mobility System for reduced push force and improved control, and the 1125X with Zoom Motorized Drive System to minimize manual effort. Furthermore, it supports patients up to 700 lbs (318 kg) for bariatric needs and includes Glideaway Siderails for unobstructed lateral imaging access and compact storage.

The user-friendly design includes dual-sided hydraulic controls, integrated IV poles, oxygen bottle holders, and ergonomic push handles. Furthermore, safety is ensured with a four-wheel, center-locking brake system with dual-end activators. Additionally, an optional powered lift is available for the 1105X and 1115X models for effortless height adjustments.

Movements:

  • Height Adjustment (Foot Pedal, Manual)
  • Fowler / Back Rest
  • +/- Trendelenburg

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process

  • Clearview Technology Platform
  • Thermoformed ABS base with extra capacity storage tray
  • 318 Kg weight capacity
  • Oxygen bottle holder
  • Integrated transfer board

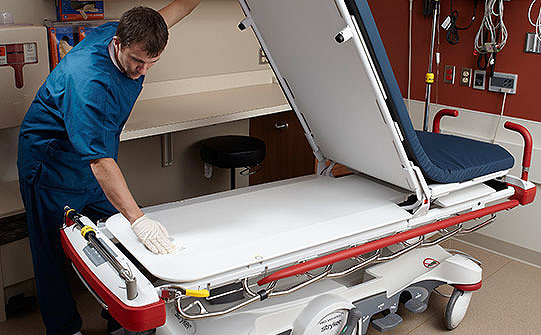

  • Power-washable design (1105X and 1115X only)
  • Four-wheel, center-locking brake system with dual end activators
  • Dual, side-mounted foot control hydraulics with uni-lower pedal
  • Glideaway siderails
  • 4 integrated IV receptacles
  • +/– Trendelenburg
  • 20 cm Omni Surface Castors with integrated wheel covers
  • Pneumatic backrest/stationary foot
  • Dual end brake/steer controls

Prime X Spec Sheet EN (click to view)

Model number:

1105X (Prime X Stretcher with Fifth Wheel)*

1115X (Prime X Stretcher with Big Wheel Advanced Mobility)*

1125X (Prime X Stretcher with Zoom Motorized Drive System)*

Overall length:

Siderails up 96.5 cm (38”)

Siderails down (1105X and 1115X) 77.5 cm (30.5”)

Siderails down (1125X) 77.5 cm (30.5”)

Patient surface:

76 x 191 cm (30” x 75.25”)

Weight capacity:

318 kg (700 lbs)

Height range:

High (1105X and 1115X) 92.7 cm (36.5”)

High (1125X) 86 cm (34”)

Low (1105X and 1115X) 59.1 cm (23.25”)

Low (1125X) 58 cm (23”)

Litter positioning:

<p>Backrest 0°–90° (±5°)

Trend./Reverse Trend. (1105X and 1115X) ±17° (±3°)

Trend./Reverse Trend. (1125X) ±16°

Siderails 36 x 147 cm (14” x 57.75”)

Castor diameter:

20 cm (8”)

EMC:

IEC 60601-1-2

Note: Stryker reserves the right to change specifications without notice.

Available Accessories  Sold Separately:

  • 10 cm (4 in) or 13 cm (5 in) mattress
  • Four-sided brake and steer controls (1105X and 1115X only)
  • Pop-up push handles (1105X and 1115X only)
  • Three-sided hydraulic controls (1105X and 1115X only)
  • Foot-end push handles (1105X only)
  • Dual-ended siderail release
  • Footboard/chartholder
  • IV caddy
  • Serving tray
  • IV poles: Permanent folding two- or three-stage at foot end, Removable
  • Serving tray holder/footboard
  • Siderail pads
  • Upright oxygen bottle holder
  • Restraint straps
  • Powered lift (1105X and 1115X only)
  • 120V or 240V available
  • Lateral cassette holder
  • Upright cassette holder
  • Defibrillator tray
  • Defibrillator tray/foot extender/ charting surface

Prime X Brochure (click to view)

1105X Fifth Wheel Steering Retractable Fifth Wheel that makes for easy cornering in tight spaces.
1115X Big Wheel Advanced Mobility Big Wheel can reduce push force by 50% and steering effort by 60%.
1115X Big Wheel Advanced Mobility with Scale Big Wheel can reduce push force by 50% and steering effort by 60%. Integrated scale helps reduce patient transfers and makes patient care efficient.
