Pedigo Eye, Neck, & Head Stretcher: 7500-NE

product ID 2414022065c2

If you need the Pedigo Eye, Neck & Head Stretcher you don’t need to look any further. Give us a call or request a quote and let us help you.

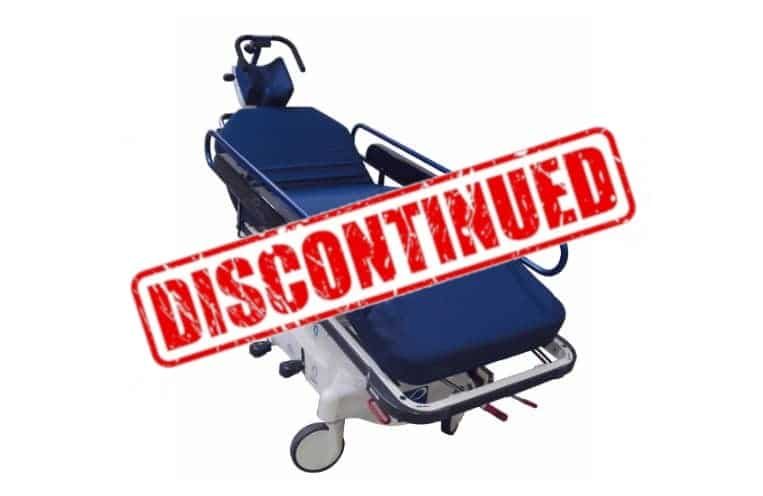

The sale of this product has been discontinued by Venture Medical. We have other options available. Contact us, we are ready to help!
SKU: 2414022065c2 Category:

If you need the Pedigo Eye, Neck & Head Stretcher you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

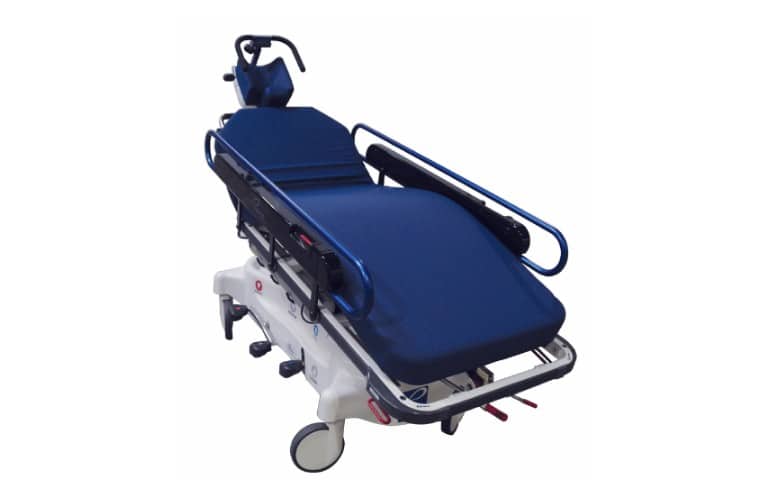

Pedigo Eye, Neck & Head Stretcher model number 7500-NE. The new 7500-NE Stretcher is designed for eye, neck, and head surgeries. It features a solid steel column, single hydraulic cylinder, sixteen ball bearings for smooth movement, and IS6 six-wheel steering. The stretcher supports a 750 lb. weight capacity.

Additional 7500-NE Stretcher Features:  A Rail System that is easy to wipe, clean, and disinfect in the ongoing battle with germs and bacteria. The 56″ stainless steel side rail adjusts infinitely and locks at any height without interfering with the surgical process or patient entry and exits onto the stretcher.

Pedigo’s ergonomic Quick-Release O2 Tank Holder mounts side-under the litter, reducing caregiver bending (US Patent 7,865,984 B2). Additionally, the retractable push handles easily extend or retract by engaging the safety release lock and rotating each handle upward. The hydraulic foot pedals, located on both sides within the patient care zone, feature color-coded graphics for quick and easy recognition.

  • See tabs for more information.
  • 750 lbs. weight capacity rating
  • Stainless steel glide side rails
  • Pneumatic articulating head & neck rest
  • Pads – 4″ Head & 6″ Neck
  • 4″ Premium mattress
  • Four IV pole receptacles
  • Four restraint strap positions
  • Quick-Release O2 Tank Holder (US Patent 7,865,984 B2)
  • Integrated push/pull handles with latch release
  • Pneumatically adjustable fowler
  • Mechanical Level Lock
  • Hydraulic recovery knee gatch
  • Hydraulic height adjustment – dual side-mounted foot pedals
  • Instant Steer – Six-Wheel Steering
  • Single-column hydraulic cylinder design
  • Brake foot pedals
  • 8″ easy mobility casters
  • Latex Free
  • Weight Capacity: 750 lbs</li>
  • Overall
  • Length: 88″
  • Overall Width: 34″
  • Height Range – Low:  23″
  • Height Range – High: 32.75″
  • Fowler Backrest: 0º-90º
  • Trendelenburg: +12º
  • Reverse Trendelenburg: -7º
  • Head Rest Range: Up 1.5″, Down 1.5″
  • Total Head Rest Range: 3″
  • Head Rest Tilt Range: 30º – 18º
  • Patient Surface: 82: x 30″
  • Side Rails: 12.5″ x 56″
  • Casters: 8″
  • Warranty: 1 Year parts and labor

Available Options Sold Separately:</strong>

Factory Installed Options:

  • IV Pole: Fixed, Adjustable/Removable, Adjustable/Attached, or Fold Down
  • IV Pole Caddy
  • Restraint Strap Options: Velcro or Buckle
  • Fowler Options: Pneumatic or Electric

Additional Options:

  • Stirrups with Adapter
  • Monitor Tray Board with Chart Holder
  • Push/Pull Bar with Optional Chart Holder
  • Vertical O2 Tank Holder
