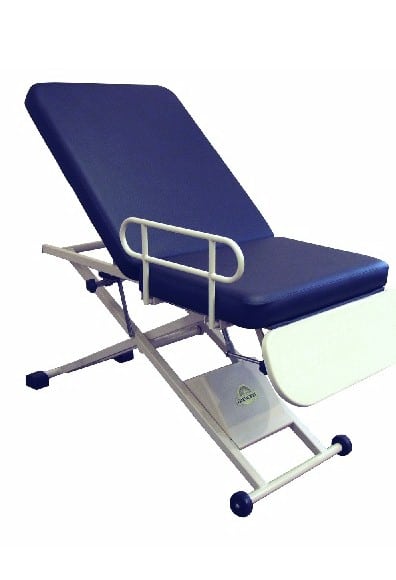

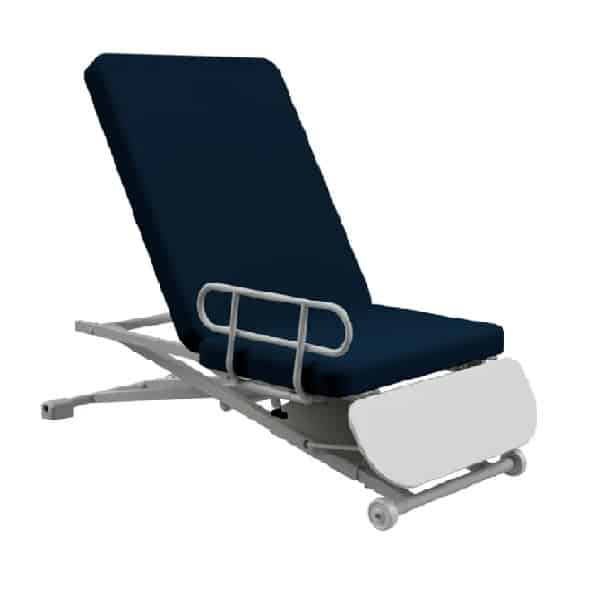

Oakworks Orthopedic Hi-Lo Casting Table

product ID VM-E11M57109
Add to wishlist
Add to quote
SKU: VM-E11M57109 Category:

Product Description:

Oakworks Orthopedic Hi-Lo Casting Table. The Hi-Lo Casting Table is the best solution to minimize back-breaking work associated with lower extremity casting! The 17″ to 35″ electric height range makes wheelchair transfer safe and easy.  This table is a cost-effective component of the Ergonomic Safety Lift Plan of any medical facility. The table is FDA Listed, ETL Approved, and CE Marked.

Additional Hi-Lo Casting Table Features:  The 550 lb Bariatric lift capacity and load patient weight rating means no more heavy lifting!  Its unique polymer casting surface allows for easy clean-up of casting materials.  To view Upholstery Color Choices, see the Color Chart image in the Gallery.  To customize to meet your needs, see “Options”.  See tabs for more information.

To view additional Power Tables and Chairs, click the following link to browse Venture Medical’s Complete Catalog of New and completely Refurbished Exam, Treatment, and Procedure Power Tables and Chairs.

  • The best solution to minimize back-breaking work associated with lower extremity casting
  • Lift-Assist 3 Section top
  • 17″ to 35″ electric height range makes wheelchair transfer safe and easy
  • A cost-effective component to any medical facility Ergonomic Safety Lift Plan
  • 550 lb Bariatric lift and load patient weight rating means no more heavy lifting
  • Unique polymer casting surface allows for easy clean up of casting materials
  • Side Rail (specify which side)
  • Medical Grade Padding
  • TerraTouch™ Upholstery
  • 1 Hand Control Included
  • FDA Listed, ETL Approved, CE Marked
  • Maximum working load: 550 lbs.
  • Weight: 275 lbs.
  • Motions: Electric Height: 17″-35″, Lift-Assist Backrest: 0-90º, and Manual Leg Section: 10-90º
  • Length: 73″
  • Top: Two breaks (3 section top)
  • Fowler Back: 38″, Stationary Midsection: 22″, Head Section: 10″
  • Padding: Medical Grade
  • Upholstery: TerraTouch
  • 1 Hand Control Included
  • Electronics: Single 110 Volt Motor
  • Controls: Low Voltage; 1 Foot, 1 Hand
  • Frame: Dual cross-beam, heavy gauge welded steel
  • Regulatory: CE, ETL
  • P/N: 69268

To View Oakwork’s Available Upholstery Colors with Names see the image in the Gallery above.

Please Note:  We strive to ensure that the colors displayed on our product imagery (online and in print) are as accurate as possible. However, due to the limitations of printers, scanners, computer monitors, and other equipment, the colors may not be accurate.

Available Options are Sold Separately.

  • Non-USA electric system (73134) – please contact us for order details
  • Locking Twin Casters (63400) – (one end of the table) To easily move your table in the room
  • Second Side Rail (63264) – 23.5″ (60cm) long x 6″ (15cm) tall (from the surface of the table)
  • Hand Control – Controls powered movements

Recommended Options:

  • Universal Table Extender with 3″ Padding (74735) – 21″ W x 12.5″ L
  • Universal Table Extender with 4″ Padding (74736) – 21″ W x 12.5″ L
