Burton Nuance Elite LED Under Cabinet Lighting

product ID VM-E30M15105
SKU: VM-E30M15105 Categories: ,

Product Description:

Burton Nuance Elite LED Under Cabinet Lighting.  Nuance Elite is a modular concept that easily adapts to almost any task-light application. The LED fixtures are available in three lengths and can be plugged together to create a continuous row of under-cabinet lighting. Various interconnecting cords and wiring components can be selected to provide alternative wiring approaches or customized solutions.

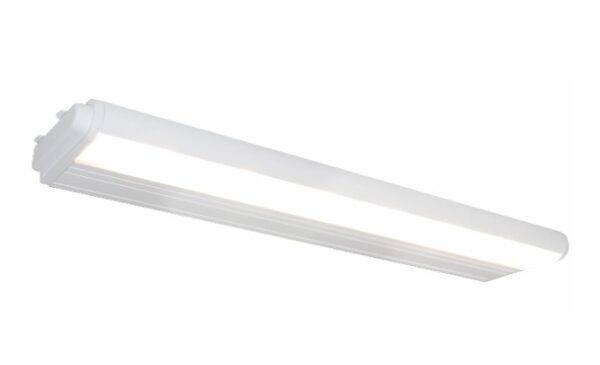

Additional Nuance Elite LED Under Cabinet Lighting:  The LED source delivers high-quality illumination with minimal maintenance required.   Nuance Elite is simple to install, maintain, and simple to use.  Sample Model (shown above) No: NEL100-L19-120-WHG-OSC 19″  Nuance Elite 6 IW LEDs, 120V, White Glossy with Integral Occupancy Sensor Control.  Call for additional sizes and pricing.  See tabs for more information.

Like to know more about Surgical Lights?  Visit Surgical Lights in our Knowledge Center to learn all about them.  Click to view Venture Medical’s Complete Catalog of Surgical Lights.

Have Questions?  Contact us today for questions or available options to fit your specific needs!

  • The LED source provides >70% energy savings over halogen solutions with a CRI (Color Rendering Index) of 85 and no projected heat or UV
  • Each fixture has its own On/Off switch or a wiring module (with switch) can be used to control a complete row of interconnected fixtures from one switch
  • The optional integral occupancy sensor promotes additional energy savings by turning off-task lights when no one is present
  • Nuance Elite can be installed four times faster than conventional under-cabinet fixtures
  • Easily adapts to almost any task-light application
  • Available in a white painted or satin aluminum finish and three different lengths
  • Can be plugged together to create a continuous row of undercabinet lighting
  • A variety of interconnecting cords and wiring components can be selected to provide alternative wiring approaches or customized solutions
  • 5-year limited warranty
  • Assembled in the USA
  • Certifications/Approvals
  • UL and CUL listed for both direct-wired and portable installations

Technical Specifications:

  • The extruded aluminum housing has a 1″ (2.54 cm) profile allowing it to be easily concealed in under cabinet applications
  • The LED source provides >70% energy savings over halogen solutions with a CRI (Color Rendering Index) of 85 and no projected heat or UV
  • Each fixture has its own On/Off switch or a wiring module (with switch) can be used to control a complete row of interconnected fixtures from one switch
  • The optional integral occupancy sensor promotes additional energy savings by turning off-task lights when no one is present
  • Nuance Elite can be installed four times faster than conventional under-cabinet fixtures
  • Available in a white painted or satin aluminum finish
  • 5-year limited warranty
  • Assembled in the USA
  • P/N: NEL100-L19-120-WHG-OSC

Certifications/Approvals:

  • UL and CUL listed for both direct-wired and portable installations

Please specify the included options below:

Nuance Elite Model Finish Options:

  • NEL100-L10 = 10″ (25 cm) 3 1W LEDs
  • NEL100-L19 = 19″ (48 cm) 6 1W LEDs
  • NEL100-L28 = 28″ (71 cm) 9 1W LEDs

Voltage:

  • 120 = 120V
  • 277 = 230 / 240V

Finish:

  • WHG = White Glossy
  • SA = Satin Aluminum

Available options below are sold separately:

  • CSJT-31,2 = SJT Cord Set Hard-Wired into the Back of the Fixture. UL is Listed as a Portable Fixture for Use in Office Workstations. (120V only)
  • OSC3 = Integral Occupancy Sensor Control
  • NEL100-14,5 = Wiring Module
  • NEL100-1/RSW4,5 = Wiring Module with Rocker Switch
  • NEL100PC62,5 = 6′ (183 cm) Straight Power Cord
  • NEL100ICS2,5 = 6″ (15 cm) Straight Interconnect Cord

Note: Power cords plug into the left end of the luminaires. Power cords may not be used for 277 V applications.

  1. Nuance Elite fixtures with the CSJT-3 option cannot be modularly connected.
  2. To designate the cord color, add a “W” for white or a “B” for black to the model number. (Example: NEL100ICSW).
  3. OSC is not available with NEL100-L10.
  4. Specify voltage and finish for these options.
  5. Specify Qty. of Connectors Needed.
