Burton Nightguide D LED Lights | NGD2V

Burton Nightguide D LED Lights | NGD2V

product ID VM-E30M15104

Come see the Burton NGD2V Nightguide D LED Lights. We offer new & refurbished products at competitive prices. Call Today.

Add to wishlist
Add to quote
SKU: VM-E30M15104 Category:

Come see the Burton NGD2V Nightguide D LED Lights. We offer new & refurbished products at competitive prices. Call Today.

Product Description:

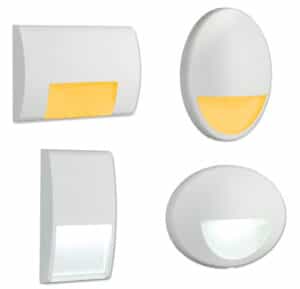

Burton NGD2V Nightguide D LED Lights.   There are no compromises with Nightguide D. Four different faceplate styles provide options for blending into any space’s décor. The high-power LED source and optical lens deliver glare-free illumination to the pathway. The installation method eliminates exposed fasteners and enables Nightguide D to be used in wet location environments.

Additional Nightguide D LED Light Features: Sealed optical compartment and smooth surface allow for simple cleaning of the faceplate, LED sources are available in either white light or amber light so as not to disrupt melatonin production and sleep/wake cycles, and Soft White antimicrobial paint finish supports a facility’s infection control protocol.

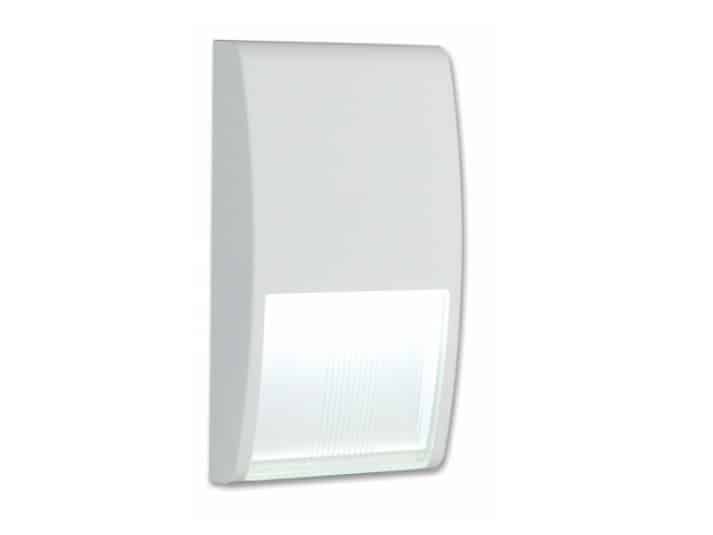

An optional integrated photocell control shuts off the Nightguide D when pathway lighting is unsought. Nightguide D installs into an existing NEMA single-gang junction box, a 1900 junction box with a single-gang plaster ring, or the provided single-gang junction box, consuming only 3 watts of power. The Nightguide D LED Light, model NGVD2V-PCC (rectangle with white light), appears in the image.

  • See tabs for more information.
  • No compromising with Nightguide D
  • Blends into any space’s décor
  • High-power LED source and optical lens
  • Illumination is delivered to the pathway with no visual glare
  • The mounting method eliminates exposed fasteners
  • The Nightguide D is to be used in wet location environments
  • The sealed optical compartment and smooth surface allow simple cleaning of the faceplate
  • The LED source is available in either white light (2850 K) or amber light (590 nm) shown below to not disrupt melatonin production and sleep/wake cycles
  • The Soft White antimicrobial paint finish supports a facility’s infection control protocol
  • 5-year limited warranty
  • Assembled in the USA

Technical Specifications:

  • The sealed optical compartment and smooth surface
  • The LED source
  • Soft White antimicrobial paint finish
  • Nightguide D installs into an existing NEMA single-gang junction box, a 1900 junction box with a single gang plaster ring, or with the provided single-gang junction box
  • Energy Consumption: 3 watts of power
  • Tamper-resistant mounting hardware is supplied with the fixture
  • 5-year limited warranty
  • Assembled in the USA

Certifications/Approvals:

  • ETL
  • CETL is listed for wet locations (standard orientation only)

Please specify product codes/options listed below:  Sample Model No: NGD1V-1-120-PCC = Nightguide D, White LEDs, 120V, Photocell Control.

Style:

  • NGD1V = Vertical Oval
  • NGD2V = Vertical Rectangle
  • NGD1H = Horizontal Oval
  • NGD2H = Horizontal Rectangle

Color Source:

  • 1 = White
  • 2 = Amber

Voltage:

  • 120V
  • 277V

The available option listed below is sold separately:

  • PCC = Photocell Control
