Product Description:

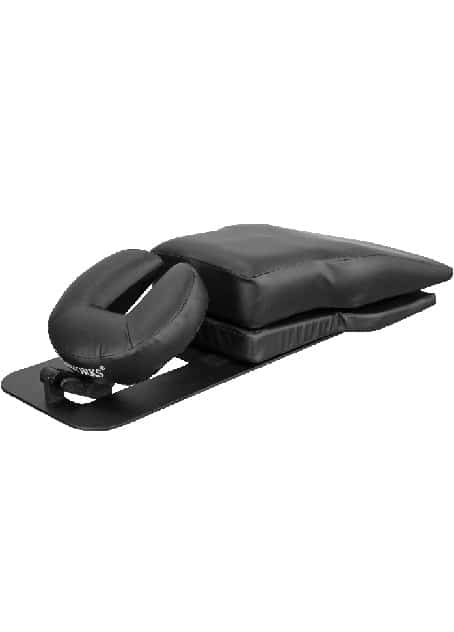

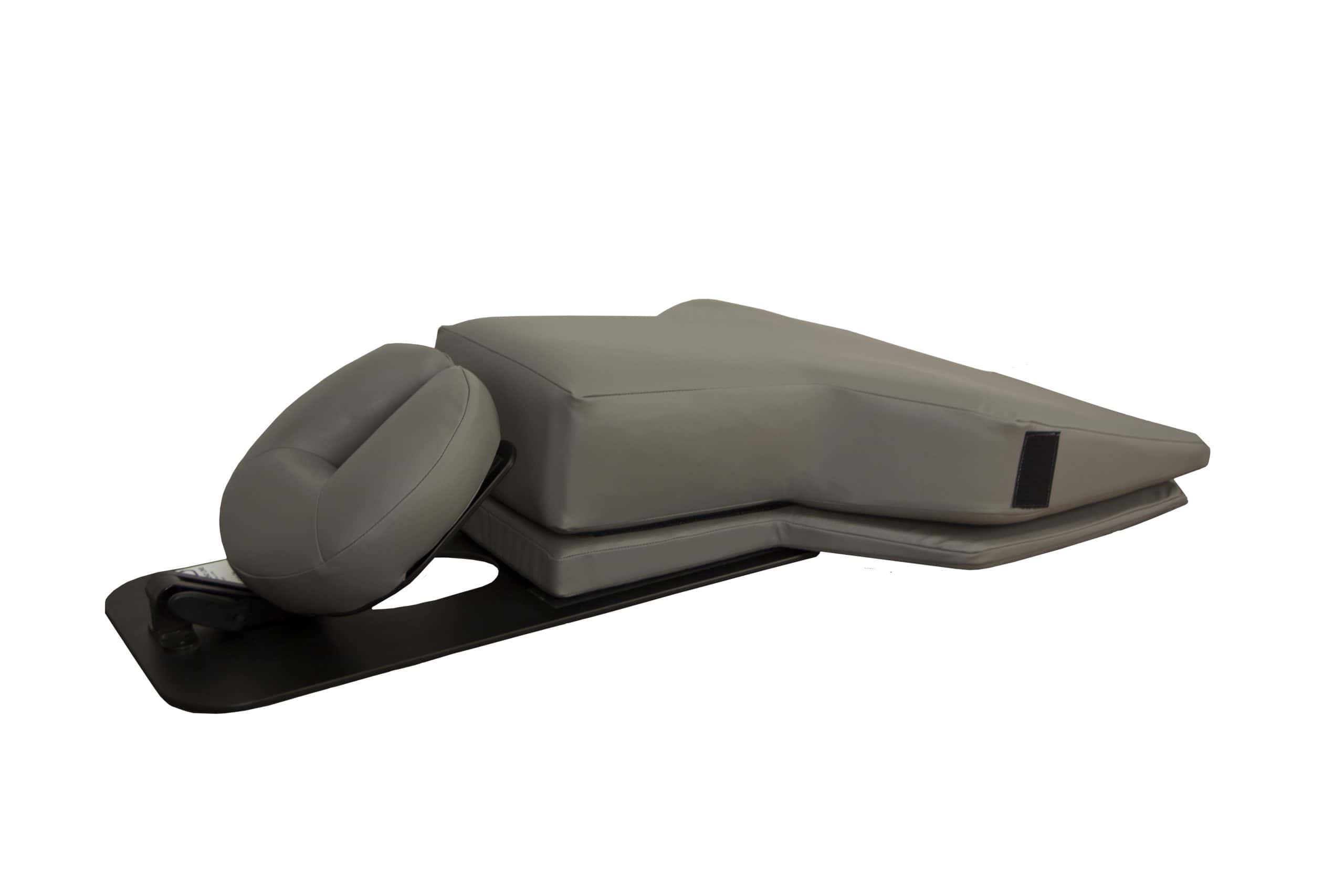

Oakworks Spine Positioning System II.  This Spine Positioning System is an integral component of the pain management suite.  With this system procedural set time is reduced, patient comfort is enhanced and movement is minimized.  Most importantly, the target anatomy is more readily visualized which allows the physician to perform spine procedures in a more efficient and secure manner.

Additional Features & Benefits:  The Oakworks Spine Positioning System II improves visualization of the necessary anatomic landmarks for safe and accurate spinal injections and also solves imaging, stability, and patient comfort issues associated with spine procedures.  The design provides greater visualization of the cervical, thoracic, and lumbar spine including the cervicothoracic junction regardless of the patient’s body habits.

Spine Positioning System II Includes:  Oakworks Spine Positioning System includes an 8-piece kit that comes with a portable case for clean transport and storage.   FDA Listed, CE Marked, and comes with a 2 Year Warranty.  Available in Black only.  See tabs for more information.

Are you looking for a different type or feature?   Click the following link to view additional Patient Positioning Devices to meet your needs.

In addition, we also offer Power Tables and Chairs, click the following link to browse Venture Medical’s Complete Catalog of Exam, Treatment, and Procedure Power Tables, & Chairs.

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

  • An integral component of the pain management suite
  • Improves visualization of the necessary anatomic landmarks for safe and accurate spinal injections
  • Solves imaging, stability, and patient comfort issues associated with spine procedures
  • The design provides greater visualization of the cervical, thoracic, and lumbar spine including the cervicothoracic junction regardless of the patient’s body habitus
  • Radiolucent Frame has one cam lock which facilitates cervical flexion and extension
  • Adequate free space under see-through face section for aeration, supplemental O2, and jaw/face
  • Prevents patient overheating and enables easier communication with the patient without sound muffling
  • 8-piece kit that comes with a portable case for clean transport and storage
  • FDA Listed, CE Marked
  • Weight: 16 lbs
  • Frame with face rest (1): 12″ x 32.5″
  • Crescent Face Pad (1): 12″  diameter
  • Contoured Torso Support Pad: 6.5″ x 23″ x 30″
  • Contoured Torso wedge: 2″ x 22″ x 29″
  • Large Adjuster Pad: 8″ x 22″ x 2″
  • Small Adjuster Pad: 7″ x 12″ x 1.5″
  • 8″ semi-round Ankle Bolster: 6″ x 8″ x 26″
  • Frame: Radiolucent
  • Padding: Medical Grade
  • Upholstery: TerraTouch™ (Coal is the standard color)
  • Warranty: Frame, Fabric, Padding – 2 years
  • Regulatory: FDA listed, CE marked
  • P/N: 70100-T01

Available Color: Spine Positioning System II available in “Coal” TerraTouch™ Upholstery only.

Please Note: Upholstery color will vary with individual monitor settings and capabilities.

Oakworks

Oakworks Spine Positioning System II Brochure

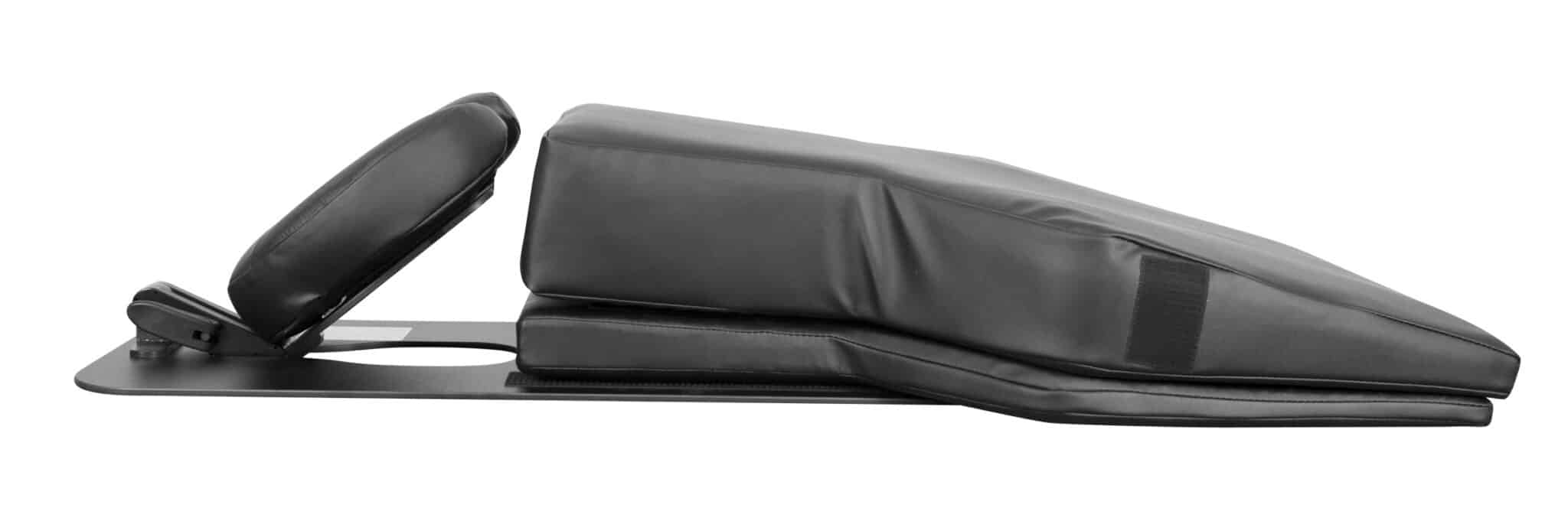

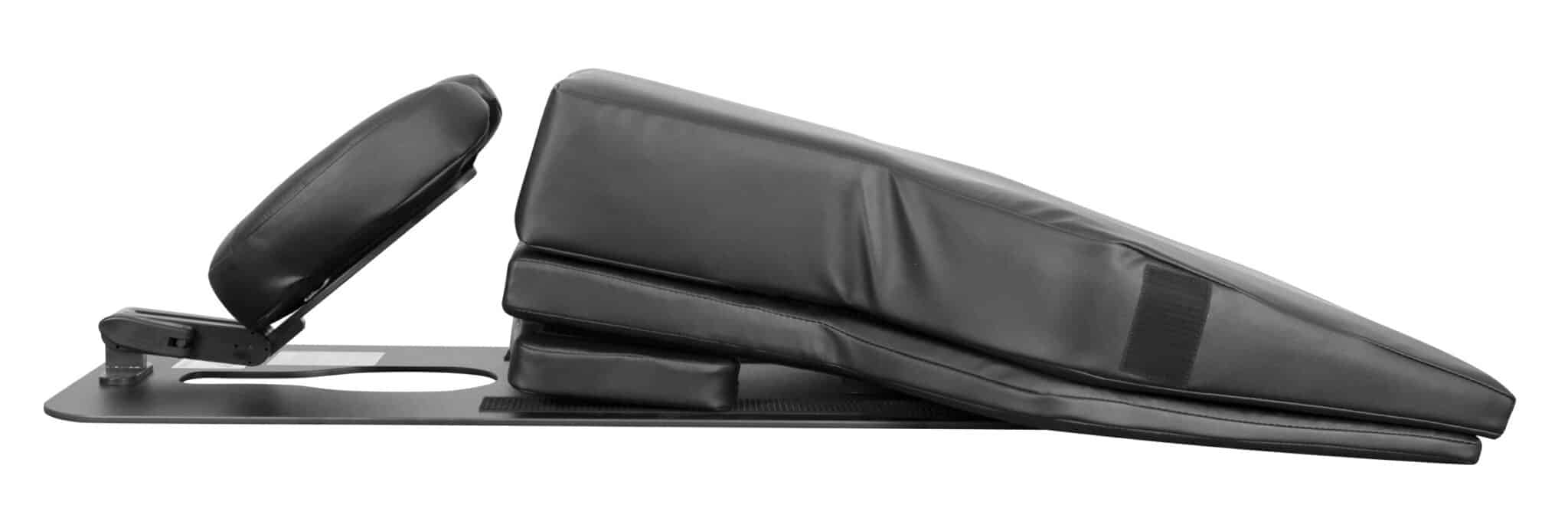

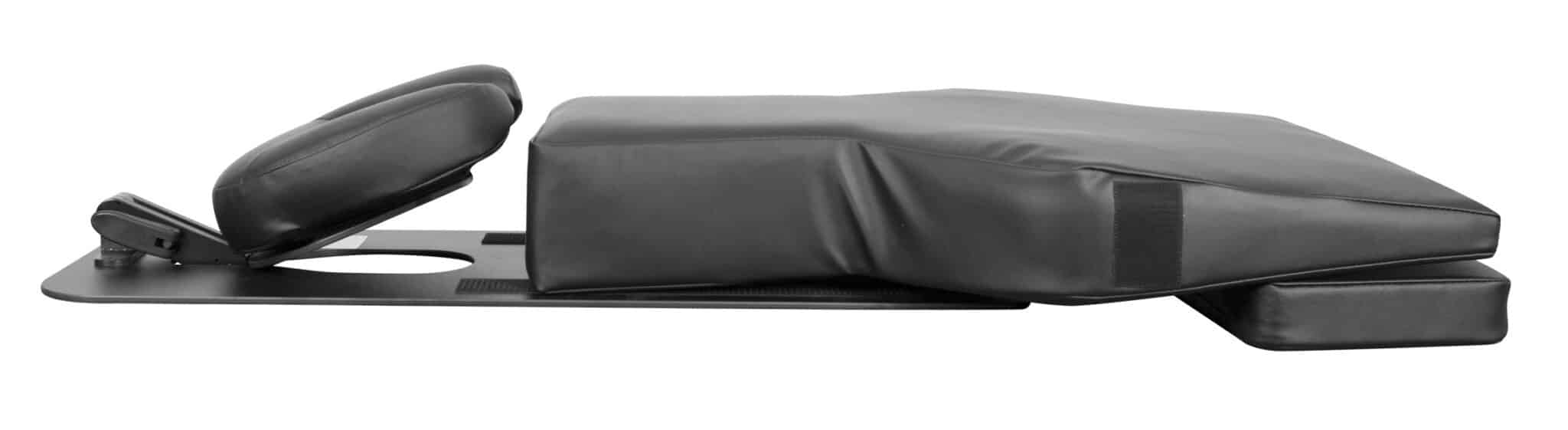

Note: For more details, scroll over the images.
