Oakworks CFPMB301 Imaging Table | Bariatric Rectangular Top

product ID VM-E08M57110

If you need the Oakworks CFPMB301 Imaging Table Bariatric Rectangular Top you don’t need to look any further. Give us a call or request a quote and let us help you.

Add to wishlist
Add to quote
SKU: VM-E08M57110 Category:

If you need the Oakworks CFPMB301 Imaging Table Bariatric Rectangular Top you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

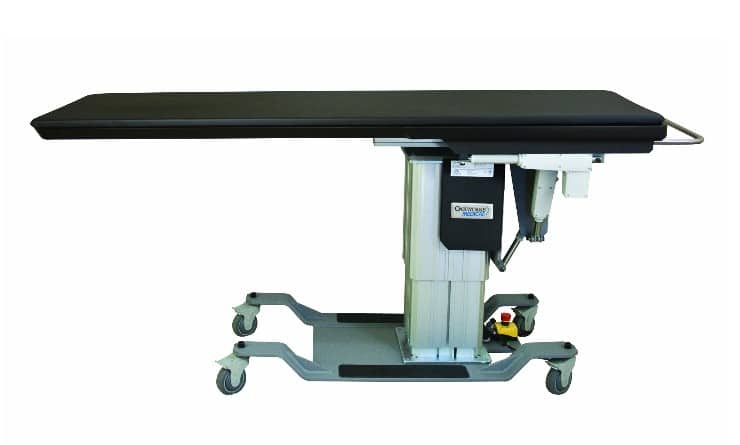

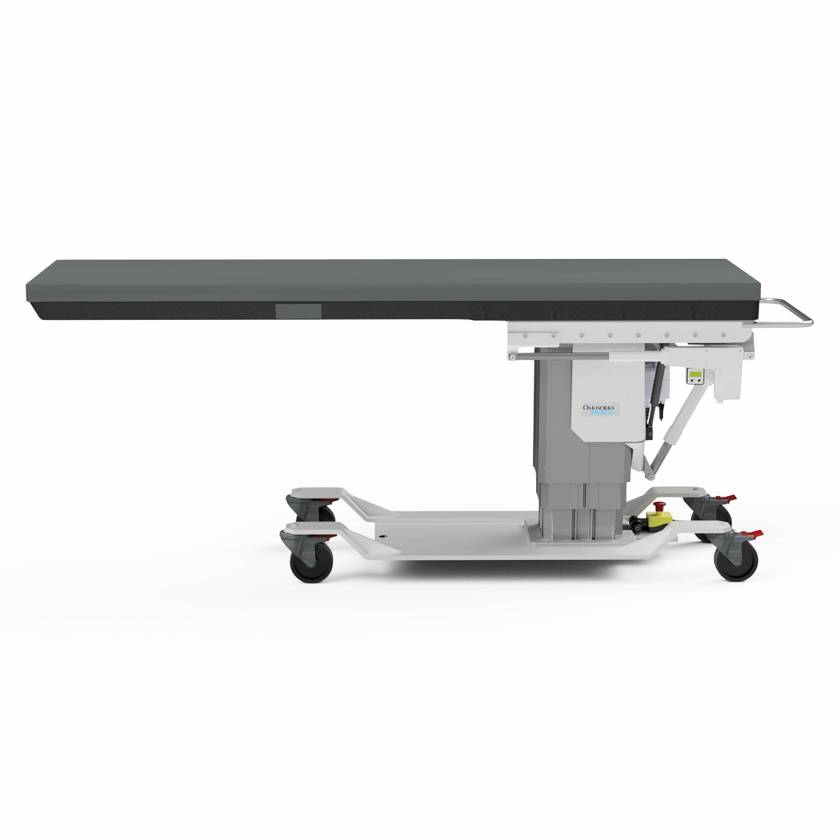

Oakworks CFPMB301 Bariatric Rated Imaging Table with Rectangular Top:  The Oakworks brand Incorporates a reputation for high quality and reliability.  The CFPMB301 features 3 Powered Motions: Height, Trendelenburg Tilt,  and Longitudinal Travel.   The Patient’s Weight Capacity is 750 lbs.  The CFPMB301 has the industry’s Lowest Adjustable Height Range!

Dynamic Powered Height Range: The CFPMB301 Imaging Table’s Wide Powered Height Range of 26″ to 44″ accommodates low-height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging.

Additional Powered Movements:

  • +15/-11° Trendelenburg Tilt
  • 10″ Longitudinal Travel

The CFPMB301 has 56″ of metal-free imaging area, and a 24″ x 80″ Rectangular Top.  See tabs for more information.

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’.

To view additional Power Tables and Chairs, click the following link to browse Venture Medical’s Complete Catalog of Exam, Treatment, and Procedure Power Tables, & Chairs.

  • Rectangular Top
  • Patient Weight Capacity: 750 lbs
  • 3 Powered motions – Bariatric Rated
  • Motion 1: Height Range 26 inches – 44 inches (66-109 cm) without pad
  • Motion 2: Trendelenburg Tilt +15/-11°
  • Motion 3: Longitudinal Travel 10″ (25 cm)
  • Industry’s Lowest Adjustable height Range of 26.5″ to 44.5″
  • 1″ Radiolucent  Table Top Pad
  • 56″ of Metal-Free Imaging Area
  • Patient Safety Strap
  • Heavy Duty 5″ Casters
  • 1 Hand Control: All Motions
  • Warranty
  • Certifications: FDA listed, cELT approved, CE marked
  • Patient Weight Capacity: 750 lbs
  • Rectangular Bariatric Top 24″ W x 80″ L with 52.5″ metal-free imaging space
  • Motion 1: Height Range 26″ – 44″ (without pad)
  • Motion 2: Trendelenburg Tilt: +15º/11º
  • Motion 3: Lateral Tilt: ±15°
  • Controls, 1 each: Foot (all movements) and Hand (all movements)
  • Patient Safety Strap: 84″ L with 24″ of Velcro® at each end
  • Table Top Pad: 1″ Radiolucent Table Top Pad
  • Table Weight: 475 lbs.
  • Warranty: 3 years parts, 2 years labor
  • P/N: 65748-T01

Oakworks CFPMB301 Brochure (click to view)

Oakworks CFPM301 Video  (click to view)

Available Options Sold Separately:

  • 6″ Adjustable T-Rail Clamp
  • 2″ Radiolucent Table Top Pad

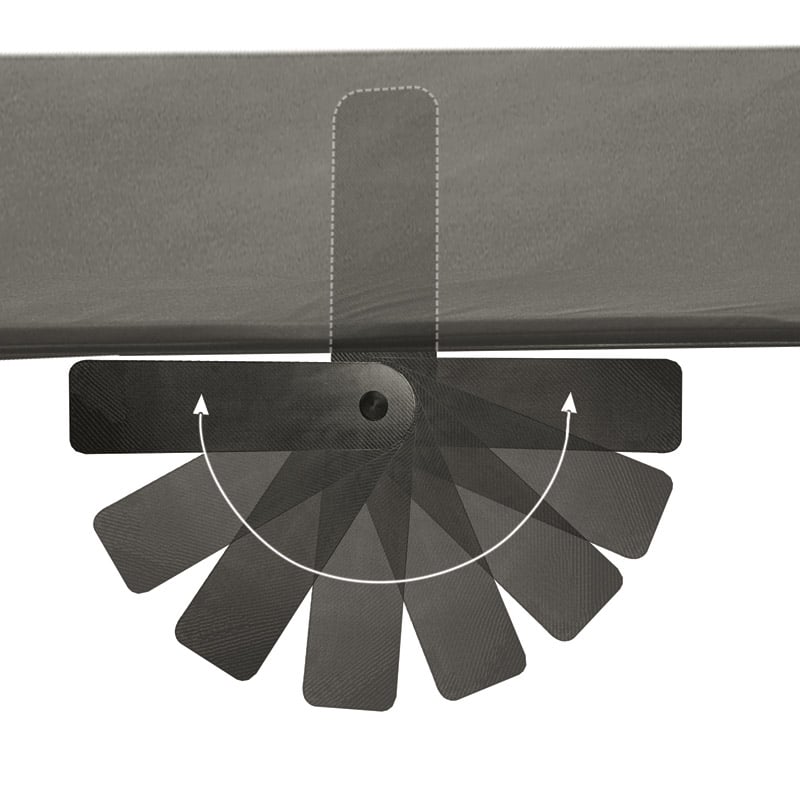

  • Carbon Fiber Armboard (shown below left)

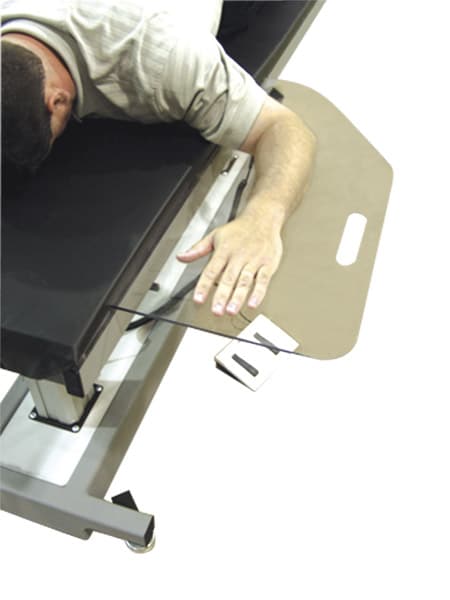

  • Fluoro Extender (shown below right, scroll over image for lower extremity application)
  • Foot Control

Carbon Fiber Armboard      Fluoro Extender
