Oakworks CFPM400 Imaging Table w/Rectangular Top

product ID VM-E08M57106

If you need the Oakworks CFPM400 Imaging Table w/Rectangular Top you don’t need to look any further. Give us a call or request a quote and let us help you.

SKU: VM-E08M57106 Category:

If you need the Oakworks CFPM400 Imaging Table w/Rectangular Top you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

The OAKWORKS® CFPM400 Imaging Table.  The Oakworks CFPM400 Imaging Table w/Rectangular Top incorporates Oakworks’ brand reputation for high quality and reliability in this new and also cost-effective table. The CFPM400 is designed to accommodate mobile and ceiling-suspended C-Arm systems. The Oakworks CFPM400 is a 4-movement table that simultaneously has all the features required for successful pain management image-guided procedures.

CFPB400 Features: The Carbon Fiber Top has a dynamic height range of 26″ to 43″ and accommodates low-height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging.

Motions:

  • 10″ of Powered Longitudinal Travel (extend/retract)
  • 15° Trendelenburg Tilt, 12° Reverse Trendelenburg
  • 15° of Lateral Tilt, while at the same time supporting up to a 500-pound patient.

The table is mounted on a new low-profile base and can be easily moved from room to room and secured with 4 locking casters.

Items Included:

  • radiolucent tabletop pad
  • 1 crescent face rest pad
  • 2 supine cranial pads
  • 1 padded safety strap

The table promotes 56″ of Metal-Free Imaging Area for maximum C-Arm efficiency and is controlled by 1 hand control. Ideal for pain management practices, surgical centers, hospitals, as well as multi-disciplinary medical facilities. The table is also compatible with all major C-arm products. Cost-effective solution for all C-Arm imaging applications… you will NOT find a better value on the market today! See tabs for more information.

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’.

To view additional Power Tables and Chairs, click the following link to browse Venture Medical’s Complete Catalog of Exam, Treatment, and Procedure Power Tables, & Chairs.

  • Designed to accommodate mobile and ceiling-suspended C-Arm systems
  • The CFPM400 is a 4 Powered Movement Table
  • Superior image quality for fluoroscopy-guided procedures
  • All the features required for successful pain management image-guided procedures
  • height range of 26″ to 44″
  • Rectangular Top
  • Accommodates low-height patient wheelchair transfers
  • Carbon fiber top
  • 10″ (25 cm) of Powered Longitudinal Travel
  • +15°/-11° Trendelenburg Tilt
  • 12° Reverse Trendelenburg
  • 15° of Lateral Tilt
  • Weight Capacity: 500 lbs (227 kg).
  • New low-profile base
  • Easily moved from room to room
  • Secured with 4 locking casters
  • Promotes 56″ of the metal-free imaging area
  • Controlled by, hand control
  • Kill Switch (see close-up below right)
  • Warranty

Included with Table:

  • Radiolucent Table Top Pad
  • 1 Crescent Face Rest Pad and 2 Supine Cranial Pads: (see below left)
  • 1 Padded Safety Strap

Crescent Face Rest Pad and 2 Supine Cranial Pads       Oakworks Kill Switch

  • 22″ x 84″ Carbon Fiber Top with integrated headrest
  • 56″ of metal-free imaging space
  • Patient weight: 500 lbs (226 kg)
  • Height Range: 26″ – 43″ (66-109 cm)
  • Electronics: 110-volt motor + 2x24v Tilting Motors (1) foot control (1) Hand Control)
  • 1 Power Kill Switch
  • Locking Casters
  • Hand Rail Table Weight: 415 lbs (188 kg)
  • Frame: Single tower steel base
  • Warranty: 3 years parts, 2 years labor
  • P/N: 65570-T01

Oakworks

Oakworks CFPM400 Brochure (click to view)

Oakworks CFPM400 Video (click to view)

Oakworks CFPM400

Available Options Sold Separately:

  • Sliding Cardio Panel – Electric – 30in. width + left side only
  • Sliding Cardio Panel – Manual – 30in. width + left side only
  • Side Rails (2)
  • Procedure Tray (30″ width table only)

Available Accessories Sold Separately:

  • Carbon Fiber Arm-board, 180 ° articulation, slides under table pad
  • Fluoro Extender, Polycarbonate-205 (shown below center)
  • 8″ x 26″ Semi-Round Bolsters
  • Prone Pillow

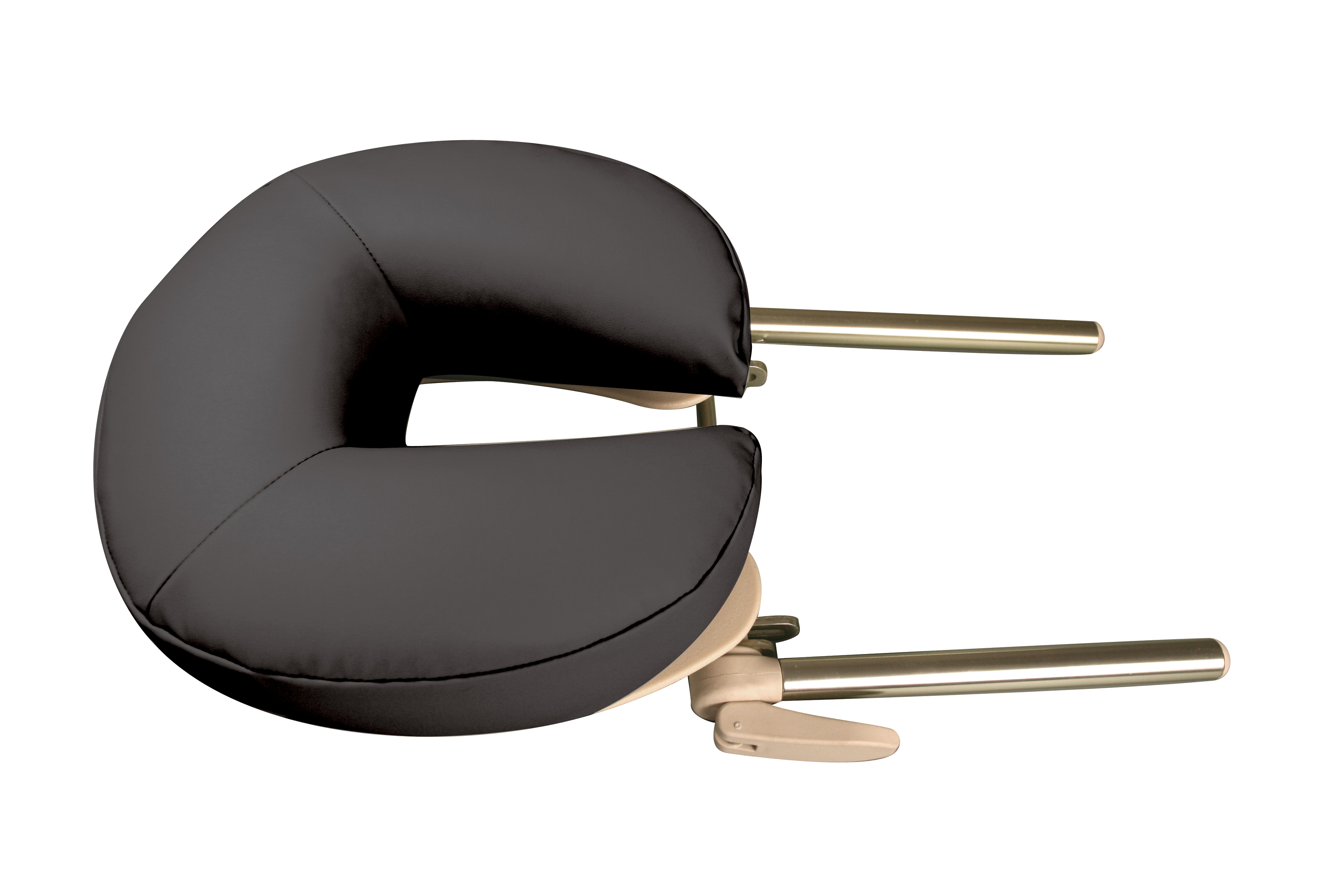

  • Adjustable Face Rest Platform with Memory Foam Crescent (shown below right)
  • Foot Control

Carbon Fiber Arm Board    Fluoro Extender   Adjustable Face Rest
