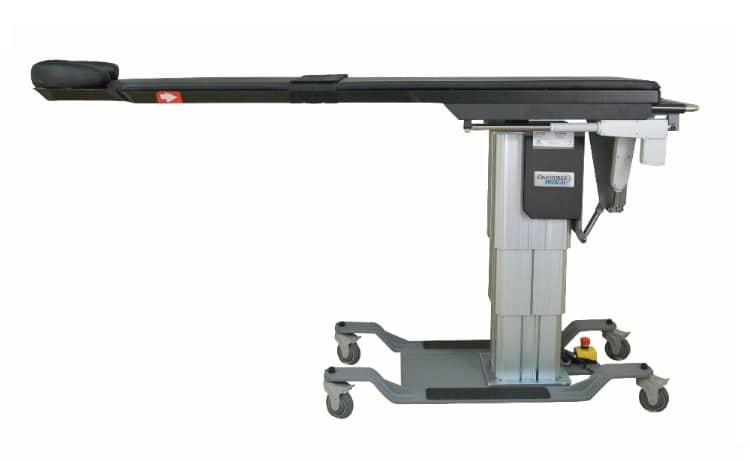

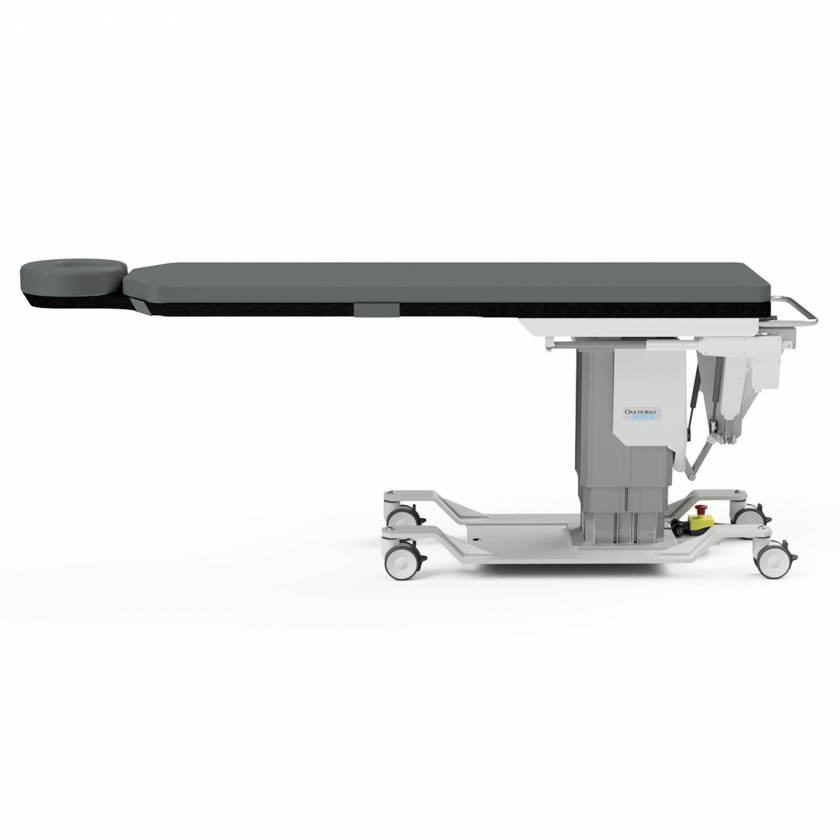

Oakworks CFPM400 Imaging Table: Integrated Headrest Top

product ID VM-E08M57107
SKU: VM-E08M57107 Category:

Product Description:

The OAKWORKS® CFPM400 Imaging Table.  The Integrated Headrest Top incorporates Oakworks’ brand reputation for high quality and reliability in this new, cost-effective table. The CFPM400 is designed to accommodate mobile and ceiling-suspended C-Arm systems. The CFPM400 is a 4-movement table that has all the features required for successful pain management image-guided procedures.

CFPM400 Features:  The Carbon Fiber Top has a dynamic height range of 26″ to 44″ and accommodates low-height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging.   is capable of 10″ of Powered Longitudinal Travel (extend/retract), 15° Trendelenburg Tilt, 12° Reverse Trendelenburg, and 15° of Lateral Tilt, while at the same time supporting up to a 500-pound patient. Exceptional value for a 500 lb patient weight capacity table.  The table is mounted on a new low-profile base and can be easily moved from room to room and secured with 4 locking casters.  Included with every table are a radiolucent tabletop pad, 1 crescent face rest pad, 2 supine cranial pads, and 1 padded safety strap.

The table promotes 56″ of Metal-Free Imaging Area for maximum C-Arm efficiency and is controlled by 1 hand control.  Ideal for pain management practices, surgical centers, hospitals, and other multi-disciplinary medical facilities.  Compatible with all major C-arm products.  Cost-effective solution for all C-Arm imaging applications… you will NOT find a better value on the market today!  See tabs for more information.

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’.

To view additional Power Tables and Chairs, click the following link to browse Venture Medical’s Complete Catalog of Exam, Treatment, and Procedure Power Tables, & Chairs.

CFPM400 Features:

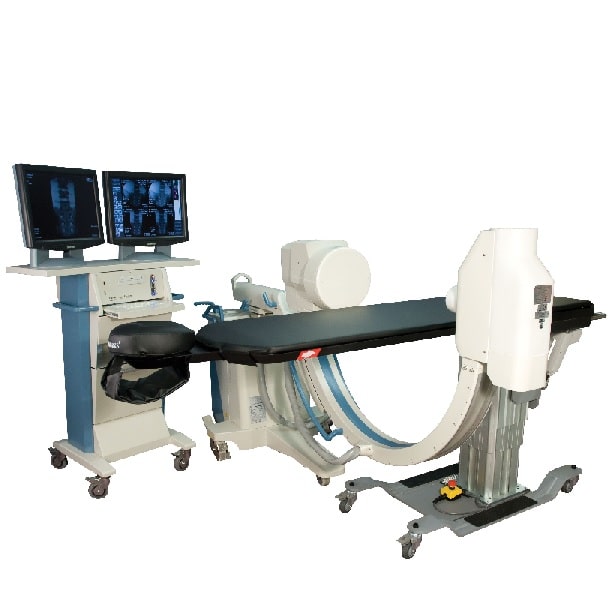

  • Designed to accommodate mobile and ceiling-suspended C-Arm systems
  • The CFPM400 is a 4 Powered Movement Table
  • Superior image quality for fluoroscopy-guided procedures
  • All the features required for successful pain management image-guided procedures
  • height range of 26″ to 44″
  • Accommodates low-height patient wheelchair transfers
  • Carbon fiber top
  • 10″ of Powered Longitudinal Travel
  • 15° Trendelenburg Tilt
  • 12° Reverse Trendelenburg
  • 15° of Lateral Tilt
  • Weight Capacity: 500 lbs
  • New low-profile base
  • Easily moved from room to room
  • Secured with 4 locking casters
  • Promotes 56″ of the metal-free imaging area
  • Controlled by 1 hand control

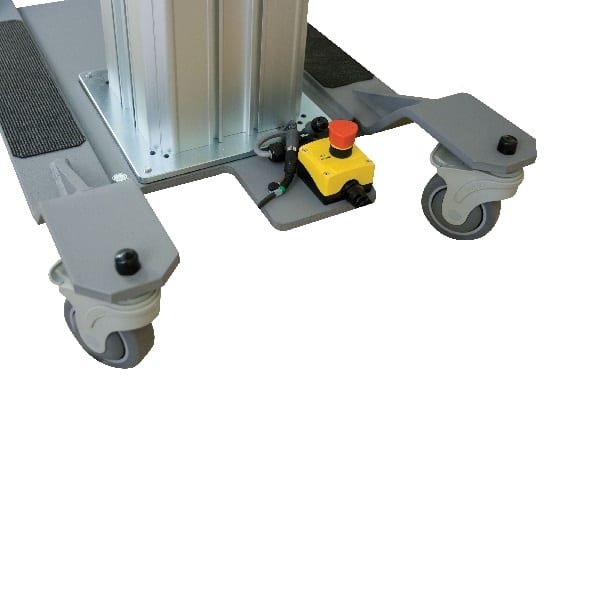

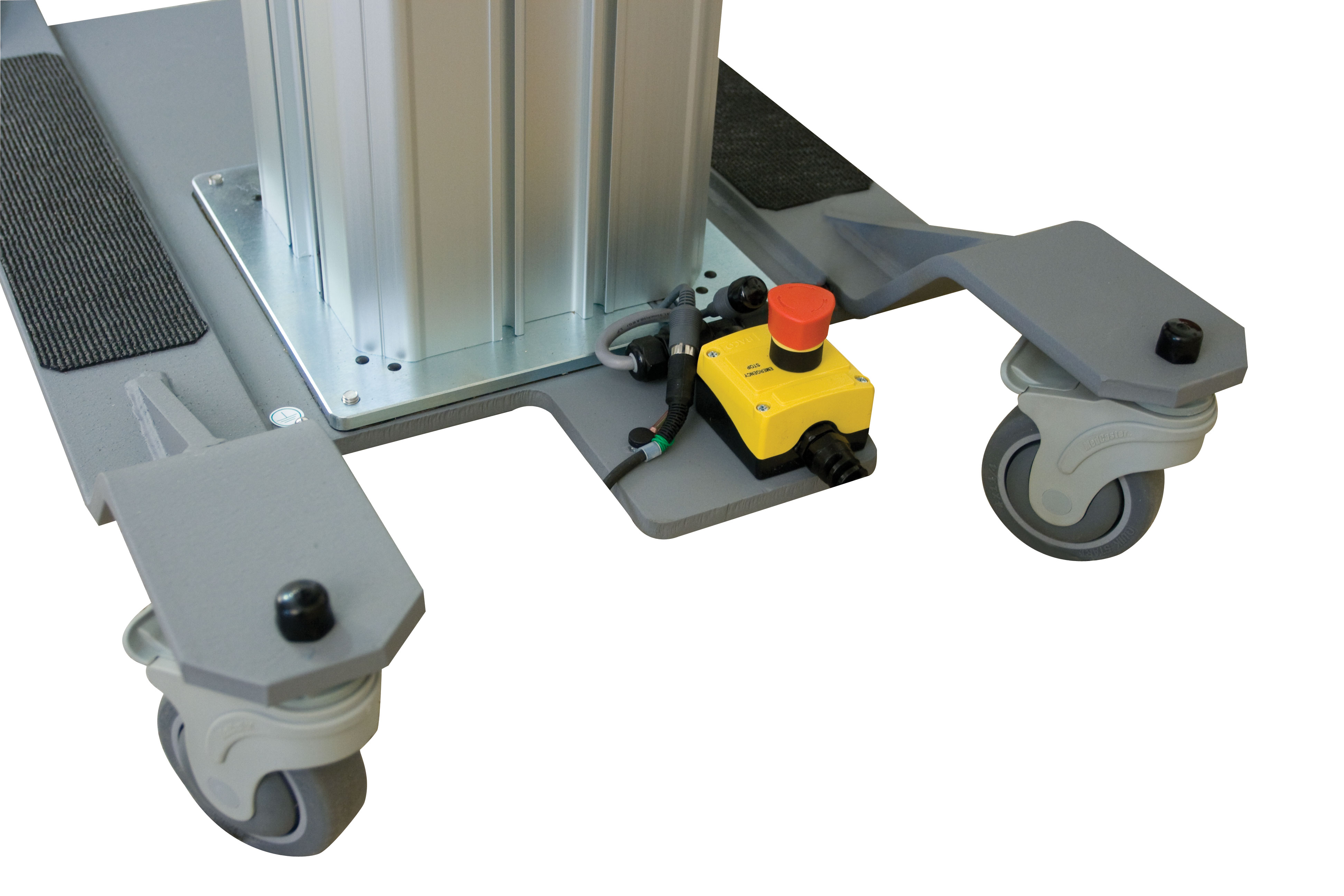

  • Kill Switch (see close-up below right)
  • Warranty

Included with Table:

  • Radiolucent Table Top Pad

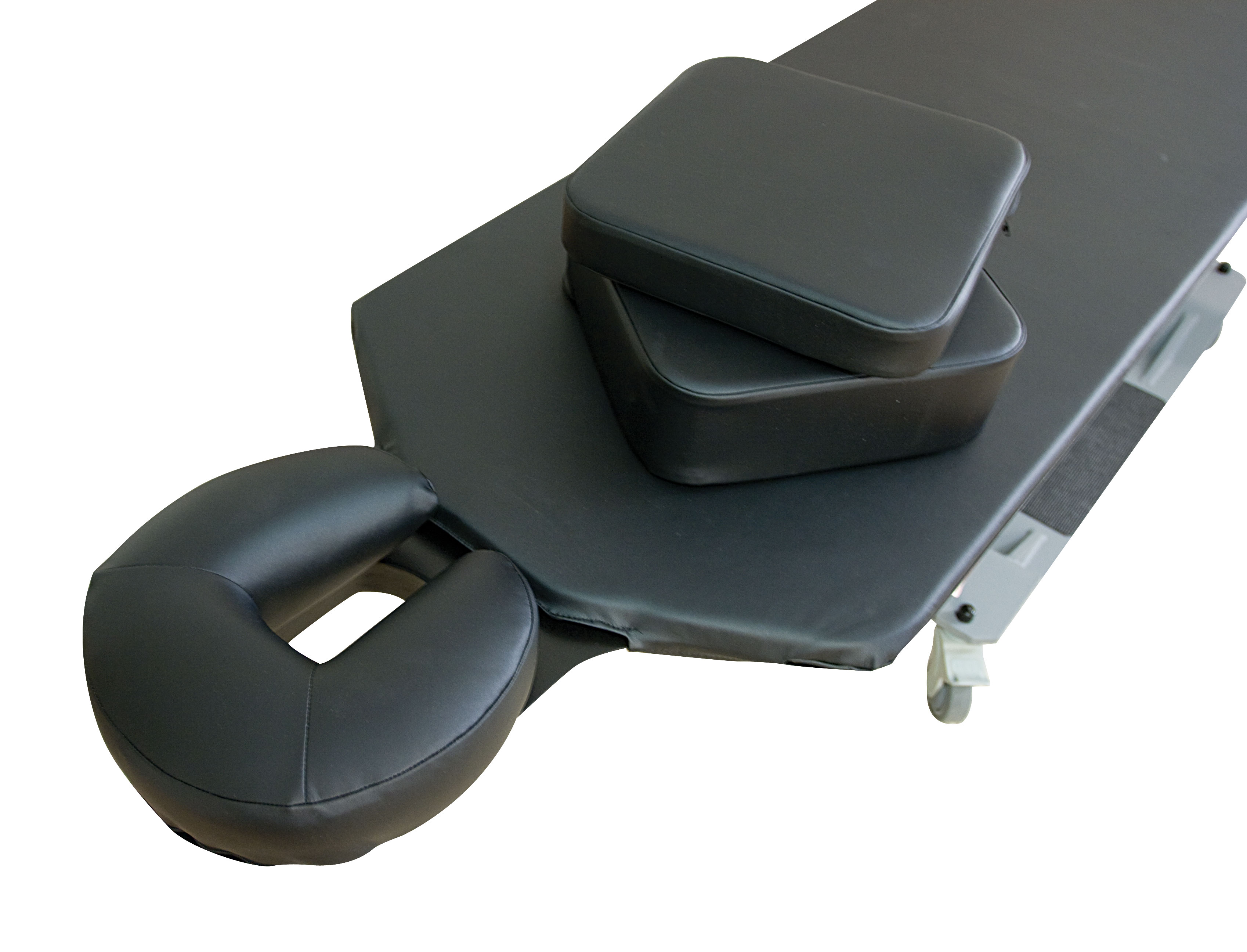

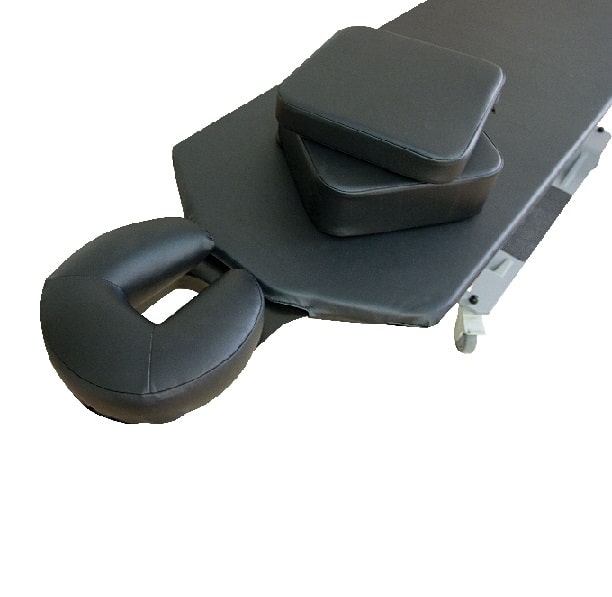

  • 1 Crescent Face Rest Pad and 2 Supine Cranial Pads: (see below left)
  • 1 Padded Safety Strap
  • 22” x 84” Carbon Fiber Top with integrated headrest
  • 56″ of metal-free imaging space
  • Patient weight: 500 lbs (226 kg)
  • Height Range: 26″ – 44″
  • Electronics: 110-volt motor + 2x24v Tilting Motors (1-foot control and 1-hand Control)
  • 1 Power Kill Switch
  • *Locking Casters
  • Hand Rail Table Weight: 415 lbs (188 kg)
  • Frame: Single tower steel base
  • Warranty: 3 years parts, 2 years labor
  • P/N: 65447-T01
