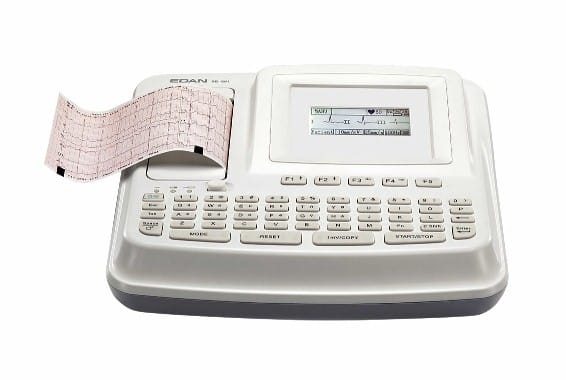

Edan SE-601A 6-Channel ECG

product ID VM-ESE601A-N
SKU: VM-ESE601A-N Category:

Product Description:

Edan SE-601A 6-Channel ECG.   Given the high demand within the United States, EdanUSA was formulated in 2009 to offer local service and support for U.S. sales. All of our products come with a three-year manufacturer’s warranty. Our goal is to offer high-quality diagnostic equipment that improves the quality of patient care, with customer pricing 30% X 40% less than that of major U.S. competitors.

Edan SE-601A 6-Channel ECG Features: Six-channel ECG SE-601 series: SE-601A, SE-601B, SE-601C, cost-effective solutions including hospital wards, routine checks, home visits, and emergency cases. Features include a Screen – 3.5 inch STN LCD, 192*64 dots, Internal storage with a capacity of 50 ECGs, Interpretation, and Internal Speaker/Buzzer.  The SE-601A is FDA Approved, Heart rate variability (HRV) & R to R Trending analysis, Portable, lightweight design, and easy data input and operation.  It also features an Alphanumeric keyboard and one-touch operation, a built-in rechargeable battery, AC/DC power supply, and Pacemaker detection, which meet the requirements of ANSI/AAMI EC11.  The SE-601A also has Automatic analysis and diagnostic software for adults and pediatrics, a Two-step exercise test with periodic recording, an Internal thermal printer, and an external printer.  Support external archiving: USB flash disk, card reader.  Data transmission to PC via Ethernet or serial port.  See tabs for more information.

Do you have questions? We have answers! Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

To view a wide variety of EKG Units, click the following link to browse automatic autoclaves and distillers, manual autoclaves, and ultrasonic cleaners: Venture Medical’s Complete Catalog of EKG Units.

FEATURES:

  • FDA Approved
  • Heart rate variability (HRV) & R to R Trending analysis
  • Portable, lightweight design
  • Easy data input and operation
  • Alphanumeric keyboard and one-touch operation
  • Built-in rechargeable battery, AC/DC power supply
  • Pacemaker detection which meets the requirements of ANSI/AAMI EC11
  • Automatic analysis and diagnostic software for adults and pediatrics
  • Two-step exercise test with periodic recording
  • Internal thermal printer and external printer
  • Support external archiving: USB flash disk, card reader
  • Data transmission to PC via Ethernet or serial port
  • 2 year extended warranty is available

INCLUDES:

  • ECG Cable (4 mm, banana connector, AHA) 01.57.471017 – 1
  • Bio ProTech Resting Tab Electrodes – 100
  • Unomedical 10-Lead Universal Clips – 10
  • Recording Paper (Z-fold, 110 mm x 140 mm x 144P) – 1
  • Power Cord (USA Hospital Grade) – 1
  • Rechargeable Lithium Battery (2200 mAH) M21R-064114 – 1
  • Fuse (T400mA, USA standard) – 2
  • 8 N/A User Manual – 1
  • 9 N/A Quick Reference Card –  1

For Complete Specifications & Brochure:

Available Options Sold Separately:

ECG Cable/Adapters/Electrodes:

  • 01.57.110375 ECG Cable (4 mm, banana connector, AHA) 01.57.471017: $199
  • 01.57.107584 ECG Cable (Grabber Style, AHA): $210
  • 20100-4 MM-SNAP ECG patient cable Adapter. Converts 4mm banana plug into SNAP connector. 6″ in length. Comes in Set of (10): $50
  • PT-2334 Bio ProTech ADULT Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable TAB Type for Resting EKG’S) $55
  • T718 Bio ProTech PEDIATRIC Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable Foam/Button Style for Pediatric) $149
  • T716-50 Bio ProTech ADULT Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable FOAM/BUTTON Type for EKG’S) $149
  • 01.57.040163 Adult Reusable Suction Electrodes (6 PCS/set, 4 mm ECG cable) $49
  • 01.57.040162-12 Adult Limb Clamp Electrodes (4 PCS/set, 4 mm ECG cable) $49
  • 01.57.040168 Children Reusable Suction Electrodes (6 PCS/set, 4 mm ECG cable) $49
  • 01.57.040169 Children Limb Clamp Electrodes (4 PCS/set, 4 mm ECG cable) $49

Other Software Functions & Accessories:

  • SE-601P Recording paper (Z-fold, 110 mm x 140 mm x 144 P) Sold (10) packs to a BOX: $70
  • 01.13.036092 Power Cord (UK standard): $10
  • 01.13.036106 Power Cord (USA, Hospital-Grade): $15
  • 21.21.064149 Rechargeable Lithium Battery (2200 mAH): $195
  • PC_Viewer Edan PC Viewer Smart ECG (USB Sentinel) with RS232 to USB Adapter and Edan PC Viewer Software: $350
  • MT-207 Center Pole Trolley (roll stand) with Basket and locking Casters (28 lbs 29″ x 22″ x 9″). Includes mounting plate: $375
  • Plate_EdanECG Edan ECG mounting plate for MT-207. 02.04.240030: $55
  • 01.56.110351 ECG Carrying Bag:$100
  • A 2-year extended warranty is available for $299
