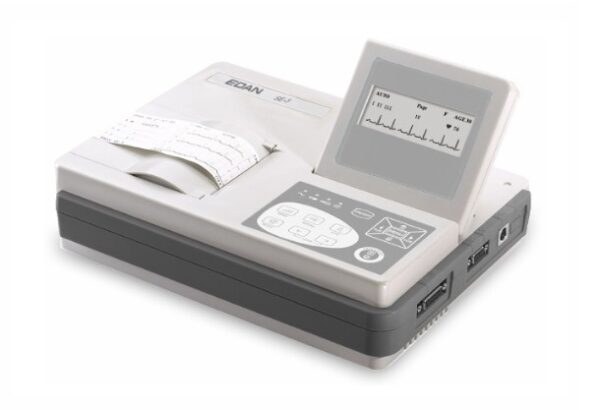

Edan SE-3 ECG (Narrow Screen): SE-3A

product ID VM-ESE3A-N
Add to wishlist
Add to quote
SKU: VM-ESE3A-N Category:

Product Description:

Edan SE-3A ECG (Narrow Screen). Given the high demand within the United States, EdanUSA was formulated in 2009 to offer local service and support for U.S. sales. All of our products come with a three-year manufacturer’s warranty. Our goal is to offer high-quality diagnostic equipment that improves the quality of patient care, with customer pricing 30%—40% less than that of major U.S. competitors.

Edan SE-3A ECG (Narrow Screen) Features: Smart ECG SE-3 series are high-quality, affordable, three-channel ECG units. The compact and light design makes it portable for any work situation.  A fold-able LCD screen with waveform display and configurable parameters, a high-resolution thermal printer, and a built-in rechargeable lithium battery with AC/DC power supply are also available.  A well-designed membrane keyboard, Multi-languages select-able, Data transportation to PC via RS232/Ethernet port USB Interface for patient data transportation, and is Compatible with an external printer for 12 leads simultaneous printing.

Complete digital filtering, avoiding baseline drift, AC, EMG interference, and Automatic baseline adjustment to optimize printing position.  Copy mode for additional copies of the latest auto-tested ECG.  It also features lead-off detection and alert, selectable report formats: auto, manual, rhythm, and HRV analysis, as well as interpretation tested with an authoritative CSE database, which is available as an option and sold separately.  See tabs for more information.

Do you have questions? We have answers! Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

To view a wide variety of EKG Units, click the following link to browse automatic autoclaves and distillers, manual autoclaves, and ultrasonic cleaners: Venture Medical’s Complete Catalog of EKG Units.

FEATURES:

  • High-quality and affordable three-channel ECG unit
  • The compact and light design makes it portable for any work situation
  • A fold-able LCD screen with waveform display and parameters configurable
  • High-resolution thermal printer
  • Built-in rechargeable lithium battery, AC/DC power supply
  • Well-designed membrane keyboard
  • Muti-languages select-able
  • Data transportation to PC via RS232/Ethernet port
  • USB Interface for patient data transportation
  • Compatible with an external printer for 12 leads simultaneous printing
  • Complete digital filtering, avoiding baseline drift, AC, EMG interference
  • Automatic baseline adjustment to optimize the printing position
  • Copy mode for additional copies of the latest auto-tested ECG
  • Lead-Off detection and alert
  • Selectable report formats: auto, manual, rhythm, and HRV analysis
  • Interpretation tested with authoritative CSE database (option)

INCLUDES:

  • ECG Cable (4 mm, banana connector, AHA) 01.57.471017 – 1
  • Bio ProTech Resting Tab Electrodes – 100
  • Unomedical 10-Lead Universal Clips – 10
  • Recording Paper (Roll, 80 mm x 20 m) – 1
  • Paper Roller  – 1
  • Power Cord (USA Hospital Grade) – 1
  • Rechargeable Lithium Battery (2200 mAH) M21R-064114 – 1
  • Fuse (T400mA, USA standard) – 2
  • User Manual – 1
  • Quick Reference Card – 1

For Complete Specifications & Brochure:

Available Options Sold Separately:

ECG Cable:

  • 01.57.471017-11 ECG Cable (4 mm, banana connector, AHA) 01.57.110375: $199
  • 01.57.107584 ECG Cable (Grabber Style, AHA): $210

ECG Adapters:

  • 20100-4 MM-SNAP ECG patient cable Adapter. Converts 4 mm banana plug into SNAP connector. 6″ in length. Comes in Set of (10): $50

Disposable ECG Electrodes:

  • PT-2334 Bio ProTech ADULT Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable TAB Type for Resting EKG’S): $55
  • T718 Bio ProTech PEDIATRIC Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable Foam/Button Style for Pediatric): $149
  • T716-50 Bio ProTech ADULT Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable FOAM/BUTTON Type for EKG’S): $149

Reusable ECG Electrodes:

  • 01.57.040163 Adult Reusable Suction Electrodes (6 PCS/set, 4 mm ECG cable): $49
  • 01.57.040162-12 Adult Limb Clamp Electrodes (4 PCS/set, 4 mm ECG cable): $49
  • 01.57.040168 Children Reusable Suction Electrodes (6 PCS/set, 4 mm ECG cable): $49
  • 01.57.040169 Children Limb Clamp Electrodes (4 PCS/set, 4 mm ECG cable): $49

Recording Paper:

  • SE-3P Recording Paper (Roll, 80 mm x 20 m) Sold (10) rolls to a box: $50

Power-Related:

  • 01.13.036092 Power Cord (UK standard): $10
  • 01.13.036106 Power Cord (USA Hospital grade): $15
  • 01.21.064114 Rechargeable Lithium Battery (2200 mAH): $195

Smart ECG Viewer:

  • Edan PC Viewer Smart ECG (USB Sentinel) with RS232 to USB Adapter and Edan PC Viewer Software: $350

Mounting Solution:

  • MT-207 Center Pole Trolley (roll stand) with Basket and locking Casters (28 lbs 29″ x22″ x 9″). Includes mounting plate: $375
  • Edan ECG mounting plate for MT-207. 02.04.240030: $55
  • 1.56.78042 ECG Carrying Bag: $90
