Edan F9 Express “Loaded” Fetal/Maternal Monitor

product ID VM-EF9-N

If you need the Edan F9 you don’t need to look any further. Give us a call or request a quote and let us help you.

SKU: VM-EF9-N Category:

If you need the Edan F9 you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

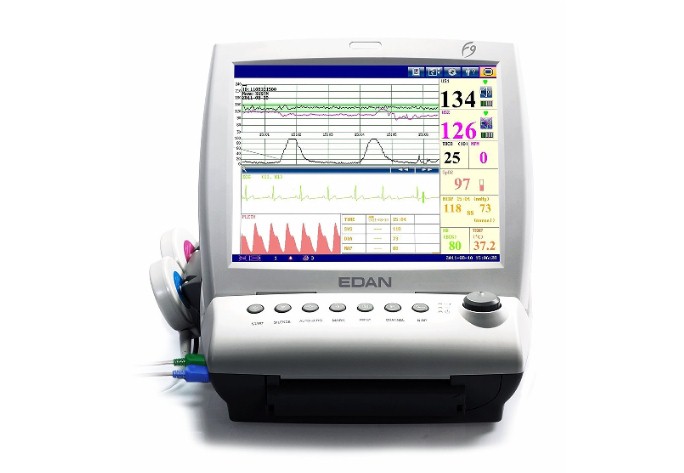

Edan F9 Express “Loaded” Fetal/Maternal Monitor.   F9 is a high-end fetal & maternal monitor; it offers the most advanced integrated monitoring for the delivery room in a big hospital, private obstetrician’s office, and antepartum clinic. F9, designed for moving situations, covers the entire continuum of antepartum, intrapartum, and postpartum applications.

The Edan F9 Express Fetal/Maternal Monitor offers a range of features for enhanced monitoring. It includes basic parameters such as FHR, TOCO, Event Mark, AFM, and internal parameters like IUP and optional DECG. Additionally, it supports 24-hour waveform playback. You can also choose the optional built-in wireless module and software for data transmission to PC. The monitor prints on 150/152 mm wide paper and supports US/International standard paper with real-time printing speeds of 1, 2, or 3 cm/min. Moreover, it quickly prints stored waveforms and operates with a lithium battery for up to 4 hours of continuous use. The 12.1-inch high-resolution color folding LCD touch-screen ensures easy viewing. The monitor also includes a probe rack and a wall mounting rack. Call for our best price today!

  • See tabs for more information.

Do you have questions? We have answers! Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

To view a wide variety of EKG Units, click the following link to browse automatic autoclaves and distillers, manual autoclaves, and ultrasonic cleaners: Venture Medical’s Complete Catalog of EKG Units.

  • Basic parameters: FHR, TOCO, Event Mark, AFM
  • Internal parameters: IUP, DECG (optional)
  • 24-hour waveforms playback
  • Optional Built-in wireless module
  • Software for data transmission to PC
  • 150/152 mm wide paper
  • Support US/International standard paper
  • 1,2,3cm/min real-time printing speeds
  • Quick printing for stored waveform
  • Lithium battery for 4 hours of continuous working
  • 12.1-inch high-resolution color folding-up LCD touch-screen
  • Probe rack and wall mounting rack
  • Handle for easy carry
  • Optional Fetal Stimulator
  • 12 – crystal pulse wave Doppler water-proof transducer for FHR detection
  • Signal Overlap Verification
  • Maternal parameters: MECG, NIBP, and MSpO2 are available
  • Dimensions: 347 mm x 330 mm x 126 mm
  • Weight: Approximately 6 kg
  • Pulse Repetition Rate: 2KHz
  • TOCO Range: 0% – 100%
  • Zero Mode; Automatic/Manual
  • HR Measurement Range: 30 bpm -240 bpm
  • HR Measuring Accuracy: ± 2 bpm
  • Power Supply: 100 – 240 V
  • Battery: 14.8 V rechargeable Li-ion battery
  • Display: 12.1″ color TFT-LCD
  • Display Resolution: RGB 800 W x 600 H
  • DECG Technique: Peak-peak detection technique
  • ECG Manual control ECG Waveform display
  • ECG Falls off: Detect Automatically
  • SpO2 Measurement Range: 50% – 100%
  • Resolution: 1%
  • NIBP (for an adult) Systolic Pressure: 40 mm Hg – 270 mm Hg
  • NIBP (for an adult) Diastolic Pressure: 10 mm Hg – 215 mm Hg
  • Recorder Paper: Z-fold, 150/152 mm thermosensitive paper
  • Recording Speed: 1/2/3 cm/min., 25 mm/sec for history data

Available Options Sold Separately:

  • Optional Built-in wireless module
  • Optional Fetal Stimulator
  • MT-803 Luxury Trolley for F Series Fetal Monitors: $850
  • MT-207 & Plate F6F9 Center Pole Trolley (roll stand) with Basket and locking Casters (shown below): $375

Edan MT-2017 Trolley
