• LED interior lighting casts a comforting blue glow with two (2) different intensity settings, and off-mode
• In the event of a power failure, the cabinet will remember its programming and begin to operate as before when power is restored.  A warming shut-off system, separate from the electronic control, prevents overheating
• The access point and the plug have been added in the back panel to allow the appliance owner to add their data logger or temperature management hardware

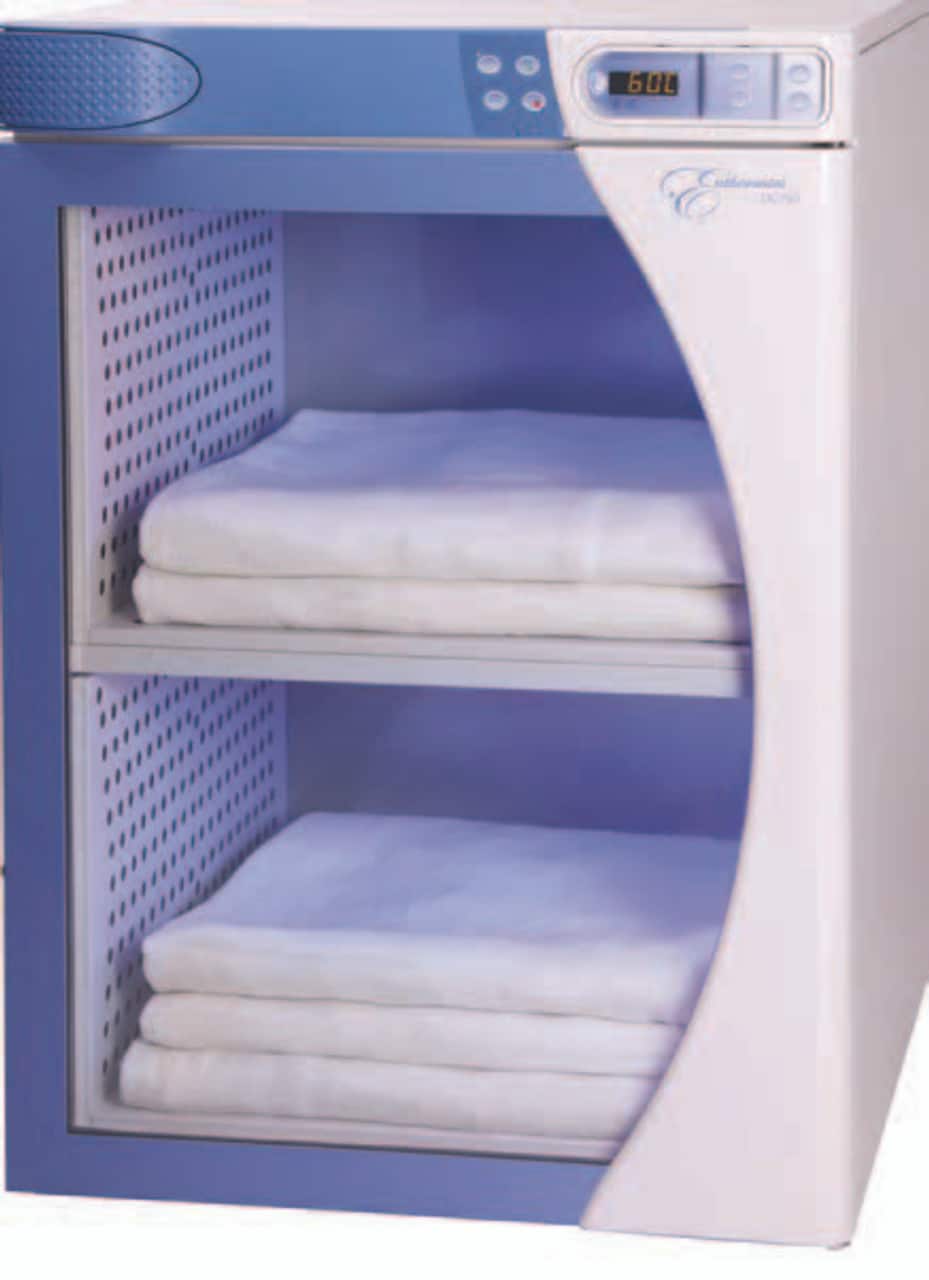

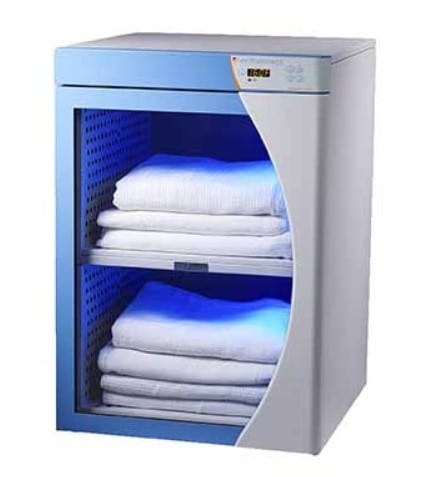

• Single-chamber warming cabinet White epoxy-coated steel exterior casing and interior insert
• Glass Door: Single pane, energy-efficient, e-coated glass window in the door allows for inventory observation and reflects heat into the cavity
• Convenient: The hands-free, push-button door is designed to make loading easier when carrying an armful of blankets
• The door has a full gasket and is hinged on the right side of the unit WarmRight® incorporates a multiple-zone warming technology that heats where and when it is needed
• All chamber surface temperatures are monitored, providing an efficient balance of heat, low energy consumption, and minimal heat loss
• Includes a heated center shelf to further optimize heat distribution throughout the cavity
• Mix and Match: Pair with a Designer Series fluid warming cabinet to complete your patient warming system. Stacks with DC400 fluid and blanket warmers
• Furnished with four (4) 3/4″ non-skid rubber feet.  Mobile: Optional casters or mobile cart available, sold separately

General Specifications:

• Chamber: Single-chamber warming cabinet
• Lighting: LED
• Capacity: 20-25 blankets
• Interior size: 7.5 ft3
• Dimensions: 34.9 in H x 24 in W x 27 in D
• Interior/Exterior: White epoxy-coated steel exterior casing and interior insert
• Window: Single pane, energy-efficient, e-coated glass
• Door Release: Push-button door release
• Door: Has full gasket and is hinged on the right side of the unit
• Warming Zones: Multiple zone warming technology
• Temperature Monitoring: All chamber surface temperatures are monitored
• Furnished with four (4) 3/4″ non-skid rubber feet
• Ambient temperature range of -40° to +70°C
• Relative humidity range of 10% to 95%, non-condensation
• Atmospheric pressure range of 50KPa to 106KPa
• The unit must acclimate to room temperature in the environment it will be placed. 24 hours is recommended
• Recommended environmental temperature range is 15°C to 32°C (60°F to 90°F)
• The recommended relative humidity is above 20%, non-condensation
• Adjustable temperature range of 37 – 82°C (98 – 180°F)
• Operates in Celsius or Fahrenheit
• Four-digit LED display
• On/Off key
• Up and down arrow keys
• Actual temperature key
• Interior light key
• Built-in speaker for audible feedback
• Built-in control button lock-out feature

Transport and storage environmental Conditions (not to exceed 15 days):

• Ambient temperature range of -40° to +70°C
• Relative humidity range of 10% to 95%, non-condensation
• Atmospheric pressure range of 50KPa to 106KPa

Operational environmental Conditions:

• The unit must acclimate to room temperature in the environment it will be placed. 24 hours is recommended
• Recommended environmental temperature range is 15°C to 32°C (60°F to 90°F)
• The recommended relative humidity is above 20%, non-condensation

Control:

• Adjustable temperature range of 37 – 82°C (98 – 180°F)
• Operates in Celsius or Fahrenheit
• Four-digit LED display
• On/Off key
• Up and down arrow keys
• Actual temperature key
• Interior light key
• Built-in speaker for audible feedback
• Built-in control button lock-out feature

Enthermics Designer Series Warming Cabinet Brochure (click to view)

Available Options Sold Separately and all options must be specified at the time of the order.

3” Bumper & Caster Assembly – overall height increases by 5″:

• White epoxy coated – 5017547
• Stainless Steel – 5017549

3” Plate & Caster Assembly – casters (2 casters – rigid, 2 caster – swivel with brake), overall height increases by 5”:

• White epoxy coated – 5017543
• Stainless Steel – 5017545

Caster Assembly – 5″ Casters (4 Swivel; 2 with Brakes), Overall Height Increases By 6.5″:

• 5018646

Door Assembly, Blue epoxy coated without manual door lock is standard:

• Blue epoxy coated with manual door lock (optional)
• Stainless Steel without manual door lock (optional)
• Stainless Steel with manual door lock (optional)

Seismic Mounting Brackets:

• Special installation requirements apply, and overall width increases 2″: 1014403

Stacking Kits:  (It is recommended that fluid warming units be placed at or near the bottom of the stacked configuration whenever possible for maximum stability)

• Double Stacked, White epoxy coated: 5013024
• Double Stacked Stainless Steel: 5017273

Cart :

• Dimensions – 34-1/2″ H x 24″ W x 26″ D: 5018614

Timer Control:

• An optional timer allows the user to program the warmer to automatically turn on and off at a selected time (Available with original order only)
