Tuttnauer EZ9, Fully Automatic Autoclave, Venture Medical Requip

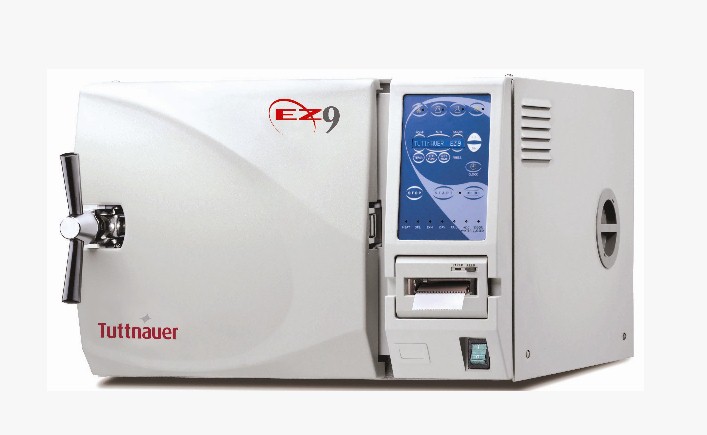

Tuttnauer EZ9 Fully Automatic Autoclave

product ID VM-E23M79119
Add to wishlist
Add to quote
SKU: VM-E23M79119 Category:

Product Description:

Tuttnauer EZ9 Fully Automatic Autoclave with the Simplicity of One Touch Design!  With the simplicity of a one-touch design, all your sterilization and drying needs are fulfilled. The Tuttnauer EZ9 fully automatic autoclave will fill, sterilize, exhaust, and dry at the touch of a button.  Closed-door active drying system to maintain sterility and ensure efficient drying of packs and pouches.

Additional Tuttnauer EZ9 Features Hepa filter 0.2 µm air filter (replaceable). All program parameters can be customized and stored, Automatic shut off at the end of both the sterilization and dry cycles, and Audible and visual cycle interruption alert.  International certifications and comes with a 2-year part and labor warranty.  See tabs for more information.

Wondering about maintaining an autoclave?  Visit our article ‘How to Maintain Your Autoclave’ to learn tips and tricks about medical equipment.

To view a wide variety of Autoclaves & Equipment, click the following link to browse automatic autoclaves and distillers to manual autoclaves and ultrasonic cleaners. Venture Medical’s Complete Catalog of Autoclaves.

  • Closed-door active drying system to maintain sterility and ensure efficient drying of packs and pouches
  • A High-efficiency air pump circulates hot air after the sterilization cycle for fast drying
  • Hepa filter 0.2 µm air filter (replaceable)
  • Pre-loaded cycles for unwrapped instruments, wrapped/packs, glassware, and additional drying cycle
  • All program parameters can be customized and stored
  • Automatic shut off at the end of both the sterilization and dry cycles
  • Audible and visual cycle interruption alert
  • A double safety locking device prevents the door from opening while the chamber is pressurized
  • Low water sensor prevents activation of the sterilization cycle when there is insufficient water in the chamber or reservoir
  • Constant monitoring of temperature and pressure for sterilization
  • Power outage recovery system
  • Door design prevents steam from coming in contact with the control panel
  • Optional internal printer documents: date, time, temperature, and pressure
  • 510k clearance for dental handpieces
  • The drain valve is located on the front, allowing for quick and easy draining of the water reservoir
  • International certifications
  • 2-year parts and labor warranty
  • Chamber Dimensions: 9″ x 18″
  • Chamber Volume: 5 Gallons
  • Overall dimensions: 21.5″D x 20″W x 14.4″D
  • Standard Cassettes Capacity: 2 Full and 2 Half
  • Tray Dimensions: 16.3″D x 6.7″W x 0.8″H
  • Number of Trays: 3
  • Standard Unwrapped Cycle Time: Cold: 27 Min, Hot: 13 Min
  • Voltage: 120V
  • Power: 1400W
  • Autoclave Weight: 95 lbs

Tuttnauer EZ9 & EZ10 Brochure (click to view)

Available Options Sold Separately:

  • Tuttnauer  Internal Printer  (click to view)
  • Printer Paper, Chart Recording Paper (PKG/5): 1610406
  • Instrument Pouch Racks (2 per box) for all 9″ and 10″ chambers: AR910
  • Instrument Pouch Racks (2 per box) for all 15″ chambers: AR920
  • Chamber Brite Autoclave Cleaner (1 case/12 individual boxes of 10 packets each): CB0010
